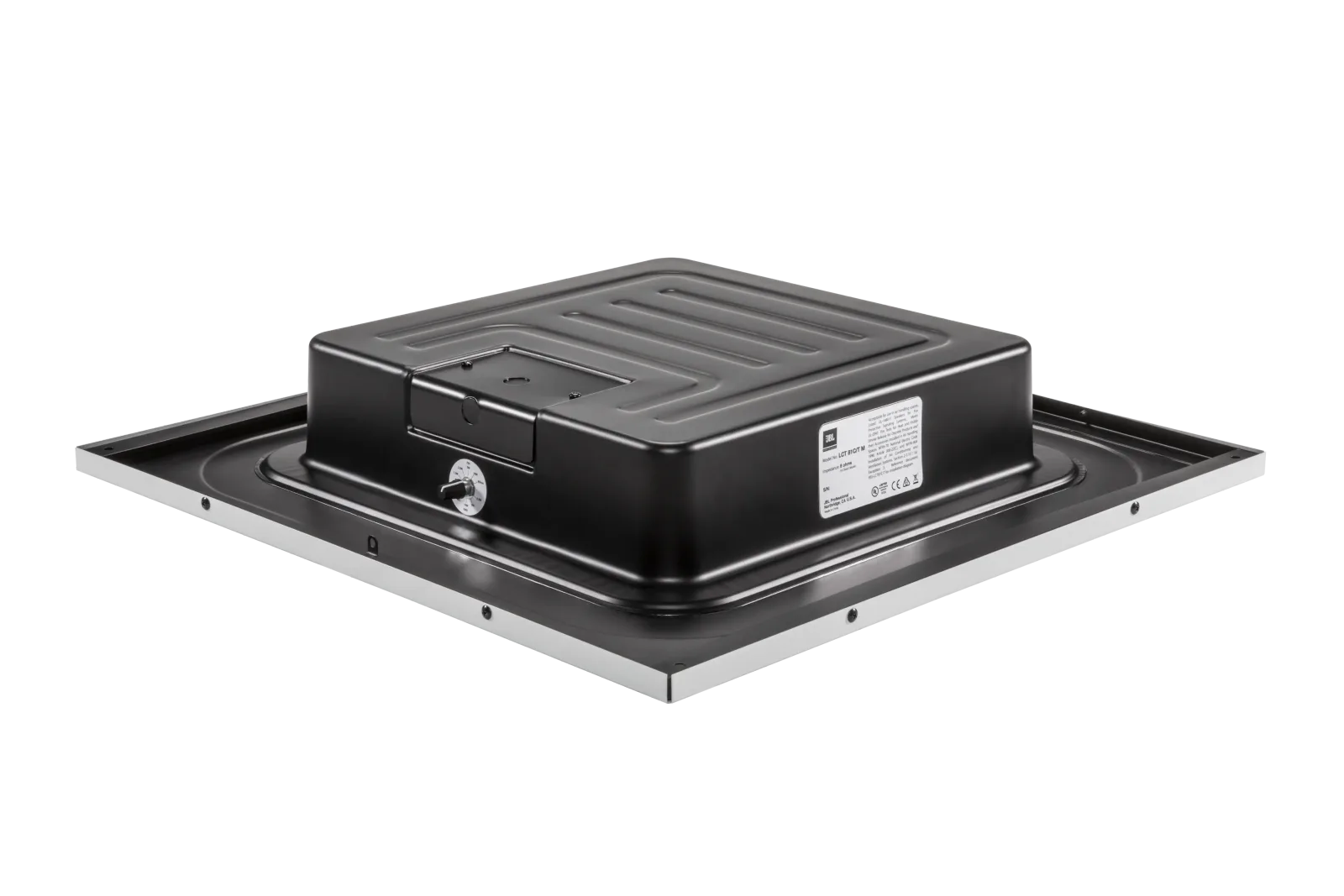

| Model | LCT 81C/TM |
|---|
| Drivers | High-efficiency 200 mm (8 inch) dual-cone driver with 25 mm (1 in) diameter voice coil, Kapton coil former, and high-temperature voice coil wire. |
|---|
| Frequency Range (-10dB) | 100 Hz – 16 kHz |
|---|
| Sensitivity | 96 dB (2 kHz - 6 kHz) |
|---|
| Coverage Angle | 100° conical |
|---|
| Maximum SPL (1m) | 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100V tap) |
|---|
| Impedance | 8 ohms (in direct/thru setting) |
|---|
| Transformer Taps | 10 W, 5 W, 2.5 W (plus 1.3 W @ 70V) |
|---|
| Recommended Protective High-Pass | 90 Hz high-pass (24 dB/oct) for 8Ω direct or any 70V or 100V tap setting |
|---|
| Power Capacity (at low-Z) | 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise |
|---|
| Input Connectors | Bare wire inside protected in touch-proof wiring compartment. |
|---|
| Tap Selector | Rotary switch accessible from side of backcan |
|---|
| Materials | Steel rear enclosure, front baffle, and perforated grille |
|---|
| Grille Color | White |
|---|
| Safety Agency | Suitable for use in air handling spaces certified per UL1480A, Speakers for Commercial and Professional Use; UL2043, Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air-Handling Spaces; NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker. |
|---|
| Dimensions | 595 x 595 x 103 mm (23.4 x 23.4 x 4.1 in) |
|---|
| Net Weight | 6.9 kg (15.2 lbs) each |
|---|
| Shipping Weight | 15.5 kg (34.2 lbs) per pair-pack |
|---|
