| Model | CSS8018 |
|---|
| Drivers | 200 mm (8 in) Full-Range |
|---|
| Sensitivity | 97 dB (2k - 6k Hz) |
|---|
| Frequency Range (-10 dB) Driver/Grille Assembly | 50 Hz – 17 kHz |
|---|
| Installed in CSS-BB backcan | 90 Hz – 17 kHz |
|---|
| Coverage Angle | 110° conical |
|---|
| Driver Continuous Power Handling | 20 Watts |
|---|

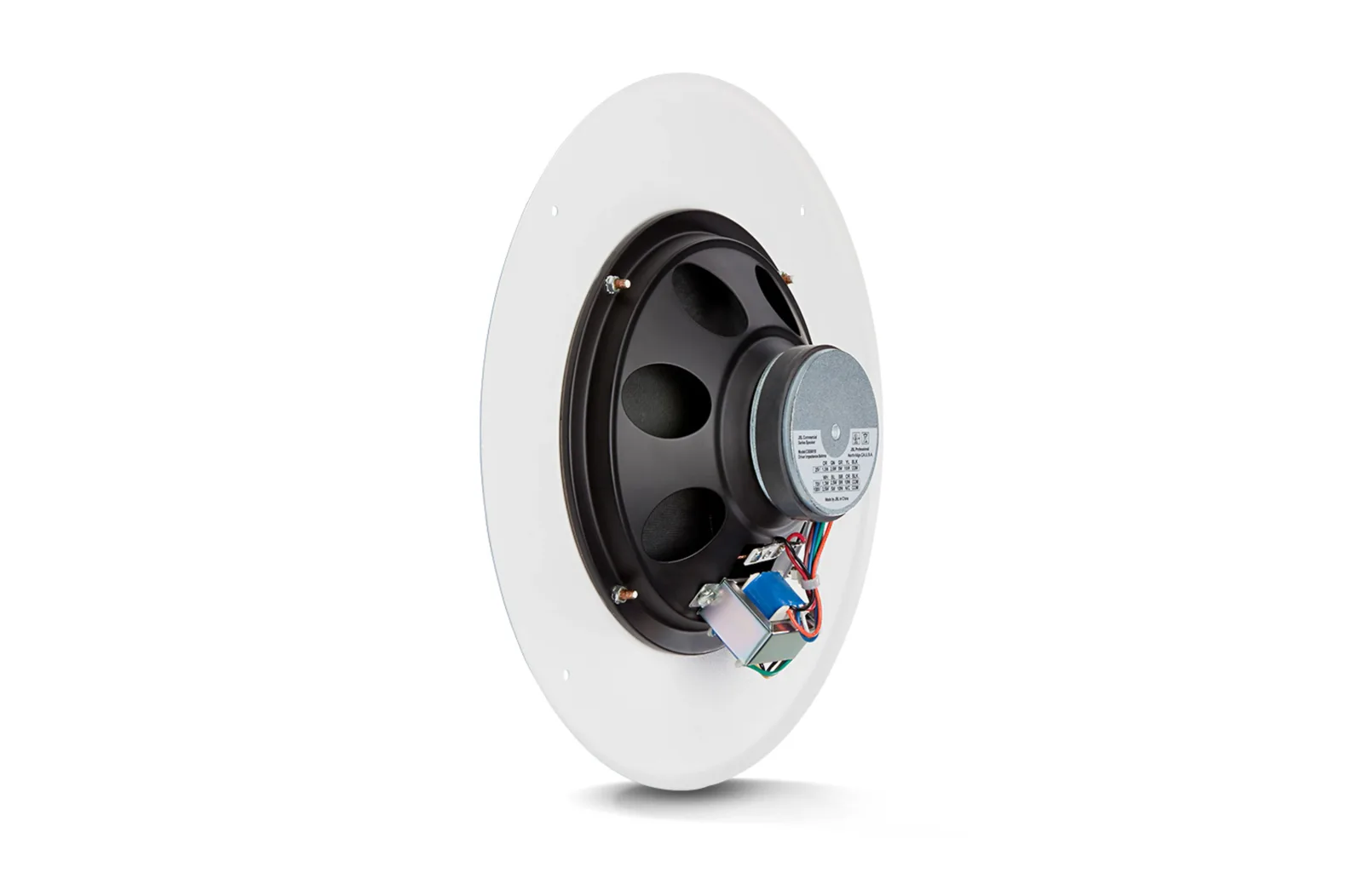

| Transformer Taps | 100V Taps - 10W, 5W, 2.5W 70V Taps - 10W, 5W, 2.5W, 1.3W 25V Taps - 10W, 5W, 2.5W, 1.3W |
|---|
| Transformer Insertion Loss | 1.5 dB Maximum |
|---|
| Transformer Connection | Bare wire |
|---|
| Motor Mass | 283 g (10 oz) |
|---|
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
|---|

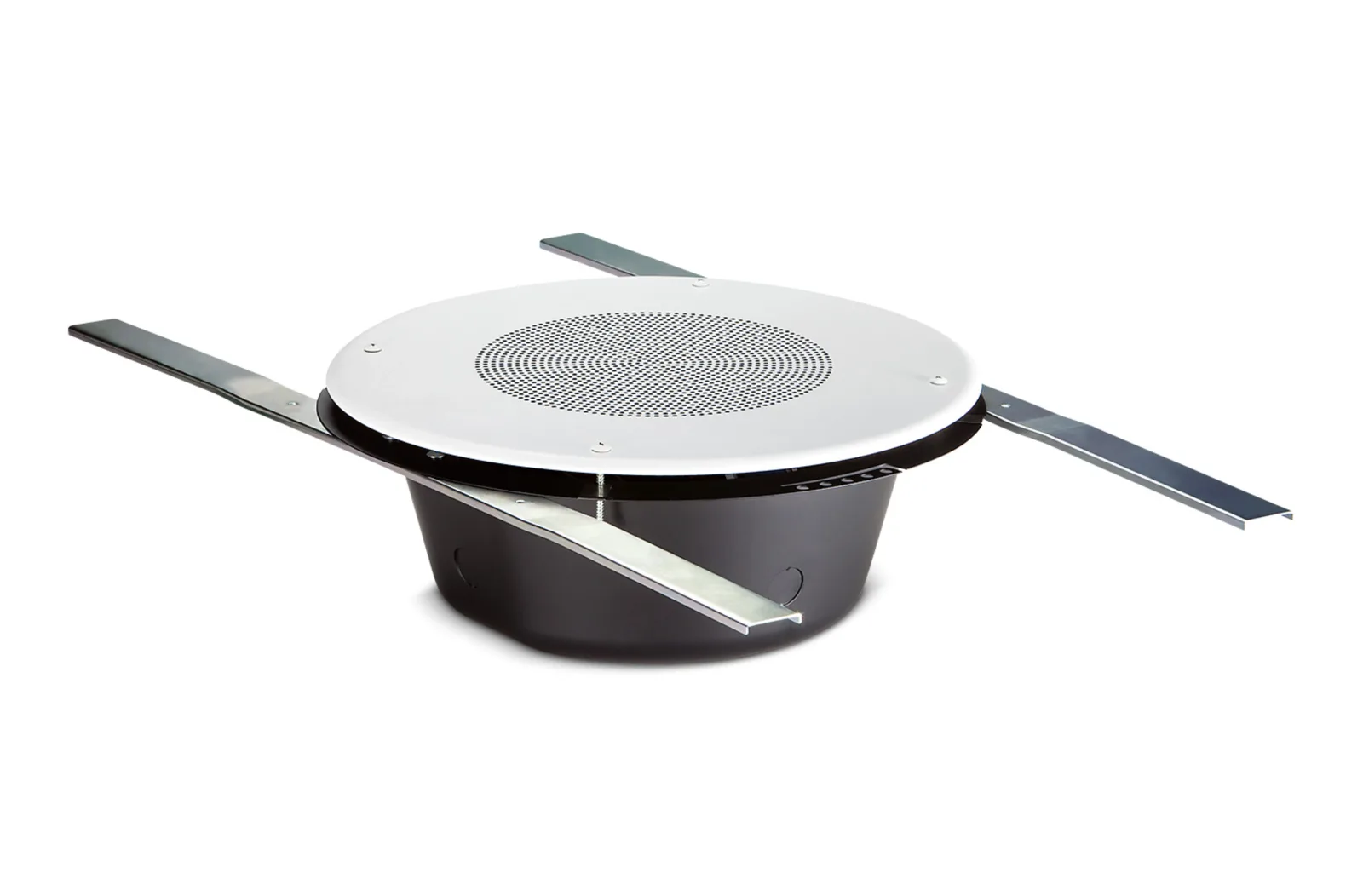

| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |
|---|
| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft) |
|---|
| Bolt Mounting Circle to Backcan | 4 points on 286 mm (11.25 in) diameter |
|---|
| Cutout DiameterOpen-back | 216 mm (8.5 in) |
|---|
| In CSS-BB backcan | 295 mm (11.7 in) |
|---|
| Depth (behind grille) | 73 mm (2.9 in) |
|---|
| Grille Diameter | 327 mm (12.9 in) |
|---|
