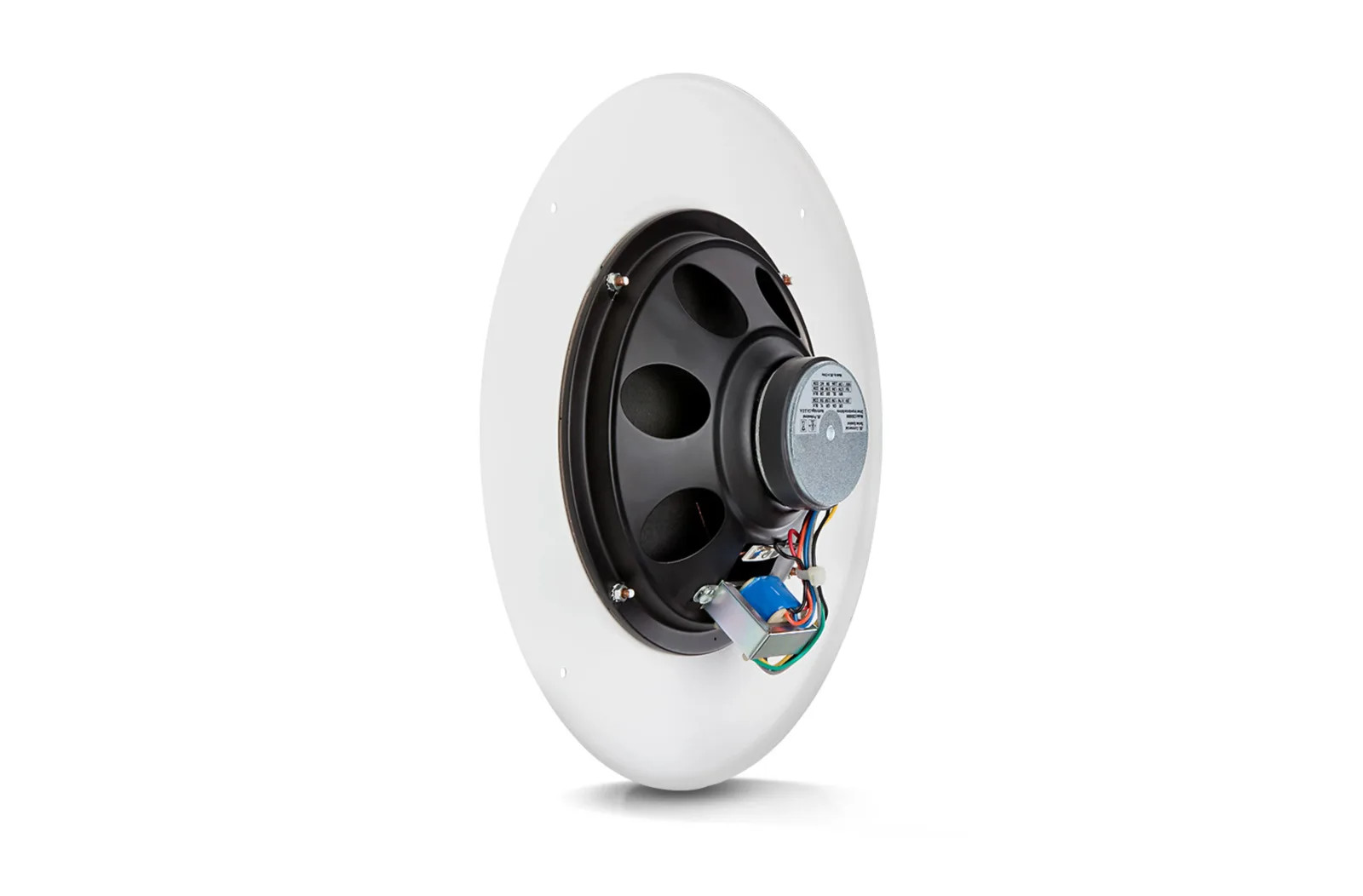

| Model | CSS8008 |
|---|
| Drivers | 200 mm (8 in) Full-Range |
|---|
| Sensitivity | 96 dB (2k - 6k Hz) |
|---|
| Frequency Range (-10 dB) Driver/Grille Assembly | 55 Hz – 16 kHz |
|---|
| Installed in CSS-BB backcan | 100 Hz – 16 kHz |
|---|
| Coverage Angle | 120° conical |
|---|
| Driver Continuous Power Handling | 15 Watts |
|---|
| Transformer Taps | 100V Taps - 5W, 2.5W, 1.3W 70V Taps - 5W, 2.5W, 1.3W, 0.7W 25V Taps - 5W, 2.5W, 1.3W, 0.7W |
|---|
| Transformer Insertion Loss | 1.5 dB Maximum |
|---|
| Transformer Connection | Bare wire |
|---|
| Motor Mass | 200 g (7 oz) |
|---|
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
|---|
| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |
|---|
| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft) |
|---|
| Bolt Mounting Circle to Backcan | 4 points on 286 mm(11.25 in) diameter |
|---|
| Cutout DiameterOpen-back | 216 mm (8.5 in) |
|---|
| In CSS-BB backcan | 295 mm (11.7in) |
|---|
| Depth (behind grille) | 71 mm (2.8 in) |
|---|
| Grille Diameter | 327 mm (12.9 in) |
|---|
