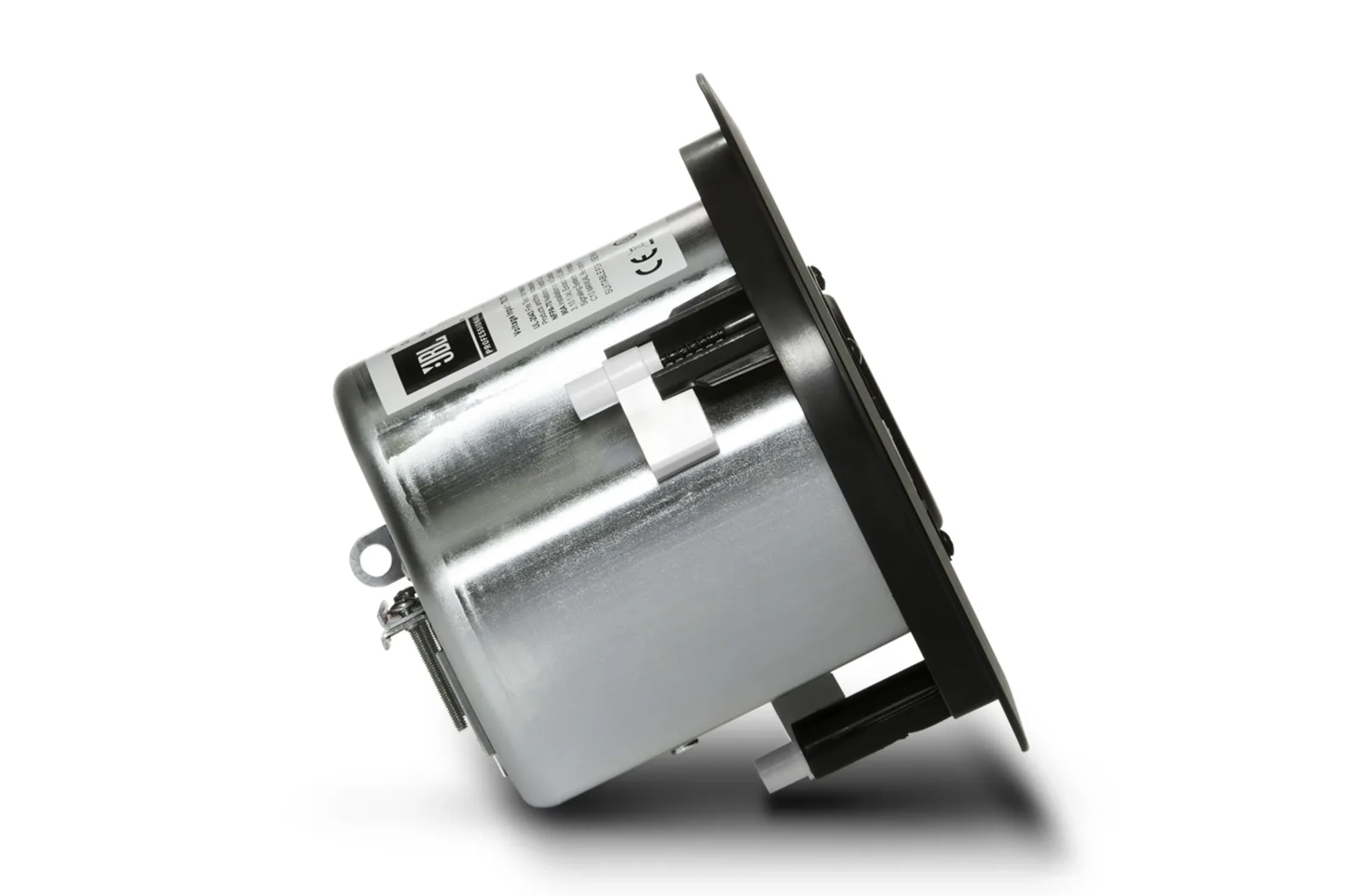

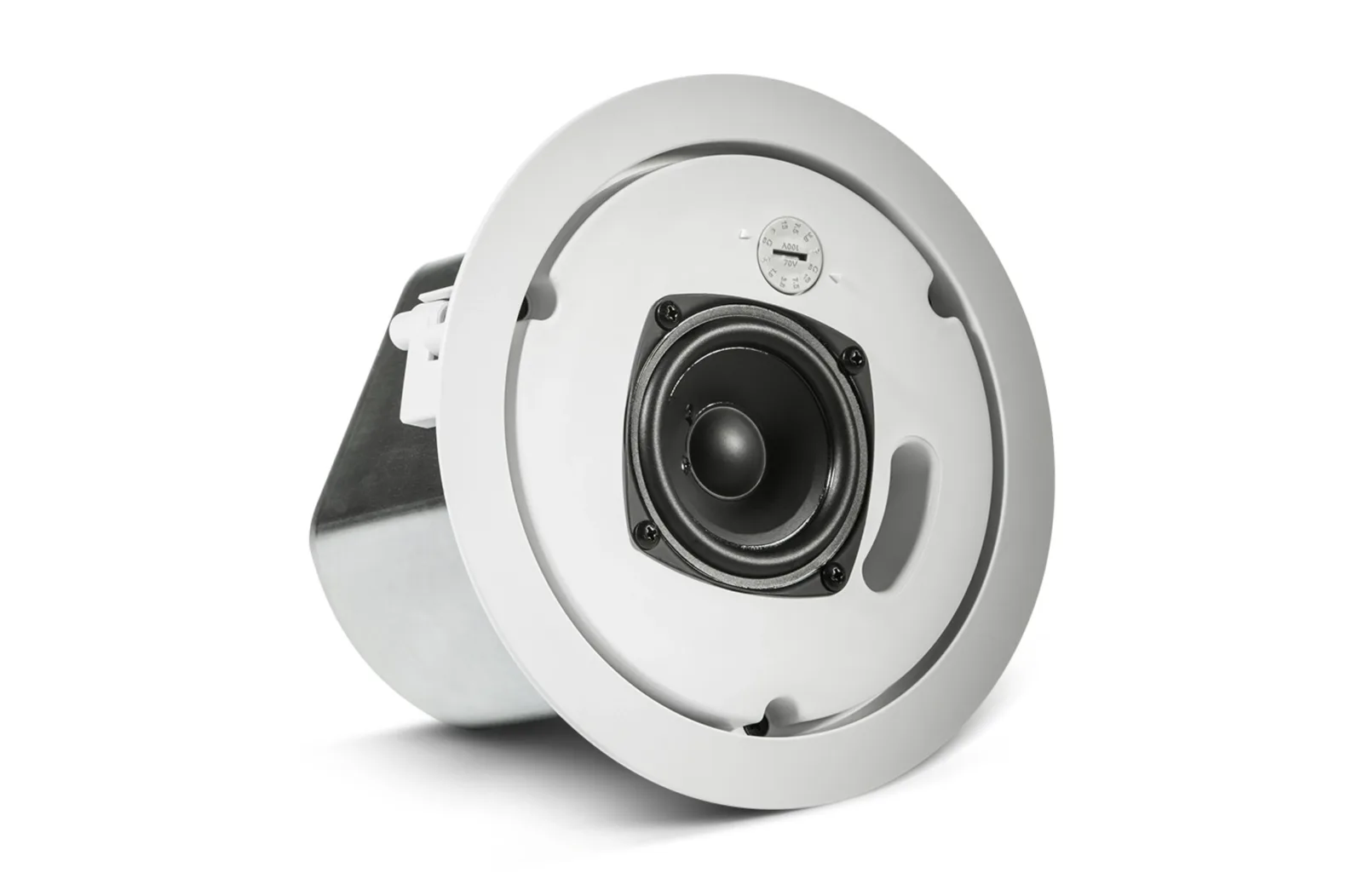

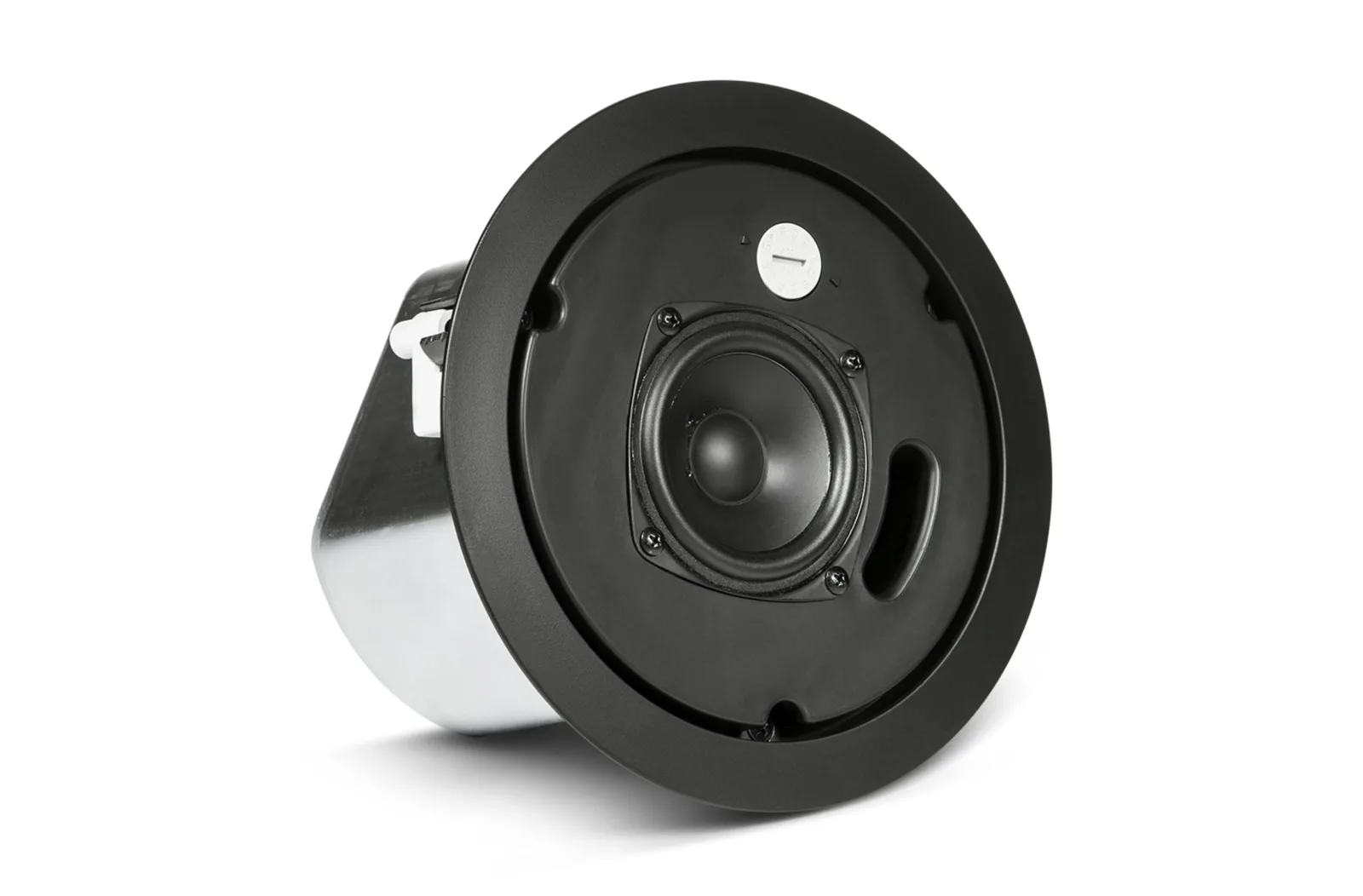

| Model | Control 12C/T |
|---|
| Frequency Range (-10dB) | 68 Hz – 17 kHz |
|---|
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise (80W peak), 100 hr |
|---|
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only) |
|---|
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
|---|
| Sensitivity | 84 dB (1kHz - 16 kHz) |
|---|
| Coverage Angle | 130° conical |
|---|
| Directivity Factor (Q) | 9.8 |
|---|
| Directivity Index (DI) | 7.4 dB |
|---|
| Maximum SPL (1m) | 97 dB (low-impedance, 103 dB peak) 96 dB (top 70V/100V tap) |
|---|
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
|---|
| Drivers | 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension |
|---|
| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
|---|
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
|---|
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
|---|
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
|---|
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
|---|
