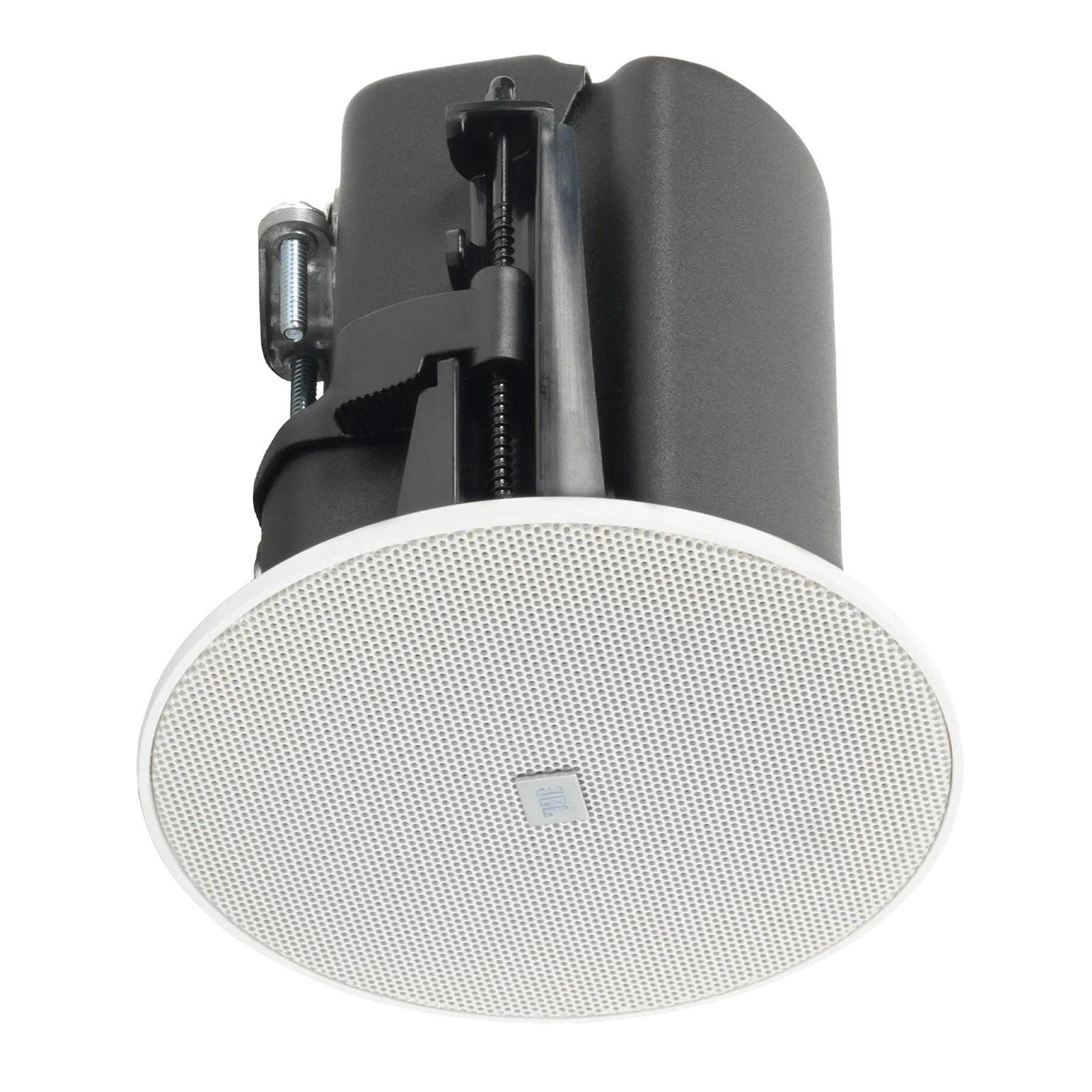

View larger image of JBL Control 442C/T — official product photo
18 attributes
| Attribute | Value |
|---|---|
| Model | Control 442C/T |
| Frequency Range (-10 dB) | 130Hz - 20kHz |
| Power Capacity | 22.5 W (90 W Peak), Cont. Pink Noise (2 hrs.) 15 W (60 W Peak) Cont. Pink Noise Power (100 hrs.) |
| Sensitivity (1m/1W) | 86dB |
| Coverage Angle | 160° conical |
| Maximum SPL (1m) | 99.5 dB Cont. pink noise (105.5 dB peak) |
| Nominal Impedance | 16Ω |
| Transformer Taps | 70 V: 12 W, 6 W & 3 W 100 V: 12 W, 6 W |
| Drivers | 60 mm (2.5 in) Full Range driver with paper cone, Rubber surround, CCAW coil |
| Ceiling Cutout Size | 104 mm (4.1 in) |
| Dimensions | 138 mm (5.4 in) H x 131 mm (5.2 in) dia. 129 mm (5.1 in) from bottom of ceiling tile to top of backcan |
| Safety Agency Rating | Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer. |
| Environmental | IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C. |
| Optional Accessories | JBL-MTC-442BG black (RAL9004) round grille JBL-MTC-442SG white (RAL9003) square grille JBL-MTC-442NC new construction bracket JBL-MTC-442MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles |
| Color | Stock grille is White (RAL9003), paintable |
| Net Weight (ea) | 1.1 kg (2.43 lbs) |
| Shipping Weight (pair) | 3.22 kg (7.1 lbs) |
| SKU Numbers |
| JBL-C442C/T |
