Features

Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter

Integrated enclosure that is ideal for installation in most ceiling plenum spaces

CRBI technology for consistent 110° coverage across the listening area

Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input

Full-face, easily paintable magnetic grilles

Top and side exit cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP33 rated

Attribute

Value

Model

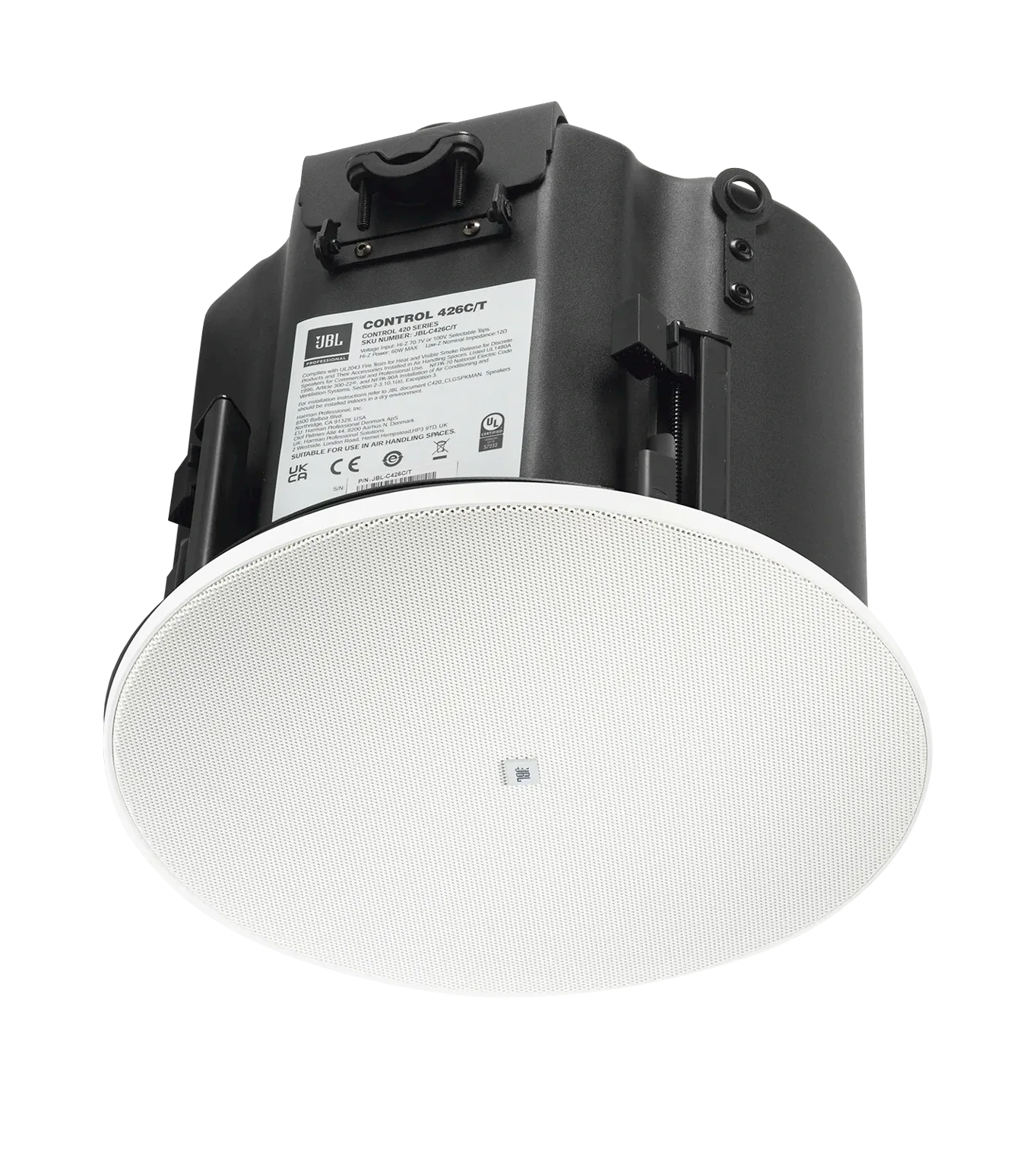

Control 426C/T

Frequency Range (-10 dB)

72 Hz – 19 kHz

Power Capacity

110 W (440 W Peak), Continuous Pink Noise (2 hrs) 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)

Sensitivity (1m/1W)

89dB

Coverage Angle

110° conical

Maximum SPL (1m)

109 dB continuous pink noise (115 dB peak)

Nominal Impedance

12Ω

Transformer Taps

70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W

Drivers

LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly

Ceiling Cutout Size

223 mm (8.8 in)

Dimensions

190 mm (7.4 in) H x 253 mm (9.9 in) dia. 181 mm (7.1 in) from bottom of ceiling tile to top of backcan

Safety Agency Rating

Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.

Environmental

IP33 rating per EN/IEC 60529. Operating temperature 0°C to 45°C

Optional Accessories

JBL-MTC-426BG black (RAL9004) round grille JBL-MTC-426SG white (RAL9003) square grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable

Net Weight (ea)

4.2 kg (9.3 lbs)

Shipping Weight (pair)

13.48 kg (29.73 lbs)
