Features

Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter

Integrated enclosure that is ideal for installation in most ceiling plenum spaces

CRBI technology for consistent 130° coverage across the listening area

Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input

Full-face, easily paintable magnetic grilles

Top and side exit cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP33 rated

Attribute

Value

Model

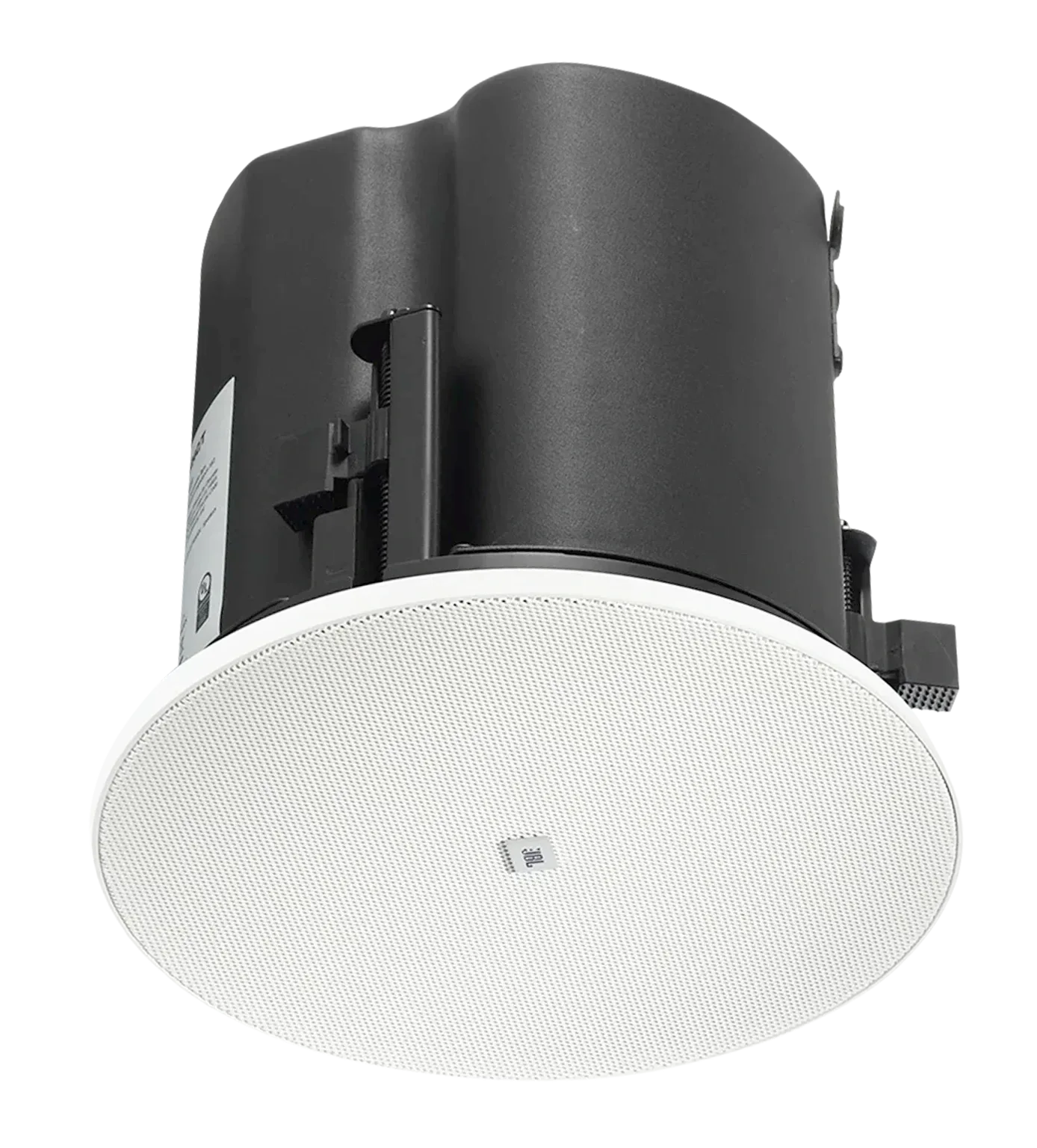

Control 424C/T

Frequency Range (-10 dB)

75Hz - 18kHz

Power Capacity

60W (240 W Peak), Cont. Pink Noise (2 hrs.) 40 W (160 W Peak) Cont. Pink Noise Power (100 hrs.)

Sensitivity (1m/1W)

85dB

Coverage Angle

130° conical

Maximum SPL (1m)

103 dB continuous pink noise (109 dB peak)

Nominal Impedance

16Ω

Transformer Taps

70 V: 30 W, 15 W, 7.5 W & 3.7 W 100 V: 30 W, 15 W, 7.5 W

Drivers

LF: 100 mm (4 in) with treated paper cone and high-performance magnet HF: 19 mm (0.75 in) textile soft-dome with Neodymium magnet assembly

Ceiling Cutout Size

168 mm (6.6 in)

Dimensions

182 mm (7.2 in) H x 196 mm (7.7 in) dia. 173 mm (6.8 in) from bottom of ceiling tile to top of backcan

Safety Agency Rating

Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.

Environmental

IP33 rating per EN/IEC 60529. Operating temperature 0°C to 45°C

Optional Accessories

JBL-MTC-424BG black (RAL9004) round grille JBL-MTC-424SG white (RAL9003) square grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable

Net Weight (ea)

2.8 kg (6.2 lbs)

Shipping Weight (pair)

10.57 kg (23.31 lbs)
