Features

8” (200mm) woofer

Integrated enclosure with two large, tapered ports for warm, smooth bass response

Built-In Passive low-pass filter for simple integration with full-range speakers

Built-in 70V/100V subwoofer-band multi-tap transformer, plus 8-ohm direct input

Full-face, easily paintable magnetic grilles

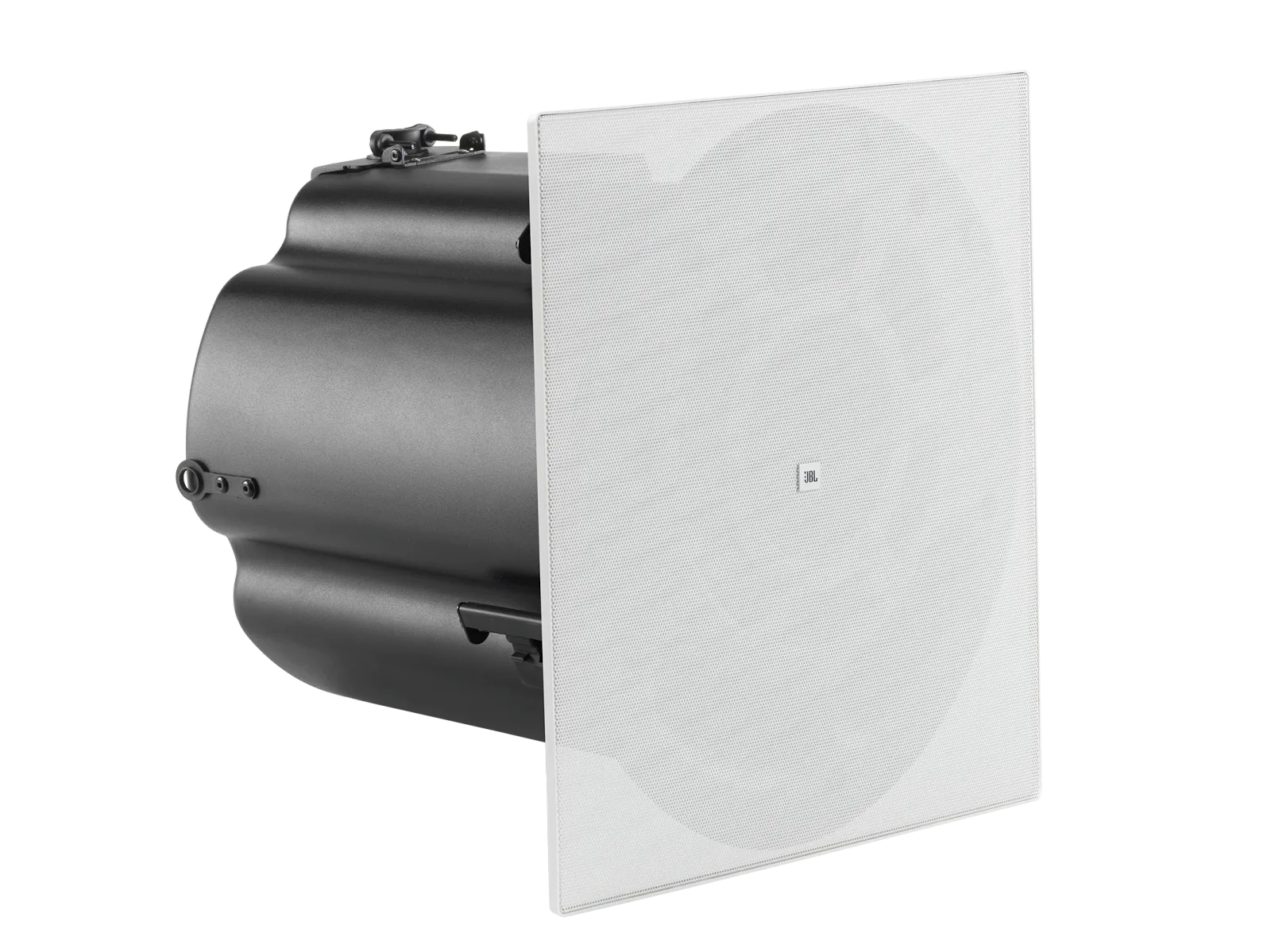

Black and square magnetic accessory grilles available

Top and side exit cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP33 rated

Attribute

Value

Model

Control 419CS/T

Frequency Range (-10 dB)

47 Hz – 320 Hz

Power Capacity

160 W (640 W Peak), Continuous IEC Pink Noise (2 hrs) 80 Watts (320 W Peak) Continuous IEC Pink Noise Power (100 hrs)

Sensitivity (1m/1W)

90dB

Coverage Angle

180° conical

Maximum SPL (1m)

112dB continuous pink noise (118 dB peak)

Nominal Impedance

8Ω

Transformer Taps

70 V: 60 W, 30 W, 15 W & 7.5 W 100 V: 60 W, 30 W, 15 W

Drivers

200 mm (8 in) with treated paper cone and high-performance magnet

Ceiling Cutout Size

308 mm (12.2 in)

Dimensions

289 mm (11.4 in) H x 346 mm (13.6 in) dia. 280 mm (11.0 in) from bottom of ceiling tile to top of backcan

Safety Agency Rating

Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.

Environmental

IP33 rating per EN/IEC 60529. Operating temperature 0°C to 45°C

Optional Accessories

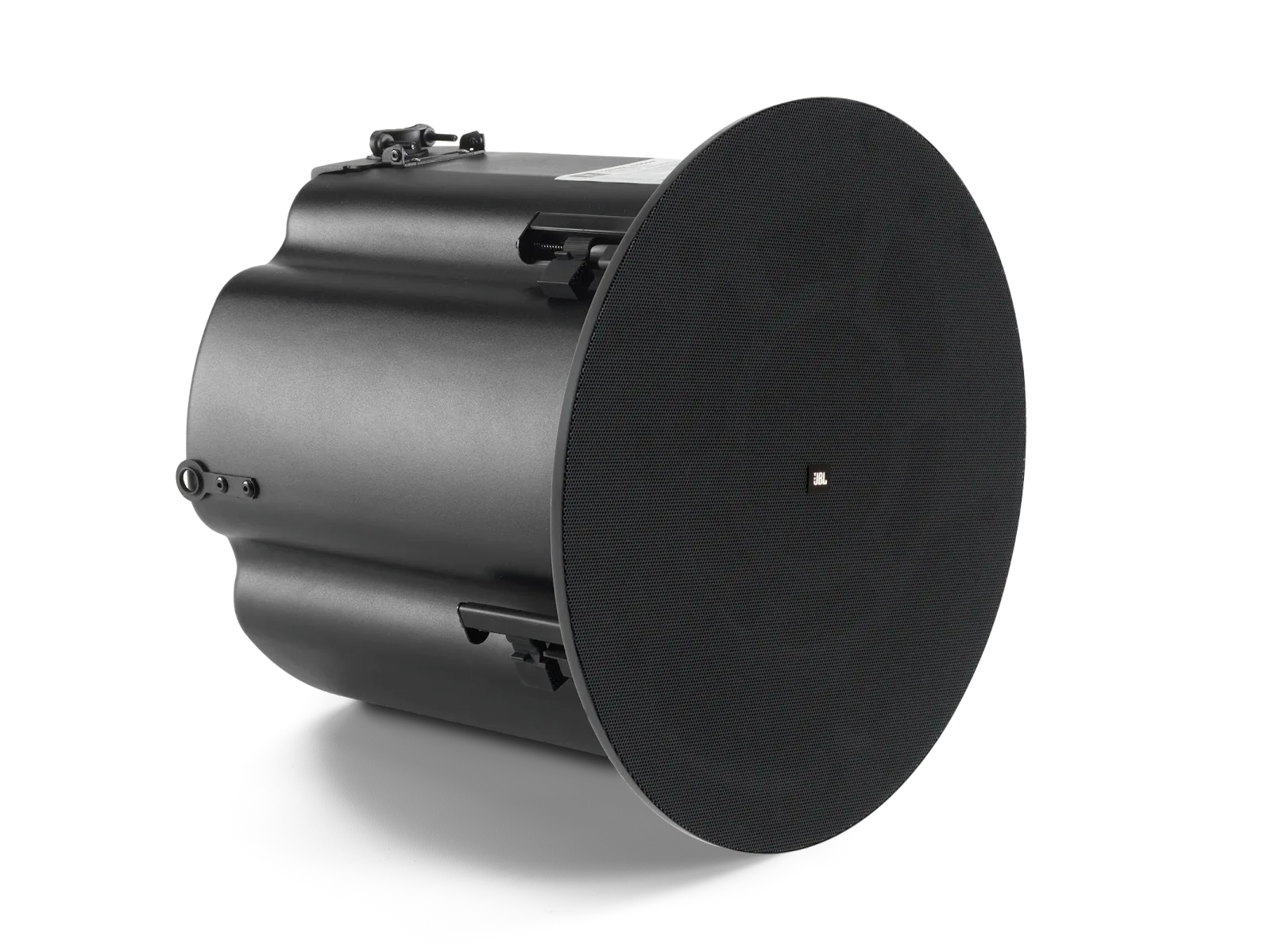

JBL-MTC-419BG black (RAL9004) magnetic round grille JBL-MTC-419SG white (RAL9003) magnetic square grille JBL-MTC-419NC new construction bracket JBL-MTC-419MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable

Net Weight (ea)

8.8 kg (19.4 lbs)

Shipping Weight (pair)

25.27 kg (55.7 lbs)

SKU Numbers

JBL-C419CS/T
