Features

165 mm (6.5 in) woofer and 19 mm (0.75 in) soft-dome tweeter

Integrated enclosure that is ideal for installation in most ceiling plenum spaces

Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

Full-face, easily paintable magnetic grilles

Top and side cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP33 rated

EN54-24 Certified for Standard for Life Safety applications

Attribute

Value

Model

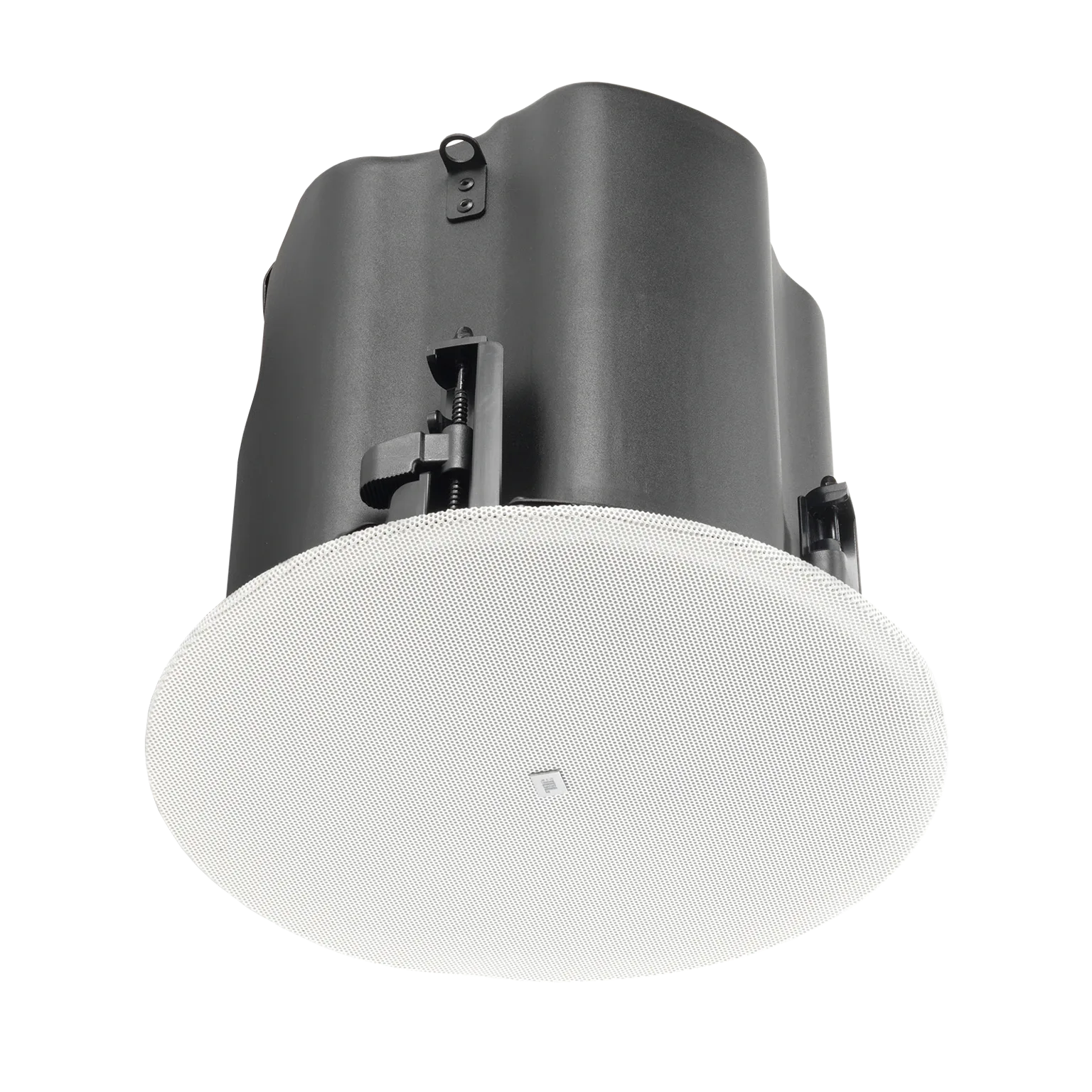

Control 416C/T-VA

Frequency Range (-10 dB)

61Hz - 20kHz

Power Capacity

75W (300W Peak) Cont. Pink Noise (2 hrs) 50W (200W Peak) Cont. Pink Noise (100 hrs)

Sensitivity (1m/1W)

89dB

Coverage Angle

120° conical

Maximum SPL (1m)

108 dB continuous pink noise (114 dB peak)

Nominal Impedance

8Ω

Transformer Taps

70 V: 30 W, 15 W, 7.5 W & 3.8 W 100 V: 30 W, 15 W, 7.5 W

Drivers

LF: 165 mm (6.5 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome

Ceiling Cutout Size

223 mm (8.8 in)

Dimensions

249 mm (9.9 in) H x 261 mm (10.4 in) dia. 238 mm (9.5 in) from bottom of ceiling tile to top of gland nut.

Safety Agency Rating

EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.

Environmental

IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.

Optional Accessories

JBL-MTC-416BG black (RAL9004) round grille JBL-MTC-416SG white (RAL9003) square grille JBL-MTC-416WG weather grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable (please read the user manual before painting)

Net Weight (ea)

3.76 kg (8.29 lbs)
