Features

165 mm (6.5 in) woofer and 20mm (0.75 in) soft-dome tweeter

Integrated enclosure that is ideal for installation in most ceiling plenum spaces

Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

Full-face, easily paintable magnetic grilles

Top and side cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP33 rated

Attribute

Value

Model

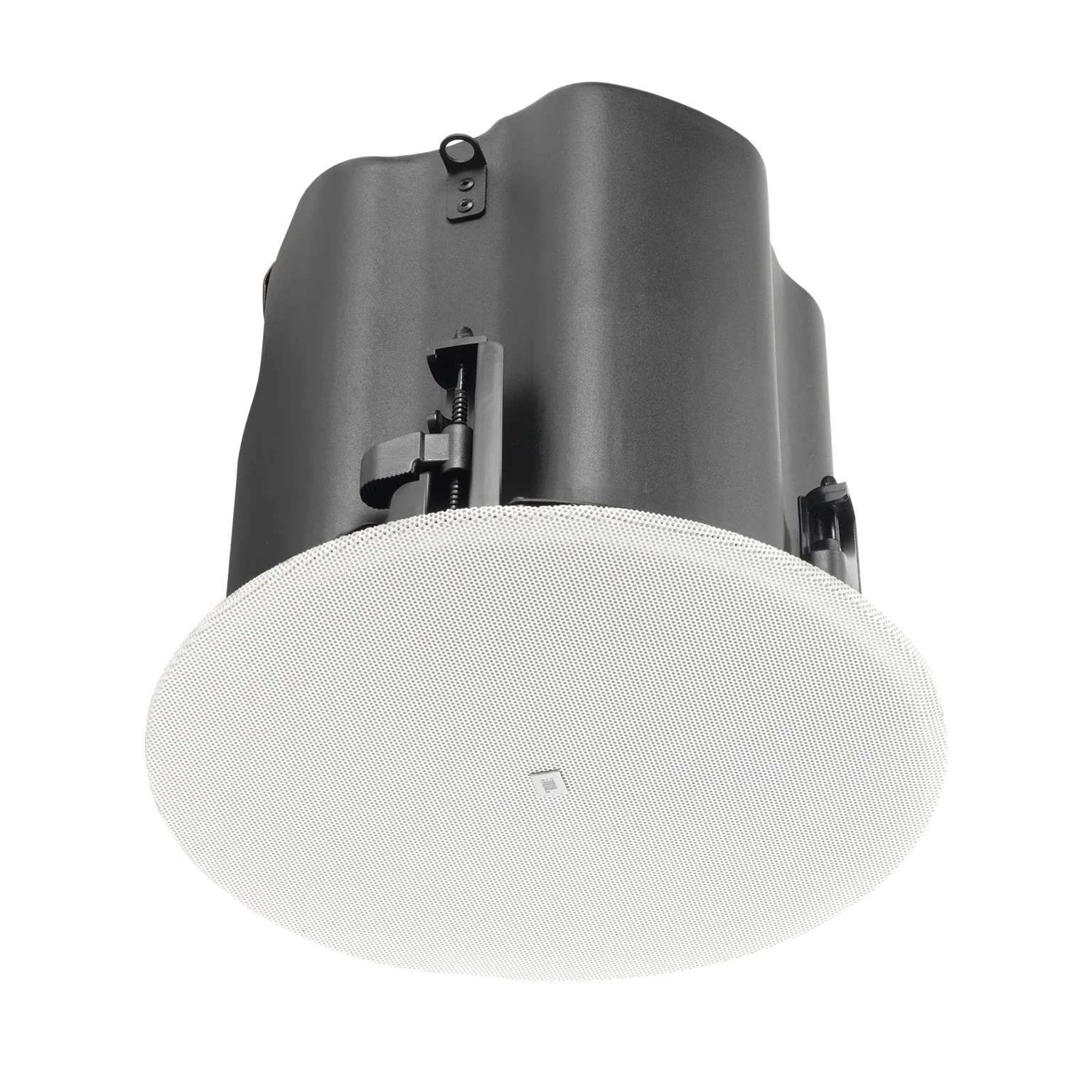

Control 416C/T

Frequency Range (-10 dB)

61Hz - 20kHz

Power Capacity

75W (300W Peak) Cont. Pink Noise (2 hrs) 50W (200W Peak) Cont. Pink Noise (100 hrs)

Sensitivity (1m/1W)

89dB

Coverage Angle

120° conical

Maximum SPL (1m)

108 dB continuous pink noise (114 dB peak)

Nominal Impedance

8Ω

Transformer Taps

70 V: 30 W, 15 W, 7.5 W & 3.8 W 100 V: 30 W, 15 W, 7.5 W

Drivers

LF: 165 mm (6.5 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome

Ceiling Cutout Size

223 mm (8.8 in)

Dimensions

233 mm (9.3 in) H x 261 mm (10.4 in) dia. 222 mm (8.9 in) from bottom of ceiling tile to top of backcan

Safety Agency Rating

Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.

Environmental

IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.

Optional Accessories

JBL-MTC-416BG black (RAL9004) round grille JBL-MTC-416SG white (RAL9003) square grille JBL-MTC-416WG weather grille JBL-MTC-426NC new construction bracket JBL-MTC-426MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable

Net Weight (ea)

3.75 kg (8.27 lbs)

Shipping Weight (pair)

12.64 kg (27.87 lbs)
