Features

100 mm (4 in) woofer and 12mm (0.5 in) PEI dome tweeter

Shallow 105 mm (4.13 in) depth

Integrated enclosure that is ideal for installation in most ceiling plenum spaces

Built-in 70V/100V multi-tap transformer

Full-face, easily paintable magnetic grilles

Top and side cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP32 rated

Attribute

Value

Model

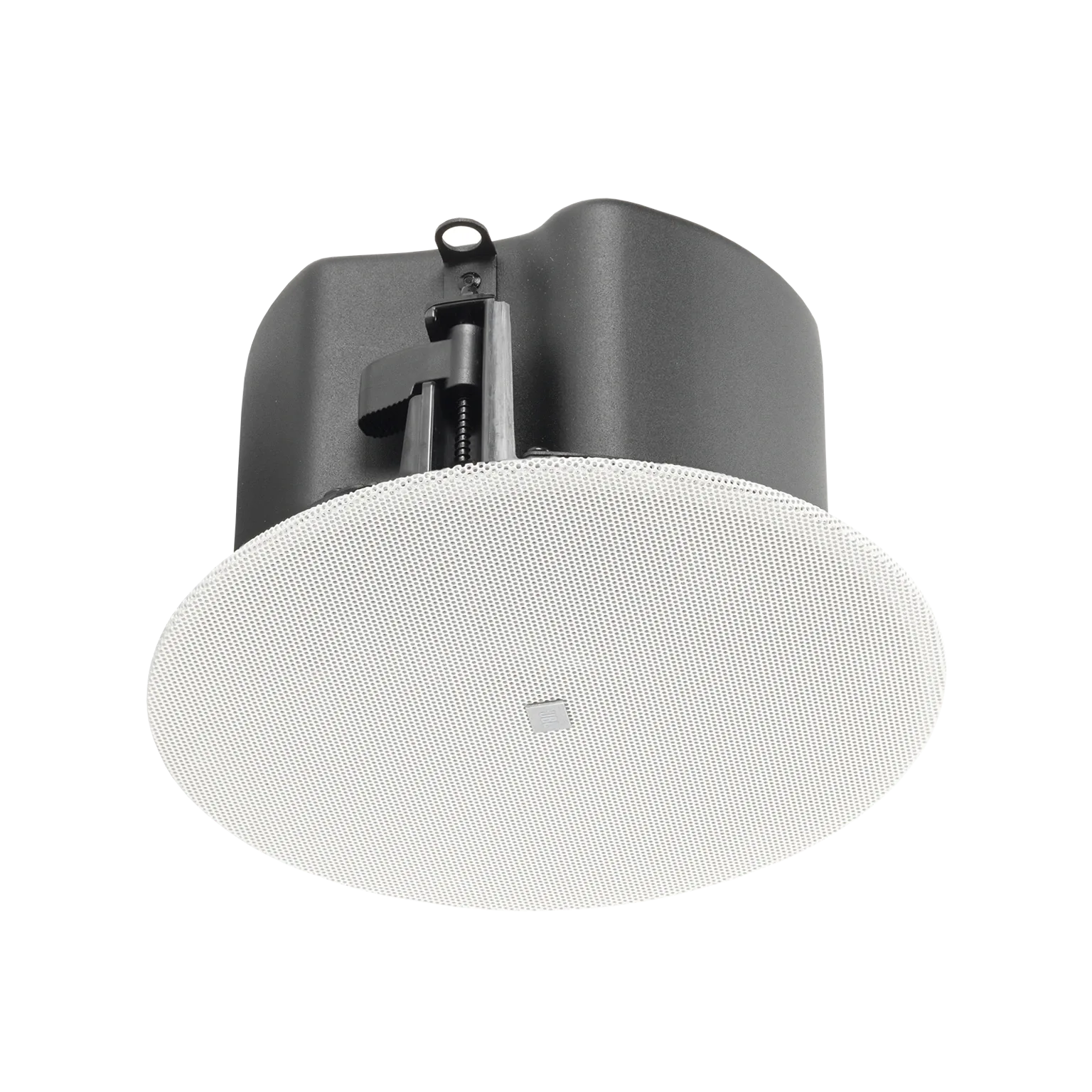

Control 414CT Micro Plus

Frequency Range (-10 dB)

69Hz - 25kHz

Power Capacity

25 W (100 W Peak) Cont. Pink Noise Power (100 hrs)

Sensitivity (1m/1W)

85dB

Coverage Angle

160° conical

Maximum SPL (1m)

99 dB continuous pink noise (105 dB peak)

Nominal Impedance

n/a

Transformer Taps

70 V: 25 W, 12 W & 6 W 100 V: 25 W, 12 W

Drivers

LF: 103 mm (4 in) with PP cone and paper cup, SBR surround HF: 13 mm (0.5 in) PEI dome

Ceiling Cutout Size

168 mm (6.6 in)

Dimensions

114 mm (4.6 in) H x 203 mm (8.1 in) dia. 105 mm (4.2 in) from bottom of ceiling tile to top of backcan

Safety Agency Rating

Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.

Environmental

IP rating: IP32 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.

Optional Accessories

JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable

Net Weight (ea)

2.12 kg (4.67 lbs)

Shipping Weight (pair)

8.6 kg (18.96 lbs)
