Features

100 mm (4 in) woofer and 20mm (0.75 in) soft-dome tweeter

Integrated enclosure that is ideal for installation in most ceiling plenum spaces

Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input

Full-face, easily paintable magnetic grilles

Top and side cable entry options

Robust and adaptable dogears for wide range of ceiling thicknesses

IP33 rated

EN54-24 Certified for Standard for Life Safety applications

Attribute

Value

Model

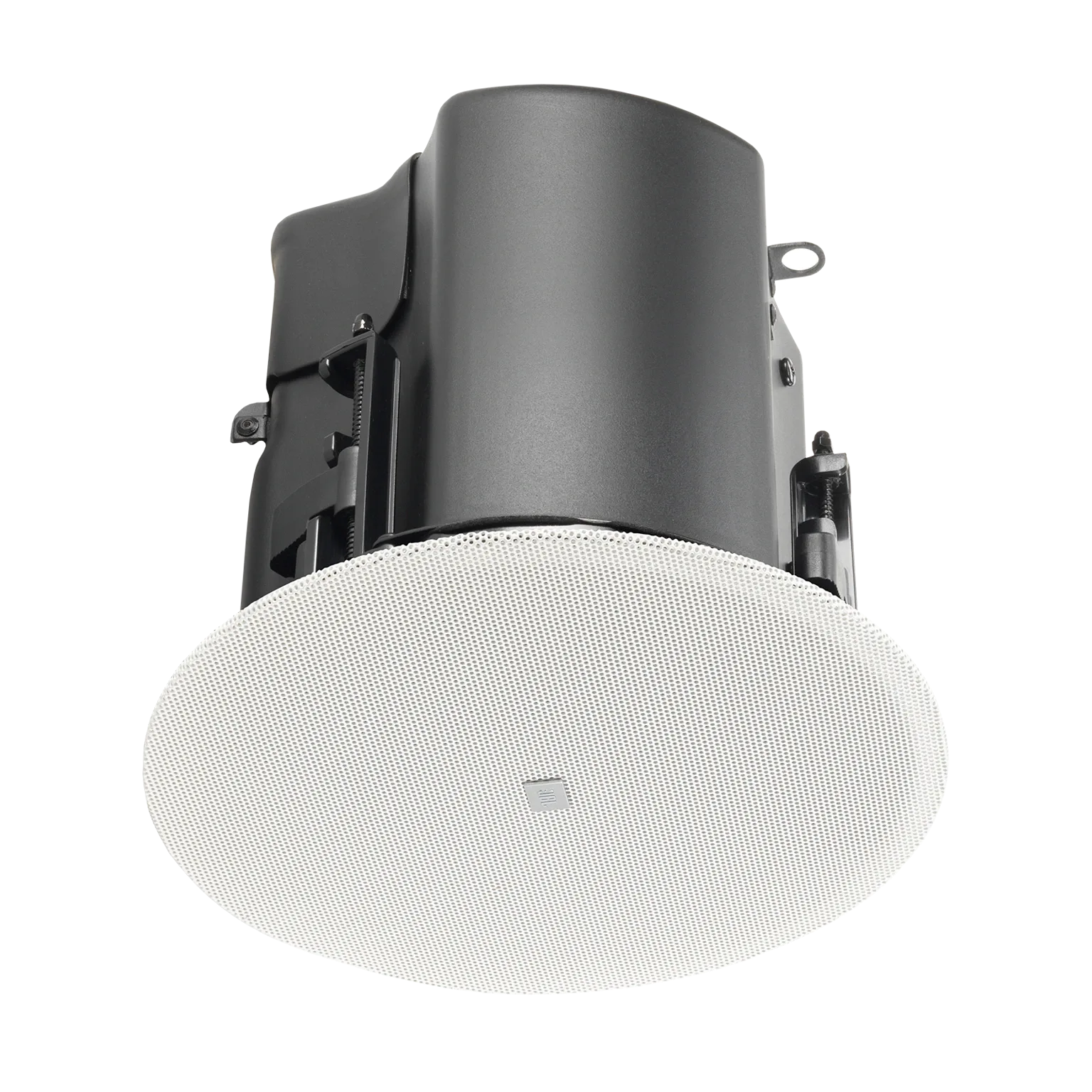

Control 414C/T-VA

Frequency Range (-10 dB)

65Hz - 20kHz

Power Capacity

45W (180W Peak) Cont. Pink Noise (2 hrs) 30W (120W Peak) Cont. Pink Noise (100 hrs)

Sensitivity (1m/1W)

86dB

Coverage Angle

130° conical

Maximum SPL (1m)

103 dB continuous pink noise (109 dB peak)

Nominal Impedance

8Ω

Transformer Taps

70 V: 25 W, 12.5 W, 6.3 W & 3.2 W 100 V: 25 W, 12.5 W, 6.3 W

Drivers

LF: 100 mm (4.0 in) with paper cone, SBR surround. HF: 20 mm (0.75 in) soft dome

Ceiling Cutout Size

168 mm (6.6 in)

Dimensions

206 mm (8.2 in) H x 203 mm (8.1 in) dia. 197 mm (7.9 in) from bottom of ceiling tile to top of gland nut.

Safety Agency Rating

EN 54-24:2008 certified Type A. Designed in accordance with BS 5839-8 and EN 50849. Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.

Environmental

IP rating: IP33 per EN/IEC 60529. Operating temperature: 0° C to 45 °C.

Optional Accessories

JBL-MTC-414BG black (RAL9004) round grille JBL-MTC-414SG white (RAL9003) square grille JBL-MTC-414WG white (RAL9003) weather grille JBL-MTC-424NC new construction bracket JBL-MTC-424MR mud-ring construction bracket JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles

Color

Stock grille is White (RAL9003), paintable (please read the user manual before painting)

Net Weight (ea)

2.50 kg (5.51 lbs)
