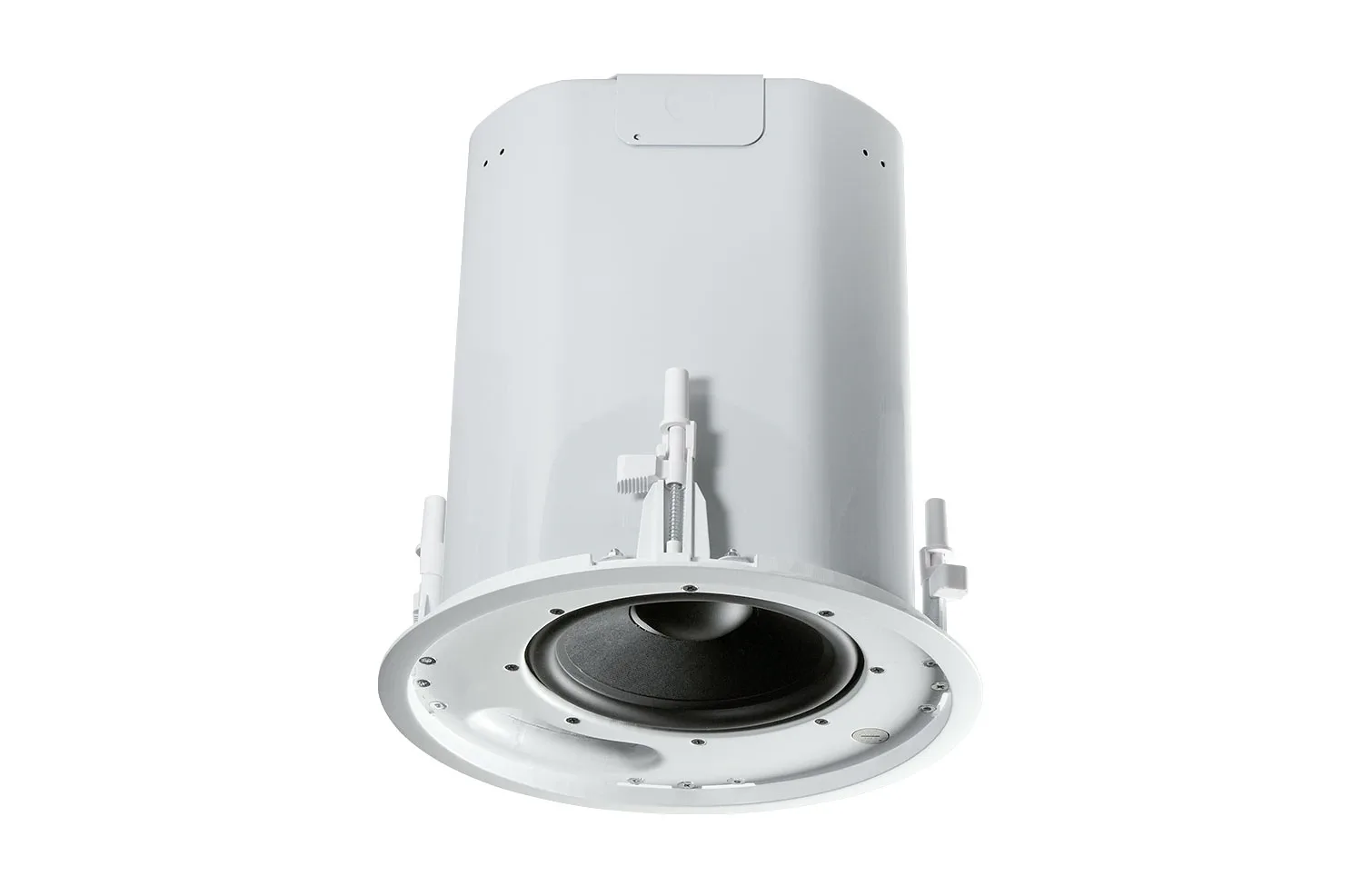

JBL Control 40CS/T High-Impact In-Ceiling Subwoofer

Brand: JBL ProfessionalModel: Control 40CS/T

The Control 40CS/T is a direct radiating, high impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with the Control 42, the Control 40CS/T offers an extremely natural sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the Control Contractor in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.

Attribute

Value

Model

Control 40CS/T

Frequency Range

32 Hz - 300 Hz

Power Rating

IEC System Long-Term Ratings (low-Z direct): 200 Watts Continuous Program Power 100 Watts Continuous Pink Noise(400W peak), 100 hr

Sensitivity

95 dB (near corner), 89 dB (center of ceiling)

Transformer Taps

80 W 40 W, 20 W, (& 10 W @ 70V), plus transformer bypass

Impedance

8 ohms (in bypass mode)

Drivers

200 mm (8 in) subwoofer

Termination

Screw-down removable locking clip-in connector

Satellite Outputs

Connectors for 2 or 4 Control 42C satellite speakers

Included Accessories

C-rings, tile rails, paint shield, cutout template, grille

Dimensions (Diameter x Depth)

332mm Diameter x 338mm Diameter Depth (13.1 in x 13.3 in)

Maximum SPL (1m)

109 dB (low-impedance, 115 dB peak, center of ceiling) 115 dB (low-impedance, 121 dB peak near corner) 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V near corner)

Input Connectors

6 removeable locking 2-pin connectors with screwdown terminals.

Color

White

Safety Agency

Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Backcan

formed steel (included "blind-mount")

Baffle/Rim

ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.

Ceiling Cutout Size
