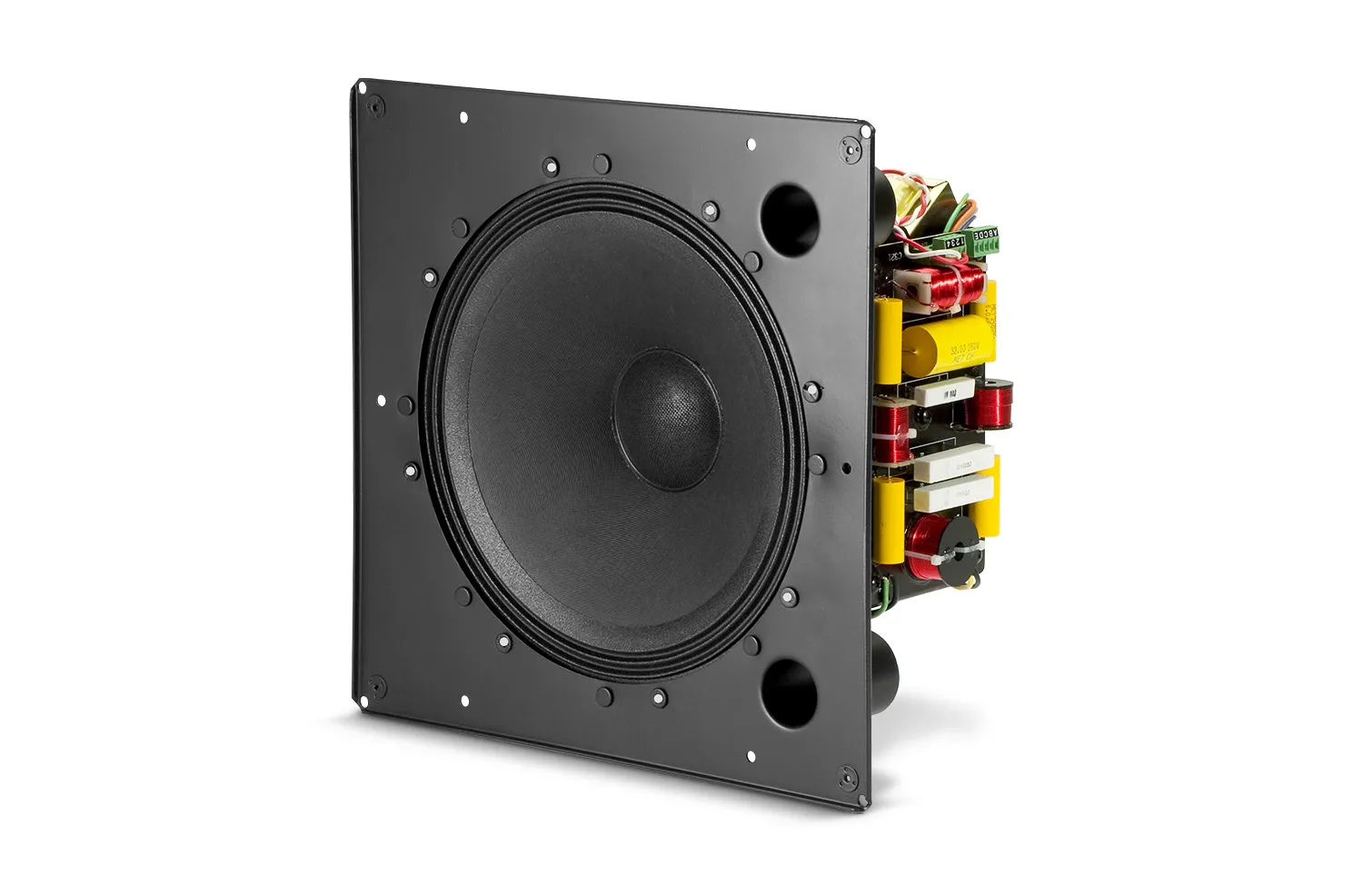

| Model | Control 321CT |
|---|
| Frequency Range (-10dB) | 34 Hz – 18 kHz |
|---|
| Power Rating | IEC Long-Term System Power Rating: 250 W continuous pink noise (1000 W peak), 2 hrs 200 W continuous pink noise (800 W peak), 100 hrs |
|---|
| Transformer Taps | 68W, 34W, 17W, (& 8.5W @ 70V) |
|---|
| Frequency Response (±3 dB) | 47 Hz – 16 kHz |
|---|
| Coverage Angle | 90° conical, constant directivity |
|---|
| Directivity Factor (Q) | 8.7 (1k - 16kHz) |
|---|
| Directivity Index (DI) | 9.4 dB (1k - 16kHz) |
|---|
| Sensitivity | 94 dB (1 kHz - 16 kHz) |
|---|
| Crossover Network | 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF |
|---|
| Dimensions (H x W x D) | 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in) |
|---|
| Maximum SPL (1m) | 118 dB (top 70V/100V tap) |
|---|
| Input Connectors | Screw locking barrier strip for bare wire |
|---|
| Drivers | LF Driver: 300 mm (12 in) HF Driver: compression driver, 25 mm (1 inch) coil |
|---|
| Color | White |
|---|
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB12. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
|---|
| Backcan | formed steel (wood-lined; accessory) |
|---|
| Baffle/Rim | Metal, driver pre-mounted to baffle, ported. |
|---|
|
