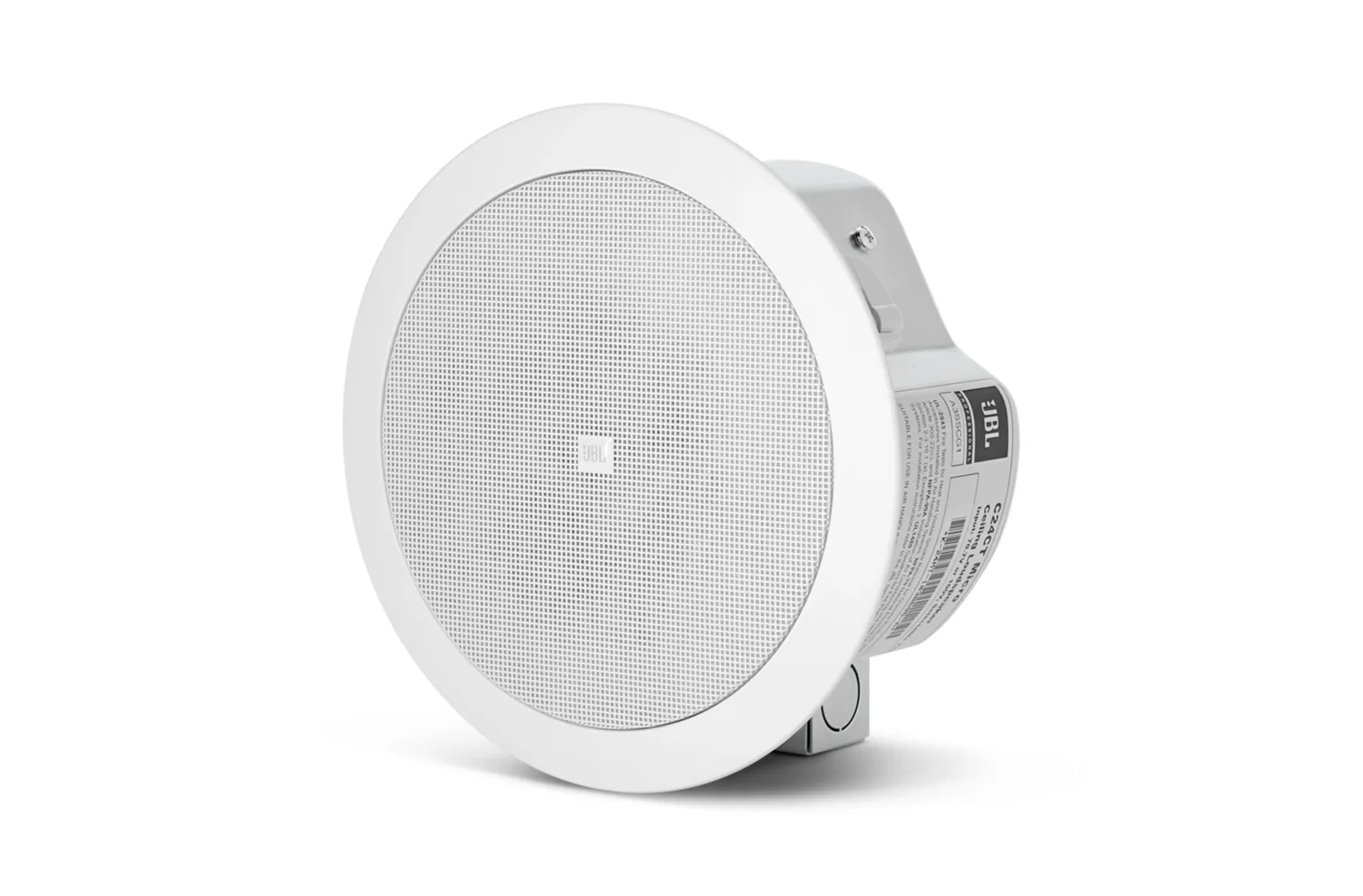

View larger image of JBL Control 24CT Micro — official product photo
18 attributes
| Attribute | Value |
|---|---|
| Model | Control 24CT Micro |
| Frequency Range | 85 Hz - 25 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 9W, 4W, 2W, 1W (& 0.5 W taps @ 70V) |
| Crossover Frequency | 3.5 kHz |
| Maximum SPL (1m) | 94 dB (top 70V/100V tap) |
| Sensitivity | 86 dB (100 Hz - 10 kHz) |
| Coverage Angle | 150° conical |
| Input Connectors | Screw-down terminals. |

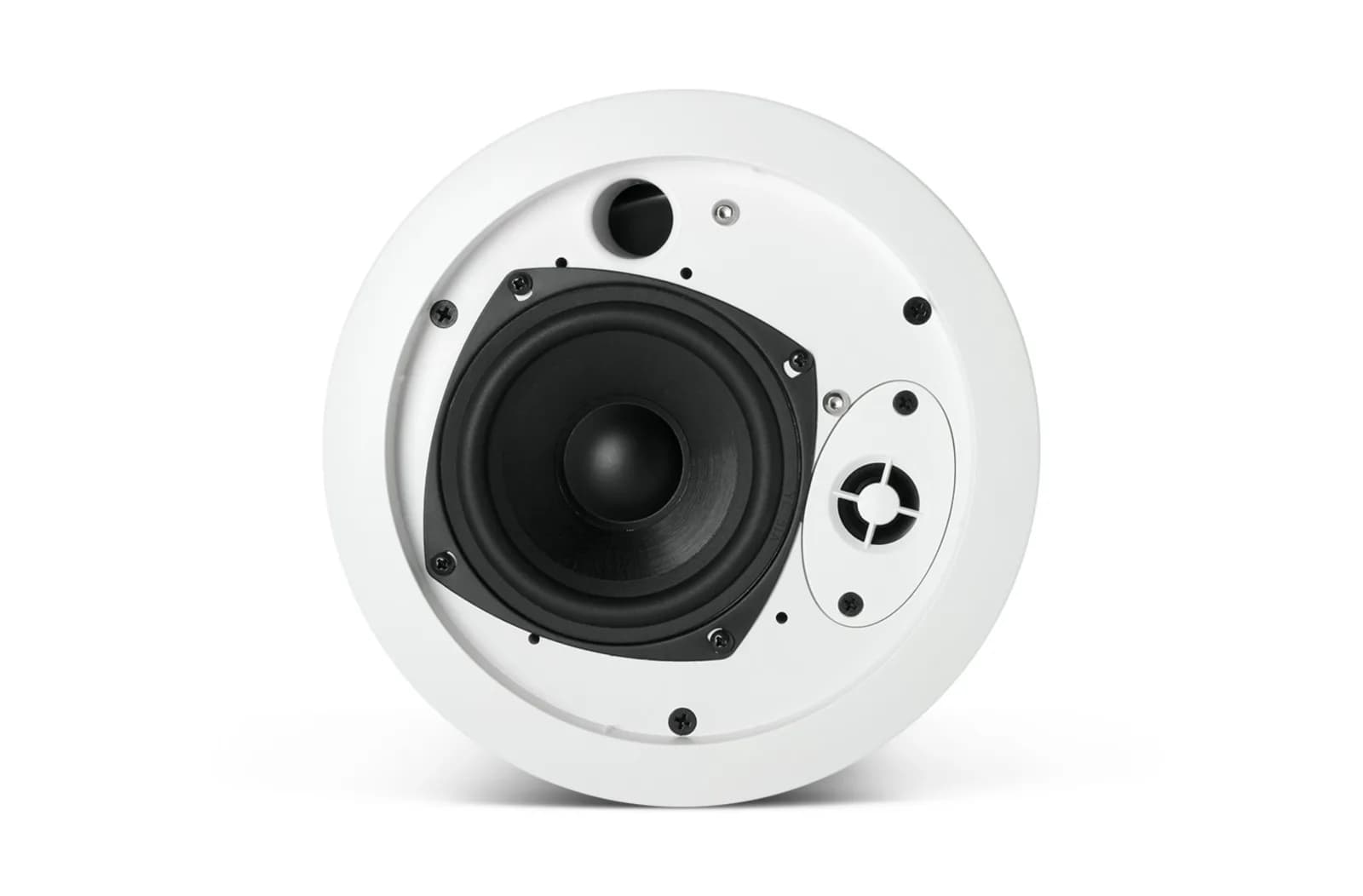

| Drivers | LF Driver: 115 mm (4.5 in) HF Driver: 12 mm (0.5 in) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-O |
| Ceiling Cutout Size | 167 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard |
| Optional Accessories | MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket |
| Plenum Usage | Yes, backcan included |
