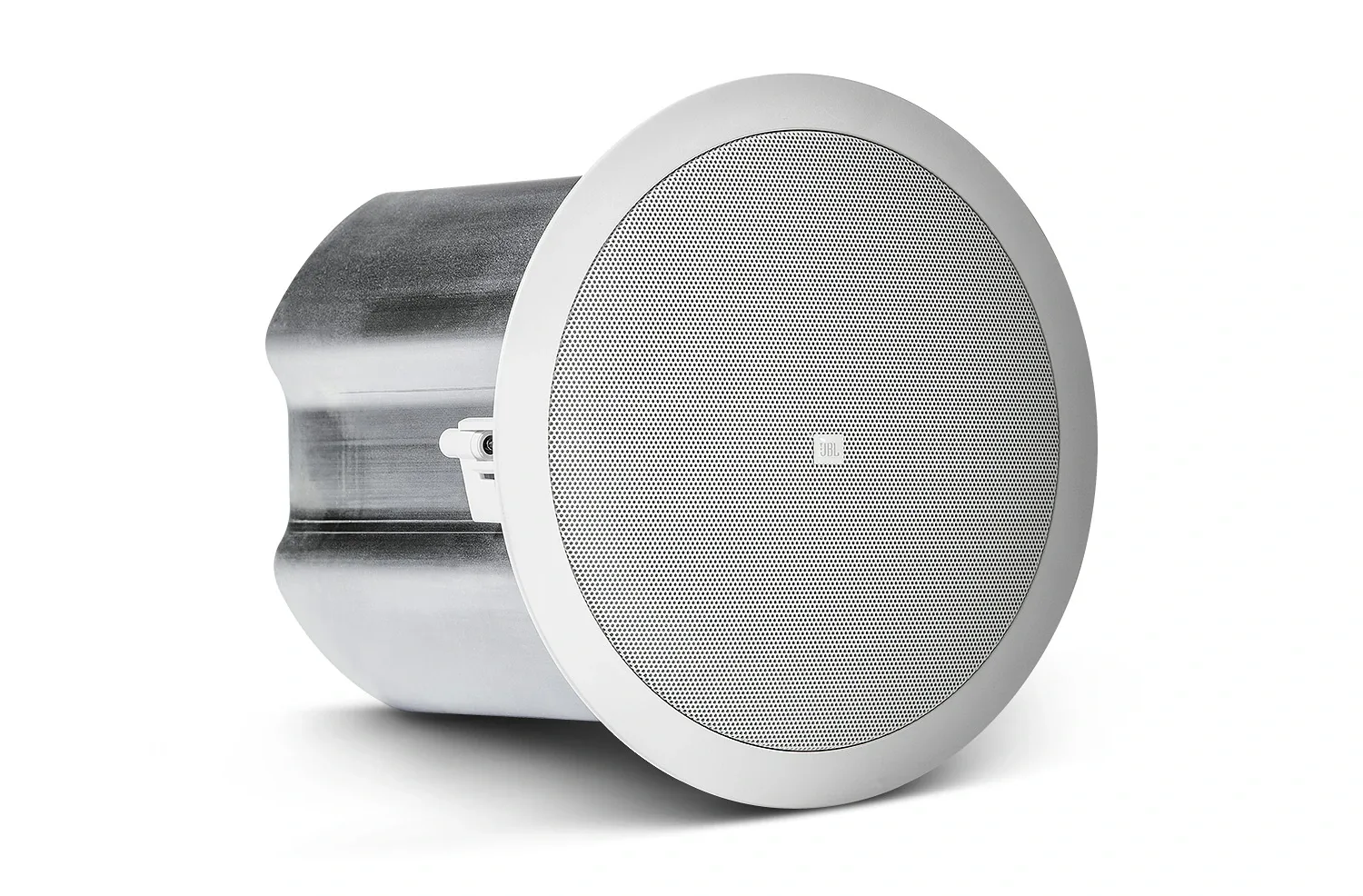

View larger image of JBL Control 16C-VA — official product photo
38 attributes
| Attribute | Value |
|---|---|
| Model | Control 16C-VA |
| Frequency Range (-10dB) | 62 Hz – 20 kHz |
| Frequency Response (±3 dB) | 96 Hz – 15 kHz |
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise (200W peak), 100 hrs |
| Rated Noise Power | 30W (30W tap) |
| Sensitivity | 91 dB (1kHz - 16 kHz) |
| EN54 Sensitivity (@ 4m) | 77 dB (per EN54-24 spectrum and measurement conditions at 4 meters). |
| Coverage Pattern | Frequency (kHz) Horizontal Coverage° Vertical Coverage° |
| 0.5 kHz | 175° 174° |
| 1 kHz | 154° 157° |
| 2 kHz | 148° 149° |
| 4 kHz | 70° 72° |
| Reference Axis | Specification and measurement reference is directly on-axis vertically and horizontally, directly below the speaker as speaker it is installed in the horizontal ceiling plane |
| Directivity Factor (Q) | 7.8 |
| Directivity Index (DI) | 8.2 dB |
| Maximum SPL (1m) | 108 dB (low-impedance, 116 dB peak) 106 dB (top 70V/100 tap) EN54: 91 dB (4m, top 70/100V tap) |
| EN54 Max SPL (@ 4m) | 91 dB (per EN54-24 spectrum and measurement conditions, 30W tap, at 4 meters) |
| Impedance | 8 ohms (in direct/bypass 8 ohm setting); EN54 nominal impedance 7 ohms (based on min Z of 5.7 ohms at 11.2 kHz) 3.8W@70V; 7.5W@100V Tap: 1333Ω 7.5W@70V; 15W@100V Tap: 667Ω 15W@70V; 30W@100V Tap: 333Ω 30W@70V; N/C@100V Tap: 166Ω |
| Transformer Taps | 30W, 15W, 7.5W @ 70V or 100V (plus 3.8W @ 70V only) |
|---|
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
|---|
| Fuse | Thermal Fuse, open temperature 152 degrees C, Rating >= 10A @ 250VAC |
|---|
| Drivers | LF Driver: 165 mm (6.5 in) HF Driver: 19 mm (3/4 in) |
|---|
| Connections | Input +, Input -, Earth (connected to backcan). Ceramic with brass inserts (3.2 mm/0.126 in opening), accommodates 2.5 sq mm / 12 AWG wire. |
|---|
| Gland Nut/Strain Relief | Accommodates round jacketed cables 4.0 mm (0.16 in) through 9.0 mm (0.36 in) |
|---|
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan |
|---|
| Safety Agency | EN54-24:2008 certified Type A; Transformer UL registered per UL1876 |
|---|
| Dimensions | 253 mm diameter x 262 mm from back of baffle to back of gland nut (10.0 in diameter x 10.3 in in depth) |
|---|
| Ceiling Cutout Size | Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included) |
|---|
| Ceiling Thickness Range | Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses |
|---|
| Safety Seismic Attachment | One point, top surface |
|---|
| Net Weight | 3.4 kg (7.4 lbs, one speaker) |
|---|
| Shipping Weight | 11.2 kg (24.7 lbs, pair in master carton) |
|---|
| Included Accessories | C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, grille |
|---|
| Optional Accessories | MTC-16WG high humidity grille MTC-26NC new construction bracket MTC-26MR mud-ring construction bracket MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dogears for 6 speakers) MTC-48TR tile rail for 1200 mm (4 ft) tile spans |
|---|
| Input Connectors | Ceramic block with brass inserts |
|---|
| Color | White |
|---|
| Backcan | formed steel (integrated backcan) |
|---|
| Plenum Usage | Yes, backcan included |
|---|
