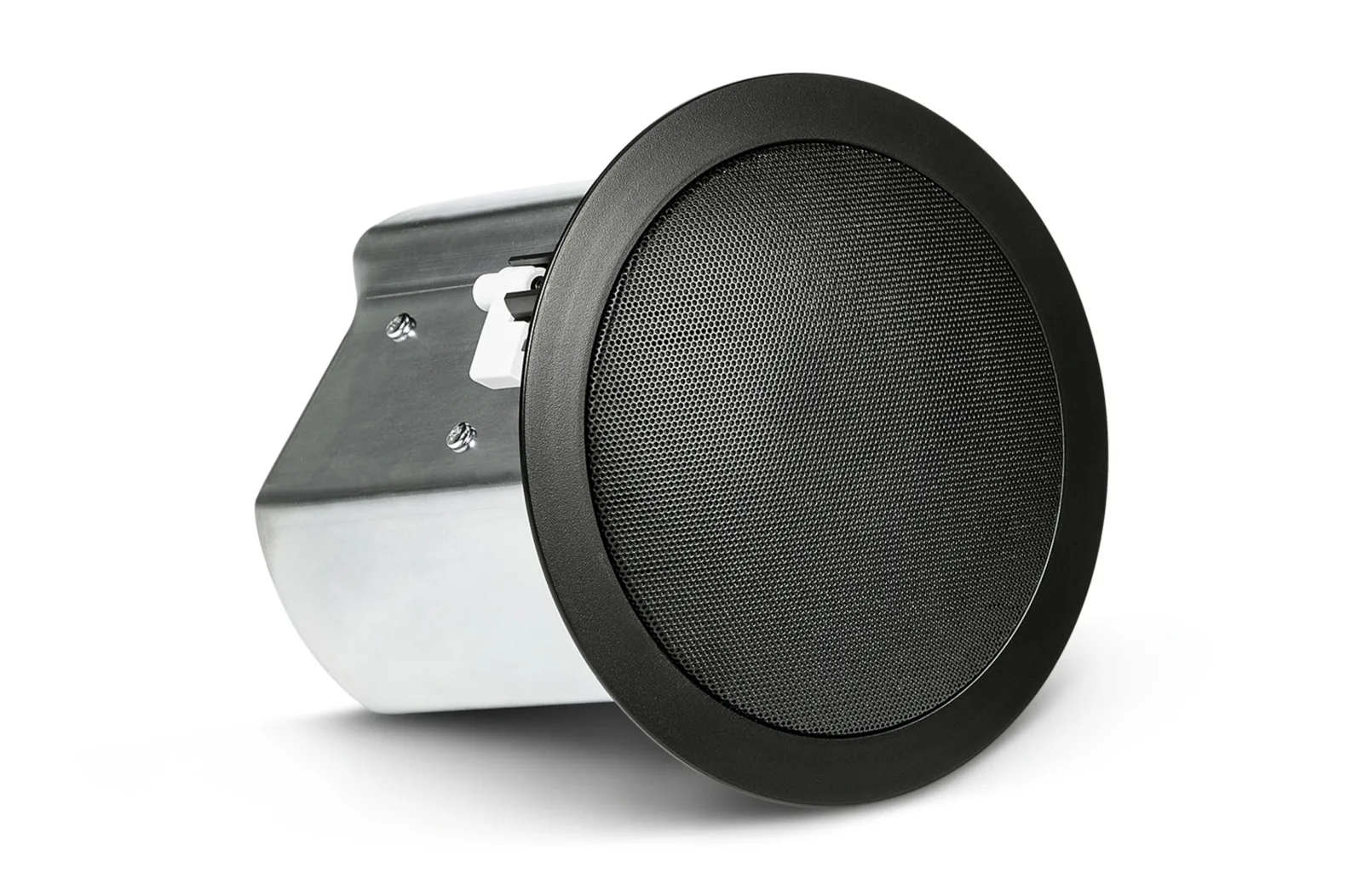

| Model | Control 14C/T |
|---|
| Frequency Range (-10dB) | 74 Hz – 20 kHz |
|---|
| Power Rating | IEC System Long-Term Ratings (low-Z direct): 60 Watts Continuous Program Power 30 Watts Continuous Pink Noise (120W peak), 100 hr |
|---|
| Transformer Taps | 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only) |
|---|
| Frequency Response (±3 dB) | 100 Hz – 20 kHz |
|---|
| Sensitivity | 87 dB (1kHz - 16 kHz) |
|---|
| Coverage Angle | 120° conical |
|---|
| Directivity Factor (Q) | 7.6 |
|---|
| Directivity Index (DI) | 8.1 dB |
|---|
| Maximum SPL (1m) | 101 dB (low-impedance, 108 dB peak) 101 dB (top 70V/100V tap) |
|---|
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
|---|
| Crossover Network | 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
|---|

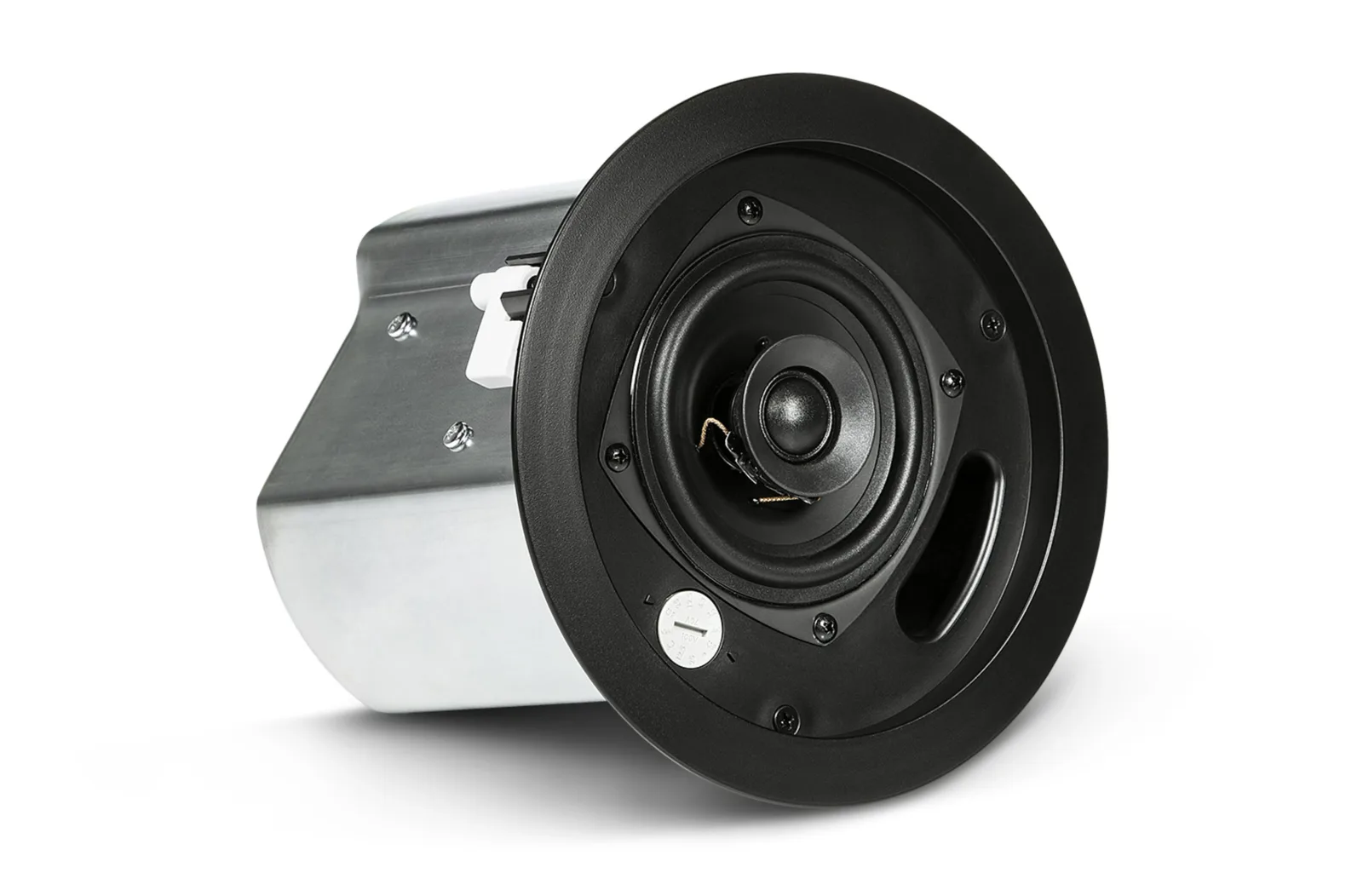

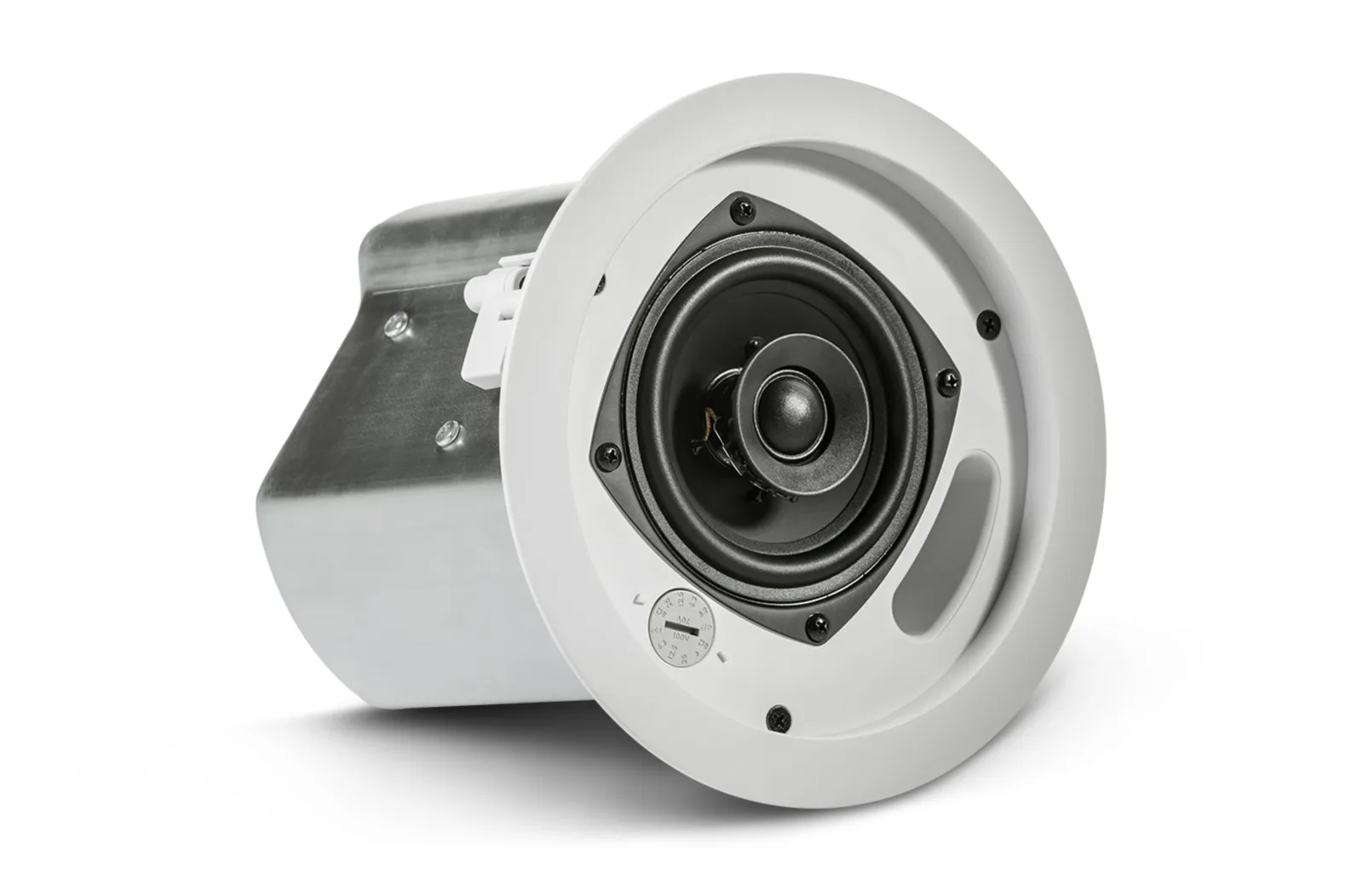

| Drivers | LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (3/4 in) |
|---|

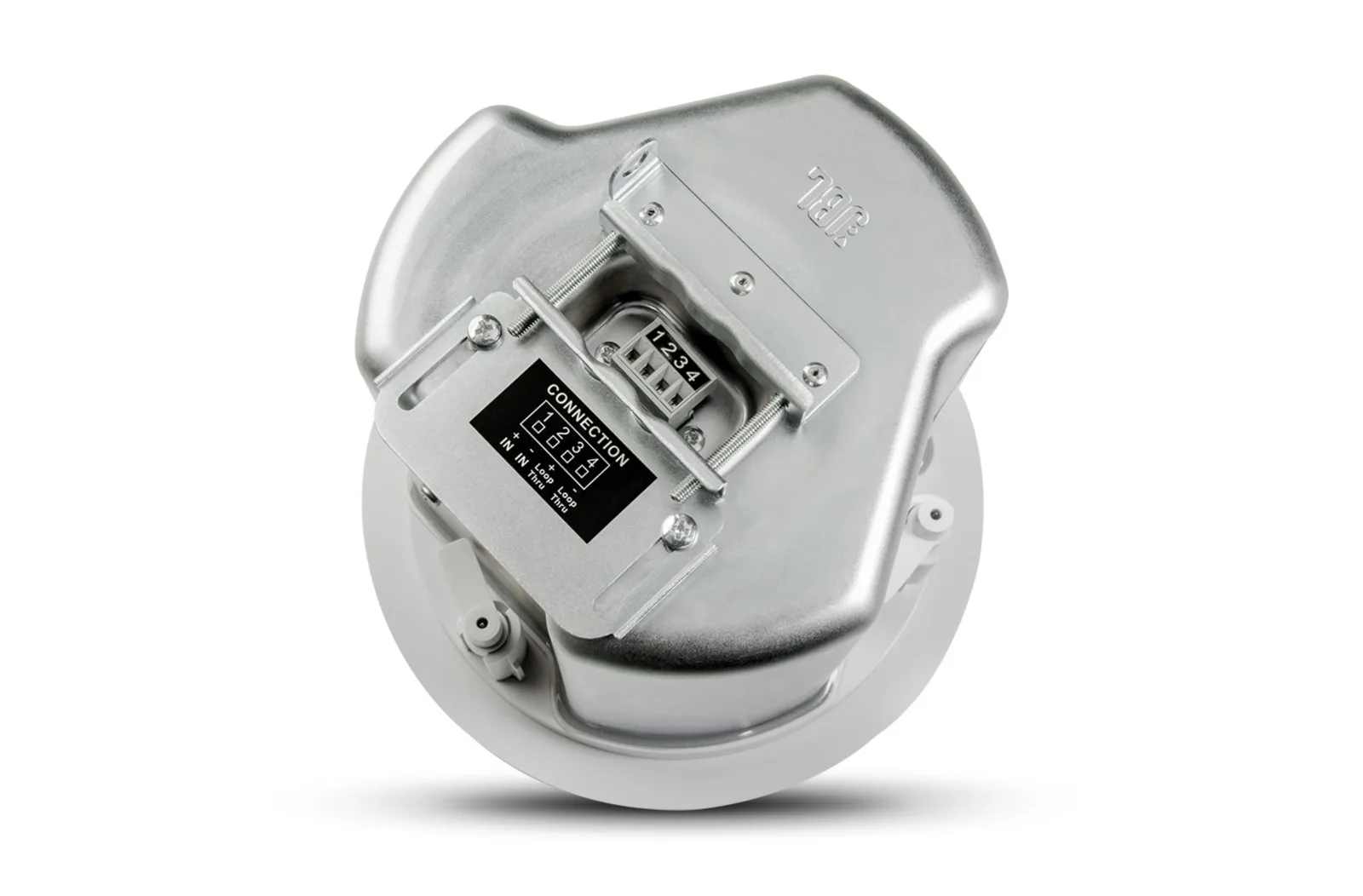

| Input Connectors | Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2) |
|---|
| Connector Wiring | Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
|---|
| Strain Reliefs | Strain relief for two cables or two flex conduits via coupled clamping mechanism |
|---|
| Materials | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan |
|---|
| Safety Agency | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
|---|
