Features

High-quality plywood with wear-resistant and waterproof polyurea paint

Coaxial MF and HF for long-throw response

High-grade durable cabinet design

True 90° (−6 dB) horizontal mid and HF pattern control

High-power SPL: LF 130 dB / 136 dB peak; MF+HF 134 dB / 140 dB peak

High-quality passive crossover network

Textured anti-scratch paint finish

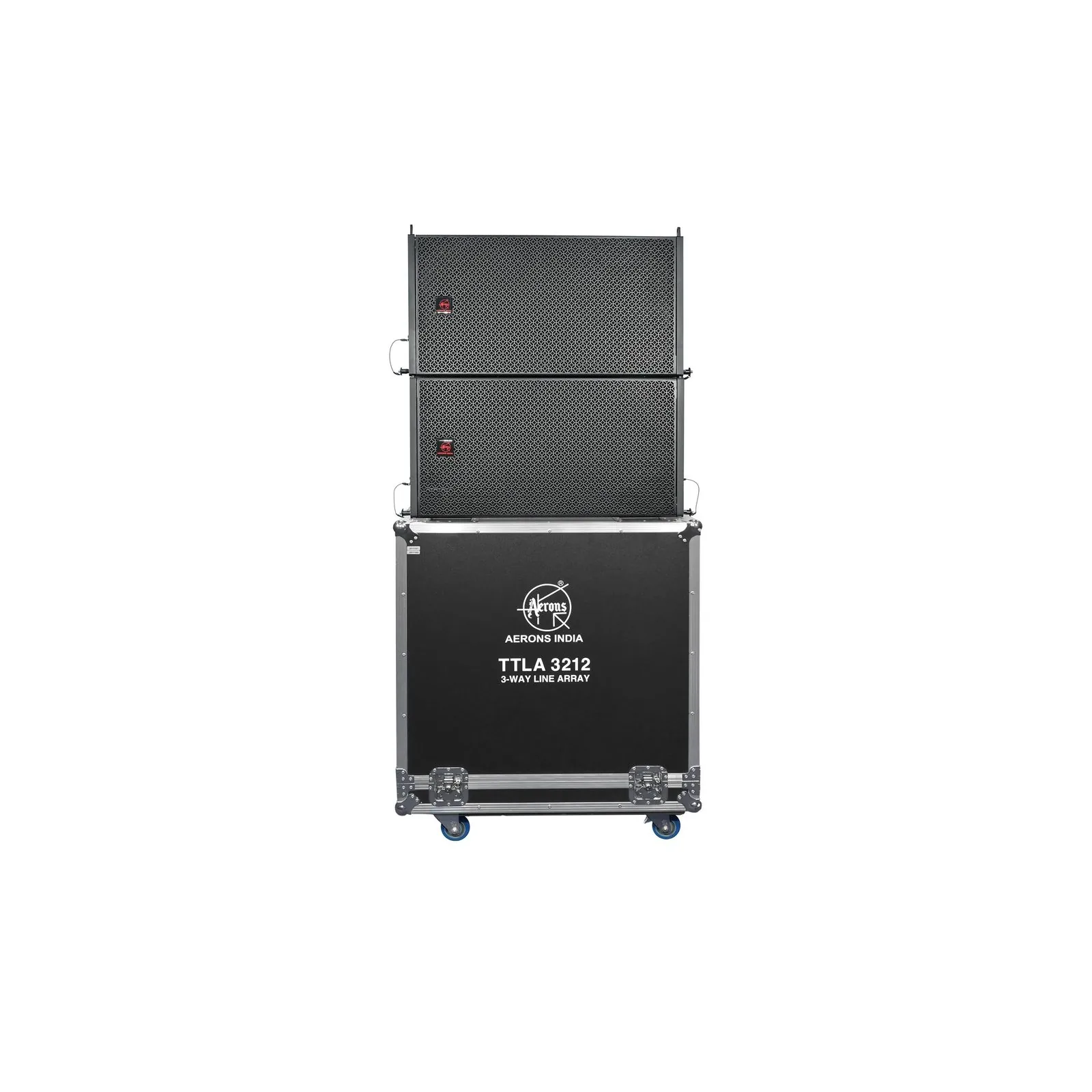

Aluminium-alloy hanging system for flying and stacking

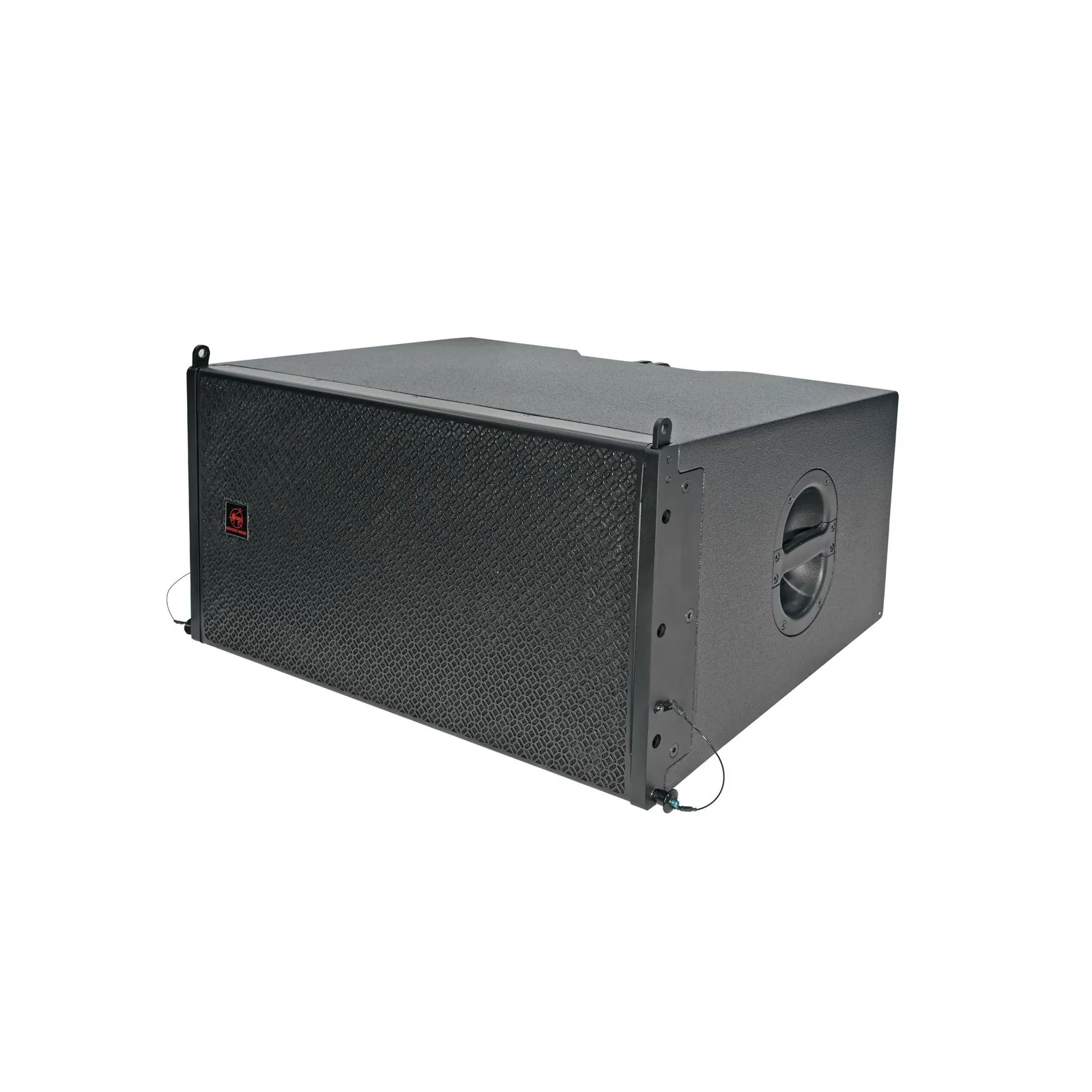

Easy carry handles and heavy-duty protective grille

Attribute

Value

Model

TTLA 3212

Type

Dual 3-way line array

Frequency response

LF 60 Hz–650 Hz; MF+HF 500 Hz–18 kHz

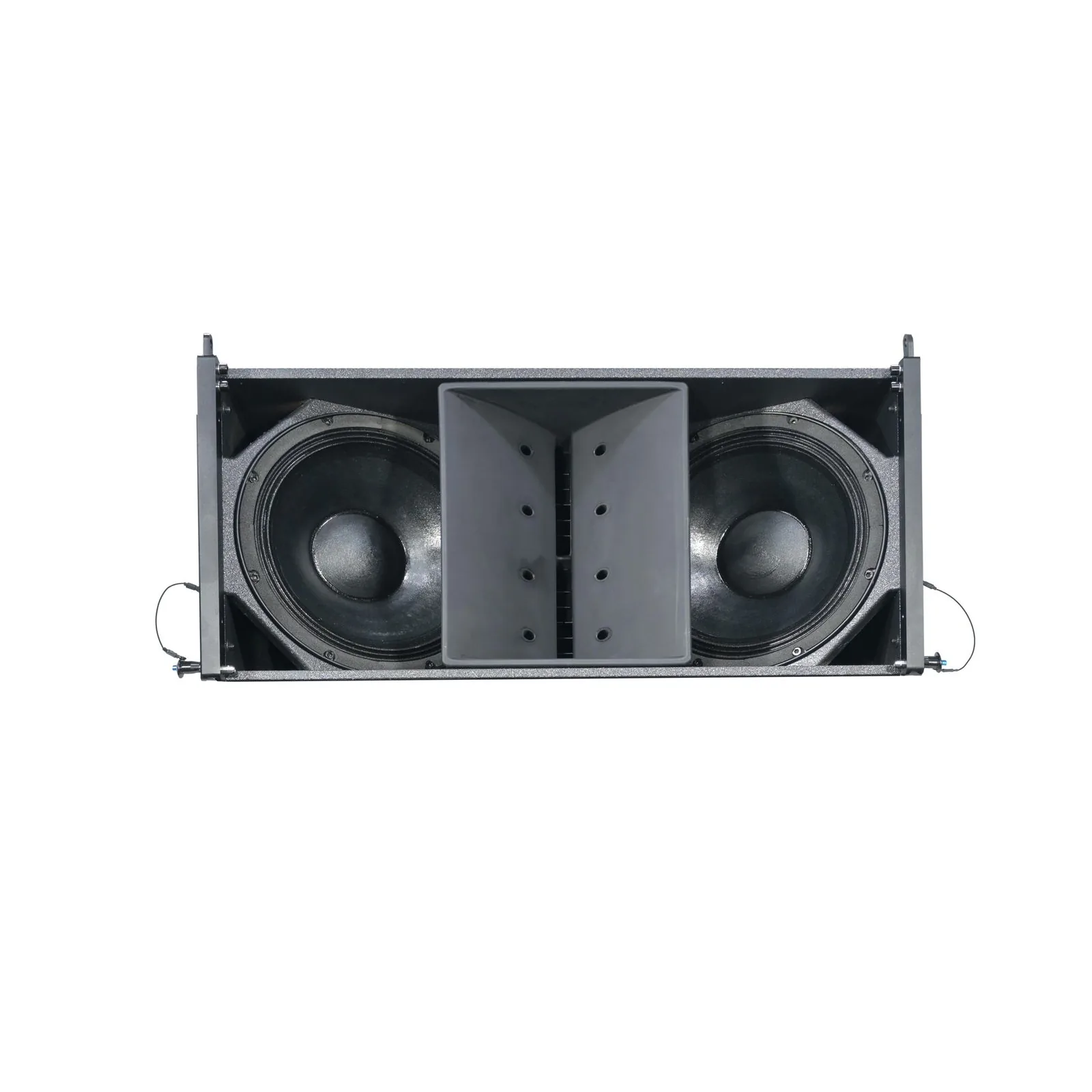

Drivers

2×12" (300 mm)/3.5" voice coil neodymium LF; 2×1.4" (36 mm)/3.5" voice coil neodymium MF; 2×1.4" (36 mm)/1.7" voice coil neodymium HF

Rated power

LF 1300 W; MF+HF 400 W

Peak power

LF 5200 W; MF+HF 1600 W

Sensitivity

LF 101 dB (1 W/1 m); MF+HF 110 dB (1 W/1 m)

SPL

LF 130 dB; MF+HF 134 dB

Maximum SPL

LF 136 dB; MF+HF 140 dB

Impedance

LF 8 Ω; MF+HF 16 Ω

Dispersion (−6 dB)

90° horizontal; vertical varies with array length and configuration

Crossover

600 Hz, 5.8 kHz passive

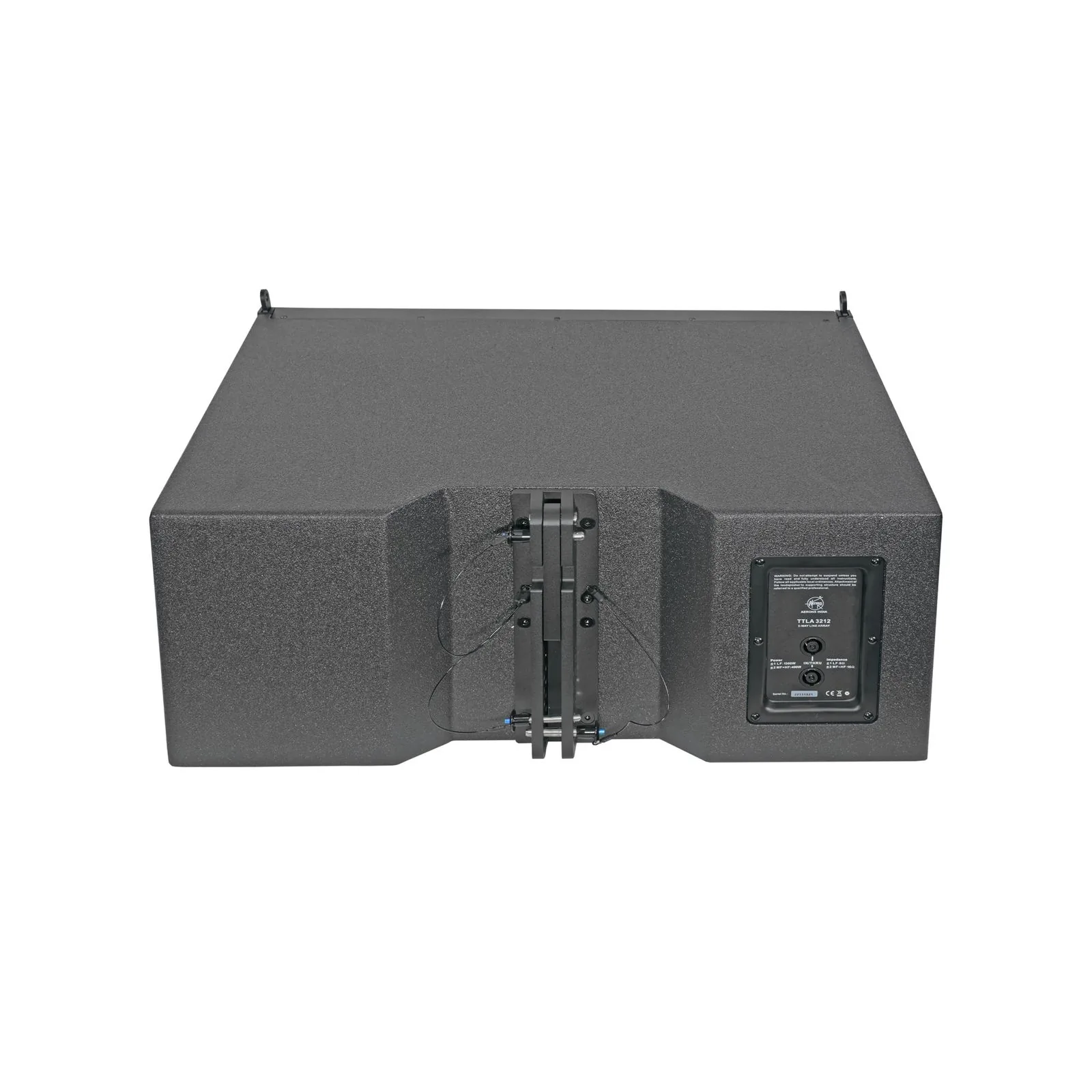

Connectors

2× SpeakON NL4

Dimensions

720 × 510 × 368.5 mm (W × D × H)

Weight

33 kg
