Val Audio WP312 Passive Line Array Loudspeakers

The VAL audio WP312 is a high performance bi-amplified, three-way, all weather line array loudspeaker for use in open to sky outdoor environments. It is designed to meet IP66 stand

Brand: Val AudioModel: WP312

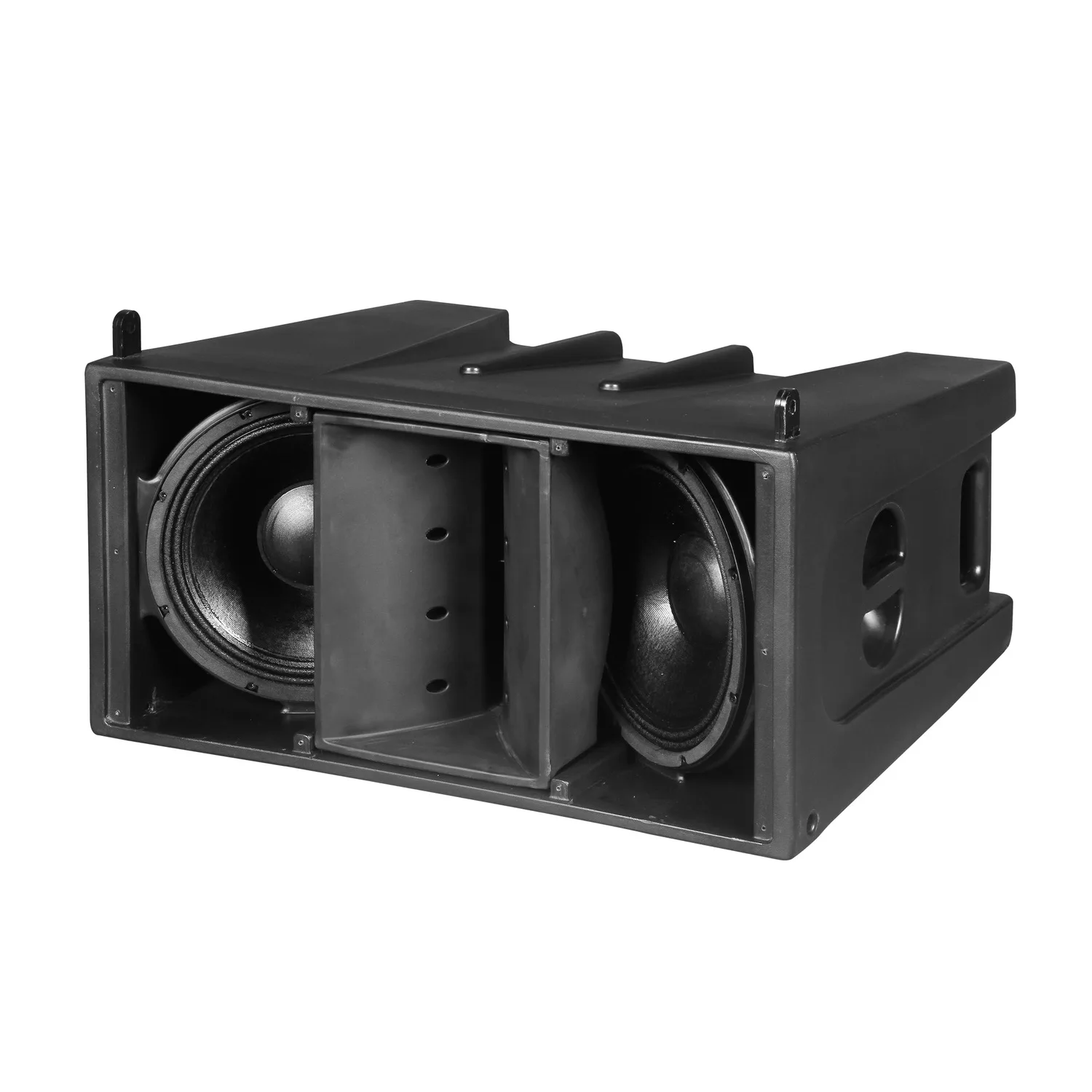

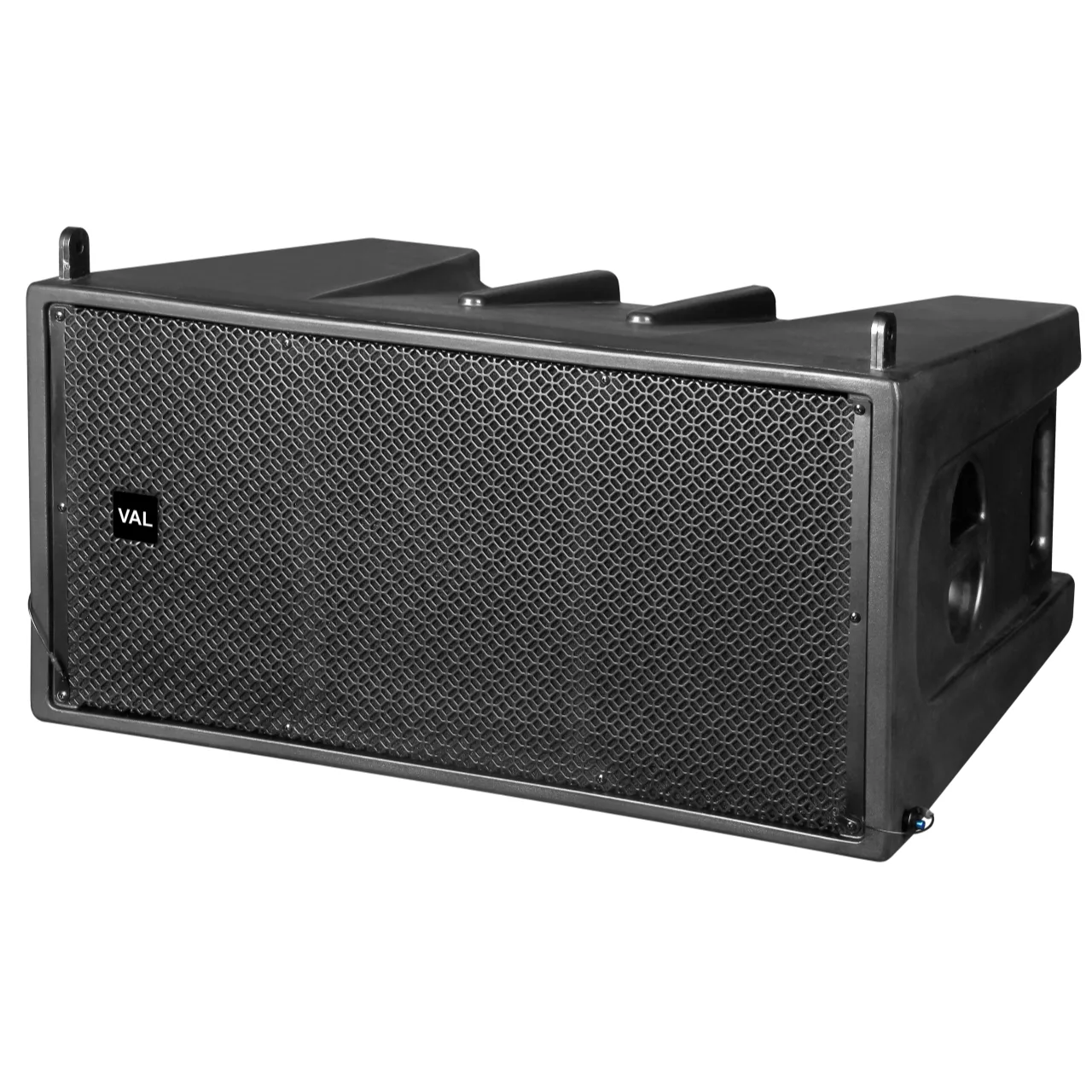

The VAL audio WP312 is a high performance bi-amplified, three-way, all weather line array loudspeaker for use in open to sky outdoor environments. It is designed to meet IP66 standards and uses a special polymer composite injection molded cabinet that is waterproof, dustproof and anti-uv aging. Further it features a special five-layer grille designed of different materials to prevent water and dust ingress. All hanging parts and connecting parts are made of treated stainless steel or aluminum. The WP312 features 2×12” high efficiency, low distortion mid-bass drivers and two coaxial MF/HF neodymium drivers mounted on a special waveguide and horn for accurate coverage. A three-point hanging system ensures complete safety and accuracy.

Features

Dual 12” bi-amplified, three-way weatherized line array loudspeaker Polymer composite injection molded cabinet for all-weather use

Designed to meet IP66 standards Coaxial MF/HF neodymium drivers for maximum efficiency and high fidelity Powder coated Aluminum grille with five layer protection to prevent water & dust ingress

Designed to meet IP66 standards Three-point hanging system to ensure complete safety and accuracy APLICATIONS Outdoor applications requiring long throw and high SPL requirement

Attribute

Value

Model

WP312

Components

2×12” LF, 2×1.4” exit coaxial HF+MF neodymium driver

Power Handling

LF: 800W RMS / 3200W Peak, MF+HF: 300RMS/1200W Peak

Impedance

8 ohm LF, 16 ohm MF+HF

Max SPL

LF 136 dB, MF+HF 140 dB

Description 3 way, bi-amplified line array Power Handling LF

800W RMS / 3200W Peak, MF+HF: 300RMS/1200W Peak Nominal Impedance LF: 8 ohms, MF+HF: 16 ohms Frequency Response (-10dB) LF: 60Hz – 850Hz, MF+HF: 600Hz – 19KHz Average Sensitivity (1W/1m) LF: 101dB, MF+HF: 110dB Maximum SPL LF: 130dB Continuous / 133dB Program / 136dB Peak, MF+HF: 134dB Continuous / 137dB Program / 140dB Peak LF driver 2 x 12’’ (3’’ voice coil) custom ferrite woofer MF+HF driver 2 x 1.4’’ Exit (3.5’’ voice coil MF / 1.7” voice coil HF) Coaxial neodymium driver Crossover Frequency 600Hz Dispersion (-6db) Horizontal: 90°, Vertical coverage: depending on array length Input Connectors 2 x Speakon NL4 Size (WxHxD) 756mm x 374mm x 550mm Net Weight 41.5 Kg Gross Weight 50 Kg

Description

3 way, bi-amplified line array

Nominal Impedance

LF: 8 ohms, MF+HF: 16 ohms

Frequency Response (-10dB)

LF: 60Hz – 850Hz, MF+HF: 600Hz – 19KHz

Average Sensitivity (1W/1m)

LF: 101dB, MF+HF: 110dB

Maximum SPL

LF: 130dB Continuous / 133dB Program / 136dB Peak, MF+HF: 134dB Continuous / 137dB Program / 140dB Peak

LF driver

2 x 12’’ (3’’ voice coil) custom ferrite woofer
