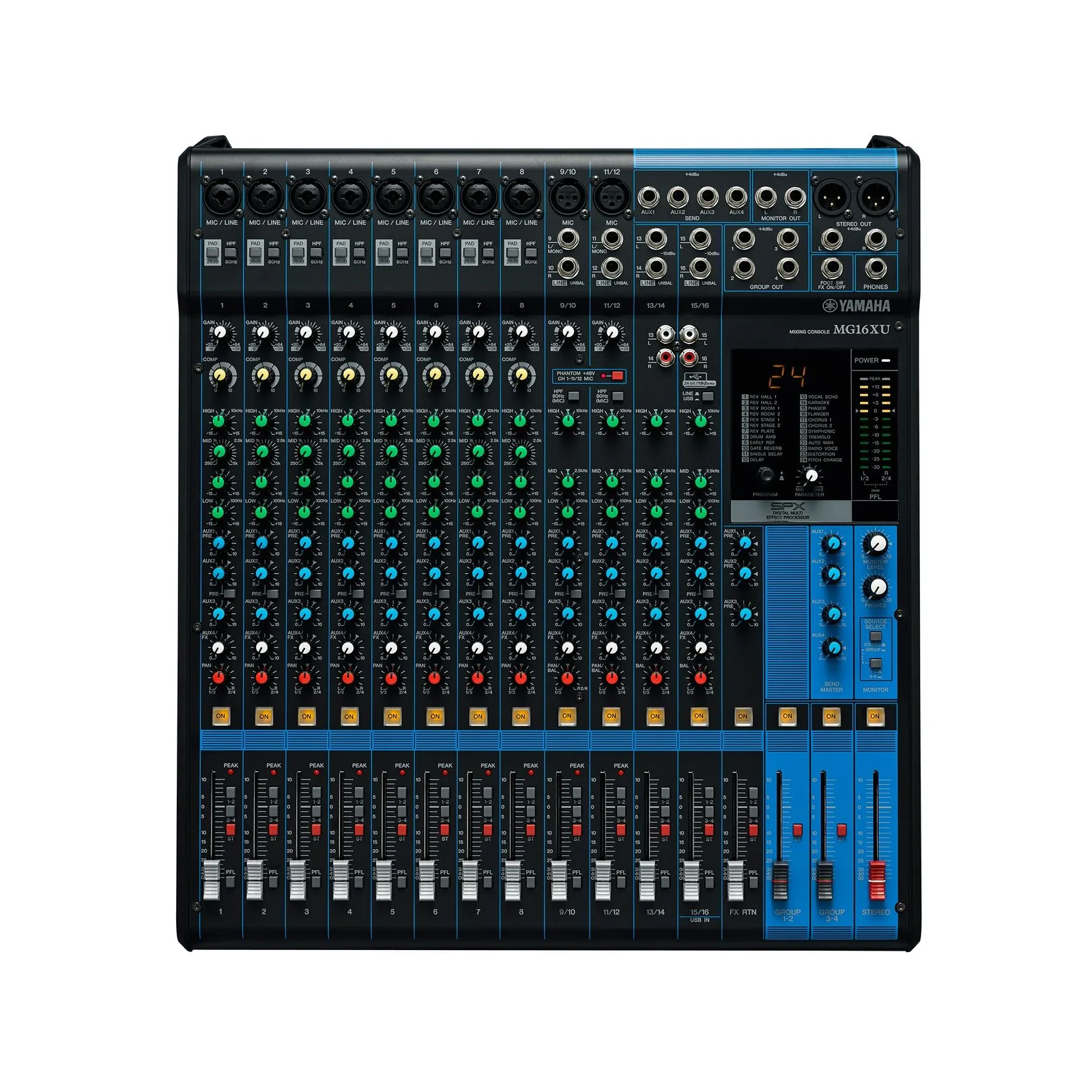

View larger image of Yamaha MG16XU — official product photo
17 attributes
| Attribute | Value |
|---|---|
| Model | MG16XU |
| Mixing channels | 16 (8 mono + 4 stereo) |
| Mic inputs | 10 |
| Phantom power | +48 V |
| On-board processors | SPX algorithm, 24 programs |
| Digital I/O | USB Audio Class 2.0, 24-bit / max 192 kHz, 2 in / 2 out |
| Bus | Stereo: 1, GROUP: 4, AUX: 4 (incl. FX) |
| HPF | 80 Hz, 12 dB/oct (mono/stereo MIC) |
| EQ | 3-band (HIGH 10 kHz, MID 250 Hz–5 kHz sweep on mono / 2.5 kHz on stereo, LOW 100 Hz) |
| Frequency response | +0.5 dB / −1.5 dB (20 Hz to 48 kHz), nominal output @ 1 kHz, GAIN min |
| Total harmonic distortion | 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN min |
| Equivalent input noise | −128 dBu (mono input, Rs 150 Ω, GAIN max) |
| Residual output noise | −102 dBu (STEREO OUT, STEREO master fader min) |
| Power requirements | AC 100–240 V, 50/60 Hz |
| Power consumption | 30 W |
| Dimensions (W × H × D) | 444 × 130 × 500 mm (17.5 × 5.1 × 19.7 in) |
| Net weight | 6.8 kg (15.0 lb) |
