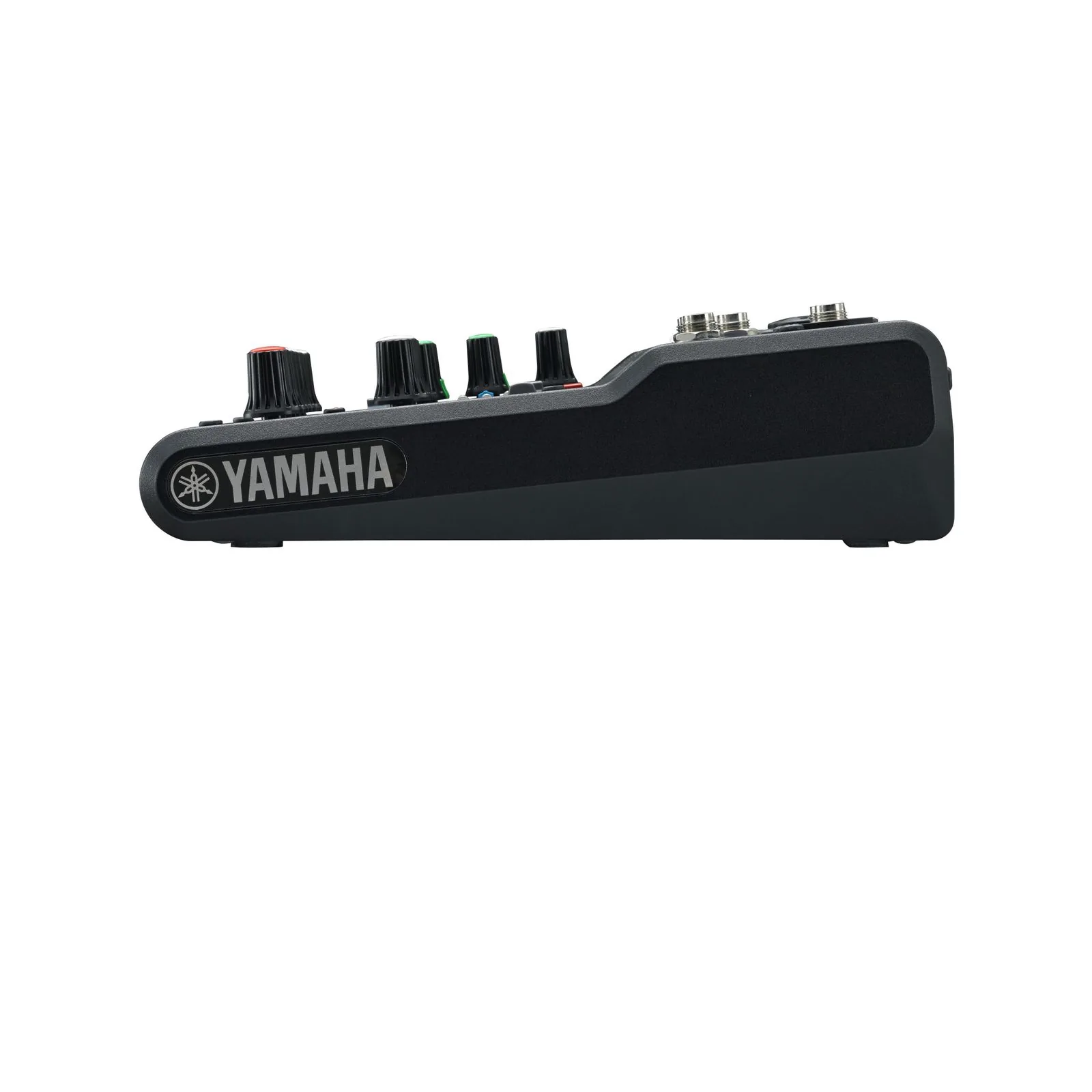

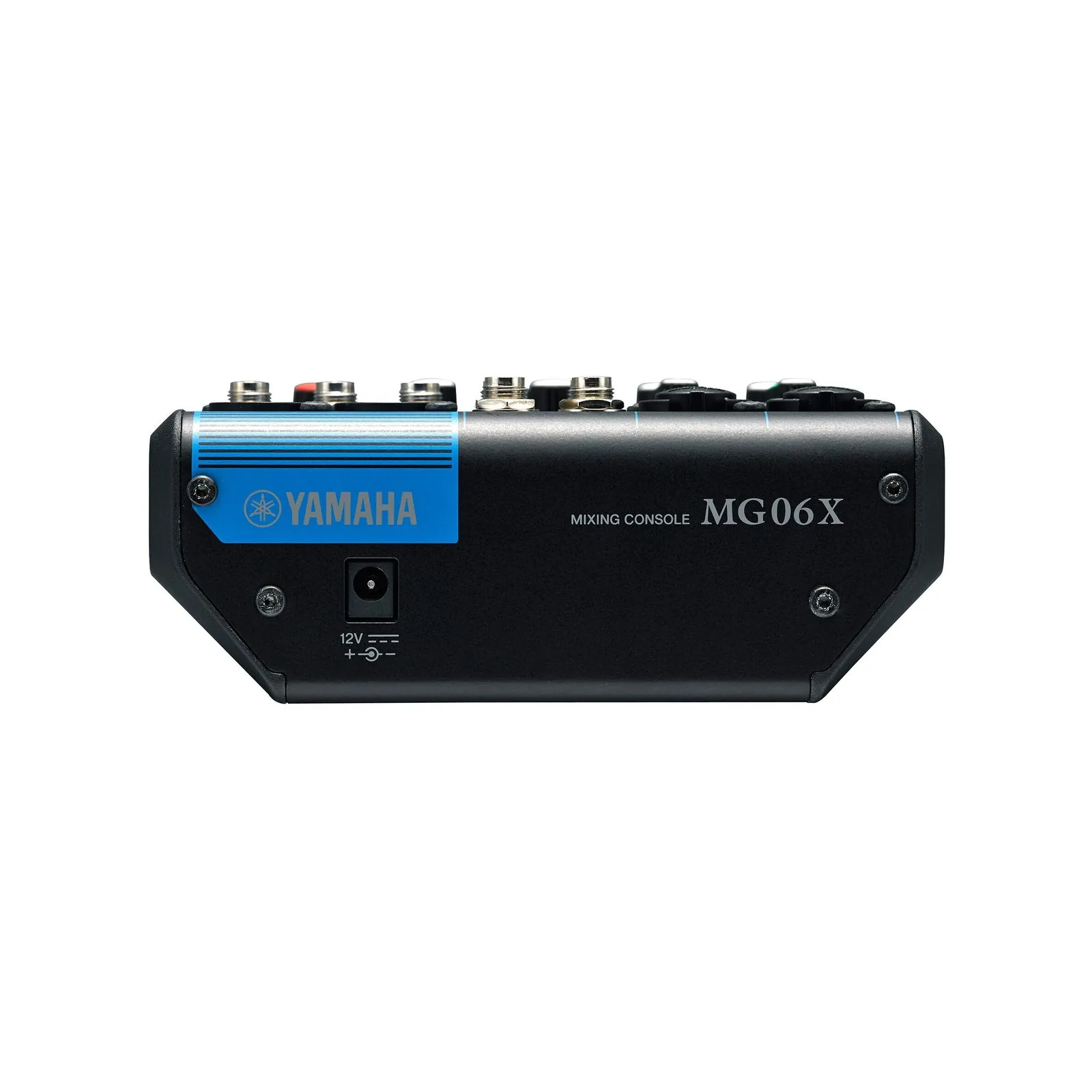

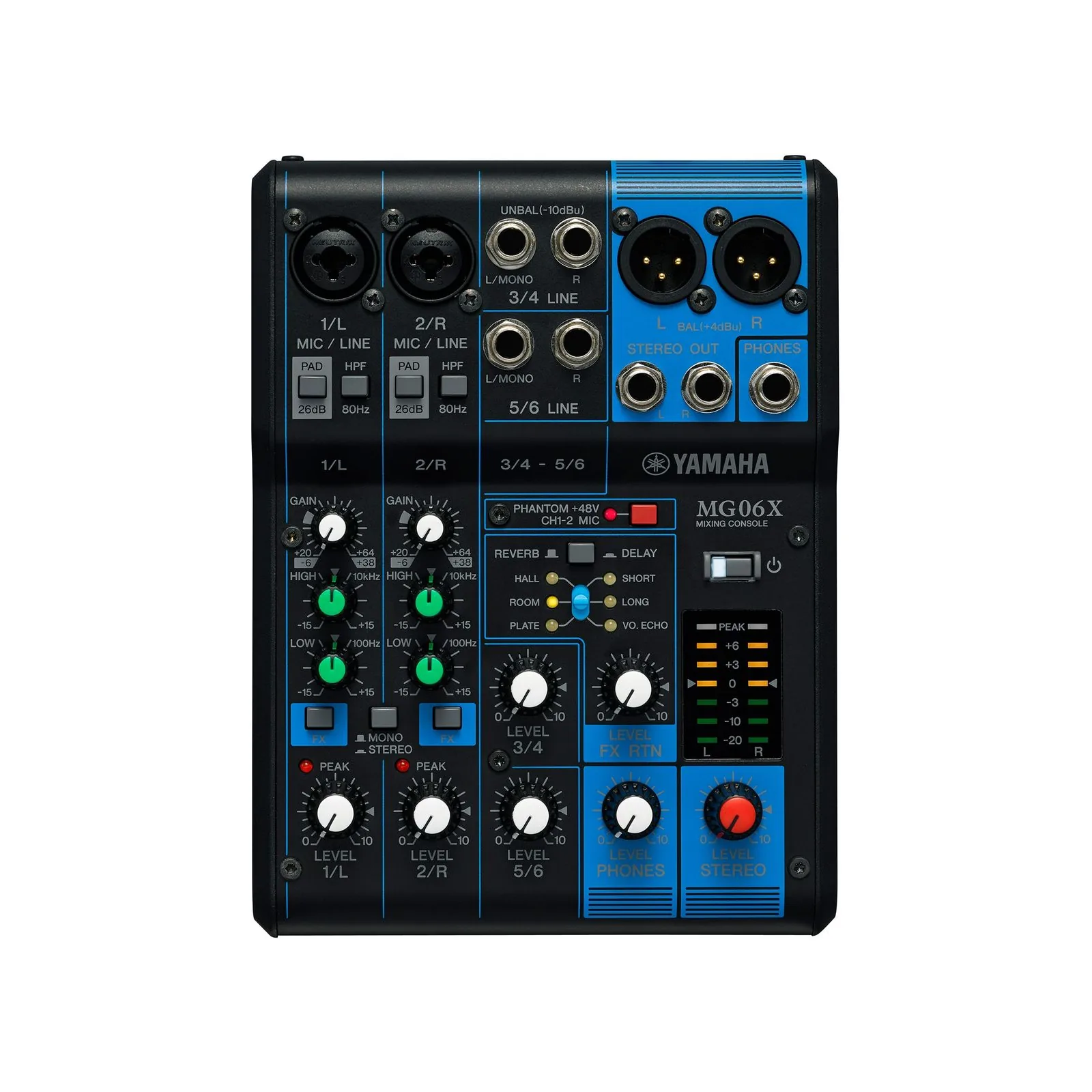

View larger image of Yamaha MG06X — official product photo
16 attributes
| Attribute | Value |
|---|---|
| Model | MG06X |
| Mixing channels | 6 (2 mono + 2 stereo) |
| Mic inputs | 2 |
| Phantom power | +48 V |
| On-board processors | SPX algorithm, 6 programs (REVERB HALL / ROOM / PLATE, DELAY SHORT / LONG / VO.ECHO) |
| Bus | Stereo: 1 |
| HPF | 80 Hz, 12 dB/oct (mono) |
| EQ | 2-band (HIGH 10 kHz, LOW 100 Hz) |
| Frequency response | +0.5 dB / −0.5 dB (20 Hz to 20 kHz), STEREO OUT |
| Total harmonic distortion | 0.01 % @ +8 dBu (20 Hz to 20 kHz), GAIN min |
| Equivalent input noise | −128 dBu (mono input, Rs 150 Ω, GAIN max) |
| Residual output noise | −102 dBu (STEREO OUT, STEREO LEVEL min) |
| Power requirements | PA-130 (DC 12 V / 1.0 A) or MU18 (DC 12 V / 1.5 A), or Yamaha-recommended equivalent |
| Power consumption | 12 W |
| Dimensions (W × H × D) | 149 × 62 × 202 mm (5.9 × 2.4 × 7.9 in) |
| Net weight | 0.9 kg (1.98 lb) |
