View larger image of Yamaha MG10XU — official product photo
17 attributes
| Attribute | Value |
|---|---|
| Model | MG10XU |
| Mixing channels | 10 (4 mono + 3 stereo) |
| Mic inputs | 4 |
| Phantom power | +48 V |
| On-board processors | SPX algorithm, 24 programs |
| Digital I/O | USB Audio Class 2.0, 24-bit / max 192 kHz, 2 in / 2 out |
| Bus | Stereo: 1, AUX[FX]: 1 |
| HPF | 80 Hz, 12 dB/oct (mono) |
| EQ | 3-band (HIGH 10 kHz, MID 2.5 kHz, LOW 100 Hz) |
| Frequency response | +0.5 dB / −1.0 dB (20 Hz to 48 kHz), nominal output @ 1 kHz, GAIN min |
| Total harmonic distortion | 0.02 % @ +14 dBu (20 Hz to 20 kHz), GAIN min |
| Equivalent input noise | −128 dBu (mono input, Rs 150 Ω, GAIN max) |
| Residual output noise | −102 dBu (STEREO OUT, STEREO LEVEL min) |
| Power requirements | PA-10 (AC 38 VCT, 0.62 A) or Yamaha-recommended equivalent |
| Power consumption | 22.9 W |
| Dimensions (W × H × D) | 244 × 71 × 294 mm (9.6 × 2.8 × 11.6 in) |
| Net weight | 2.1 kg (4.63 lb) |
Yamaha MG20XU
Allen & Heath

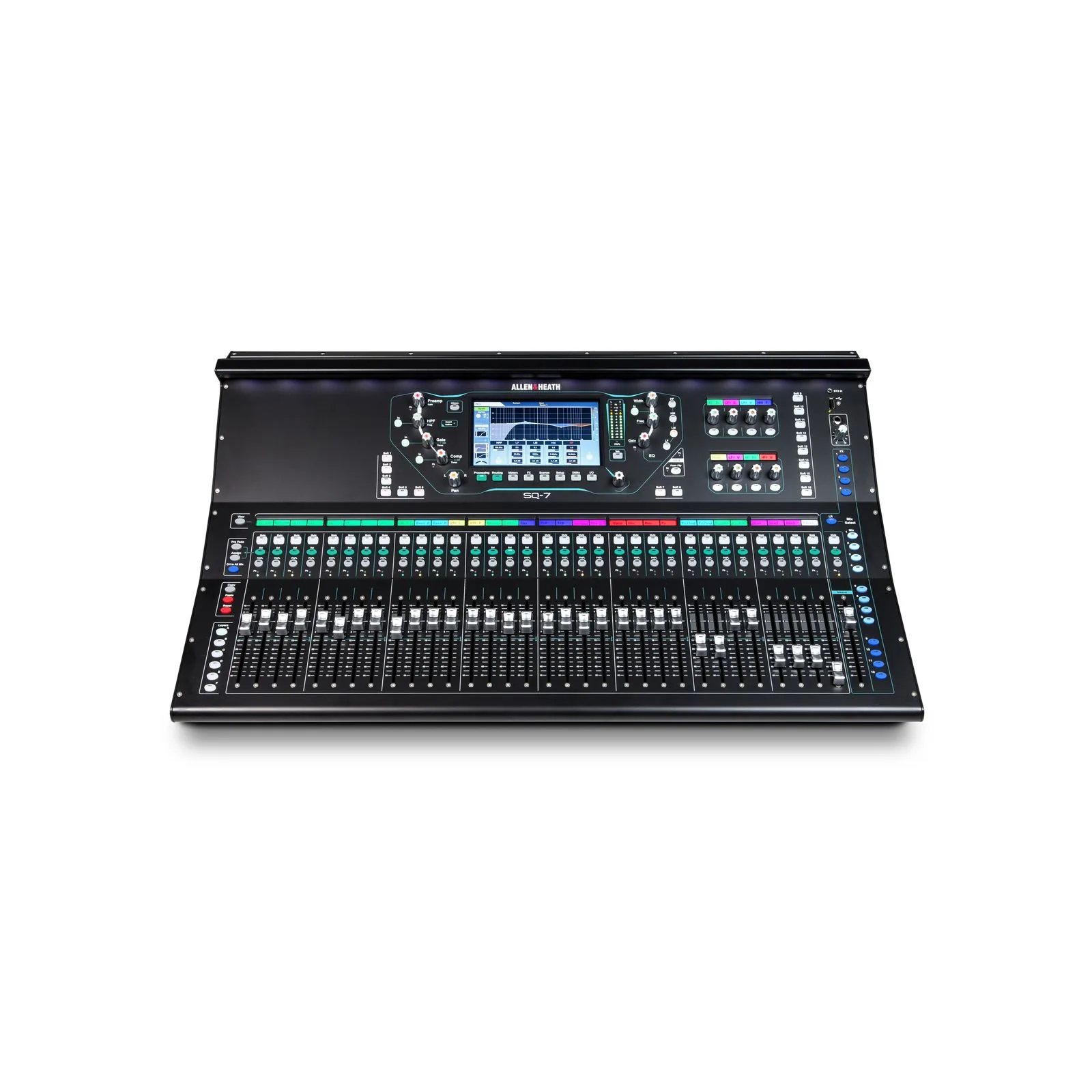

Allen & Heath SQ-7
