Features

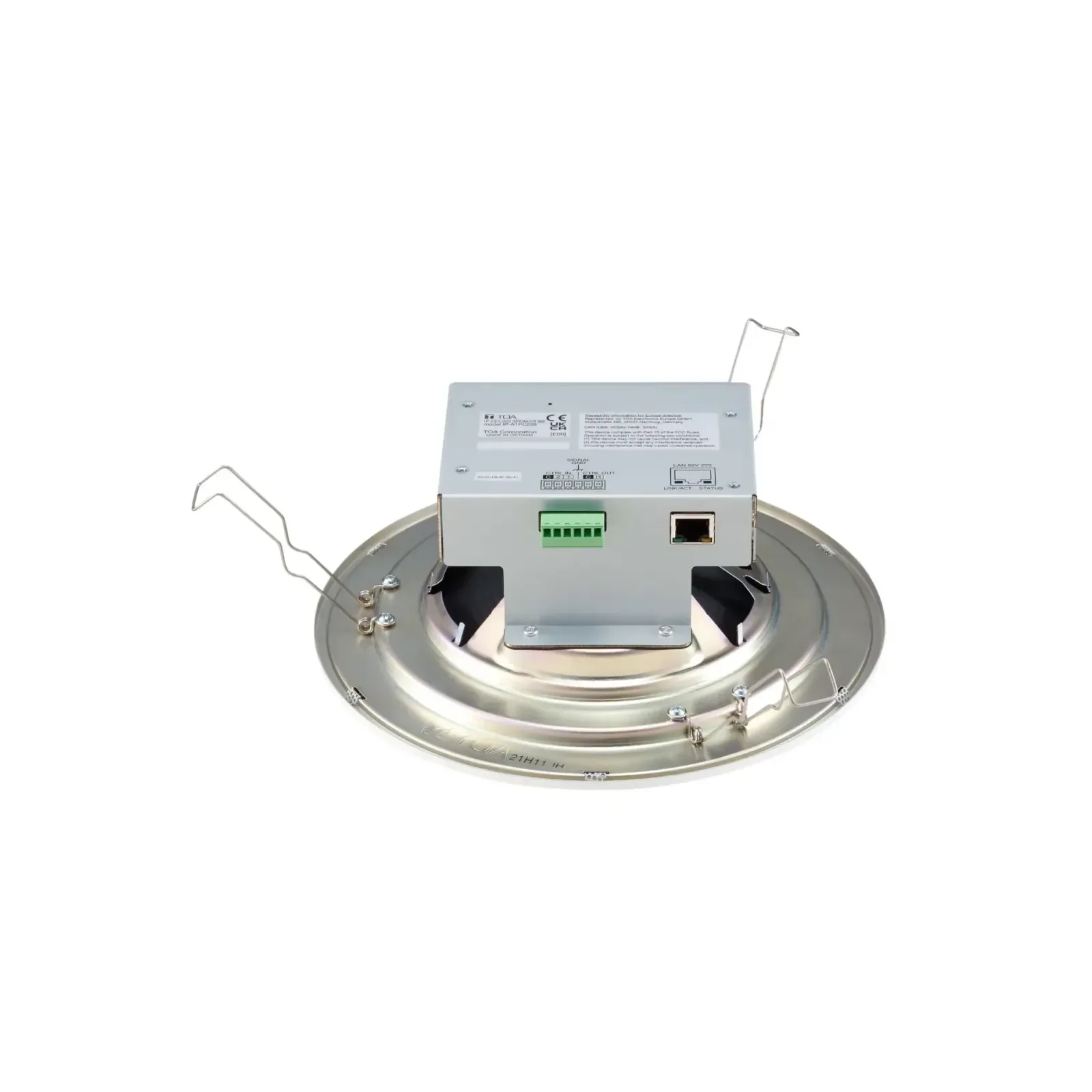

16cm (6”) cone-type speaker for in-ceiling installations

Receive SIP audio, ONVIF and Multicast

Local broadcast using internal audio files

8W built-in amplifier

2 control inputs and 1 control output

HTTP/HTTPS commands (receive)

Audio file storage (20 files, total 80MB, WAV/MP3)

Playback programs (Repeat, Weekly Timer)

PoE powered

Attribute

Value

Model

IP-A1PC238

Power Source

PoE (IEEE802.3af Class 3)

Power Consumption

12.95 W (rated output) 5 W (IEC62368-1)

Amplifier Rated Output

8 W

Frequency Response

60 Hz - 20 kHz (peak - 20 dB)

Sensitivity

94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)

Max. SPL

103 dB (8 W, 1 m)

Speaker Component

16 cm (6") cone-type

Audio Codec

Opus, PCMU (G.711u), PCMA (G.711a), G.722

Broadcasting Mode

SIP Broadcasting/SIP calling Mode: Opus/PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: PCMU Internal Message Broadcasting Mode Local Broadcasting Mode: Output from LINE/MIC IN to SPEAKER OUT Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.

Sound Source Files

Max. 20 files (File storage capacity: 80 MB total) Supported file formats: WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time) Interval time: 0 - 99 sec, Delay time: 0 - 99 sec Trigger: Control Input or Remote API (HTTP/HTTPS)

Chime

Pre and post chime tones (applied for Incoming SIP Call and internal audio file broadcast) Preset chime tone x 5, editable tone x 2

Network I/F

100BASE-TX, Auto MDI/MDI-X, RJ45 connector

Network Protocol

IP, TCP, UDP, TLS, HTTP, HTTPS, RTP, SRTP, RTSP, RTCP, SRTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS, SIP-TLS, DHCP
