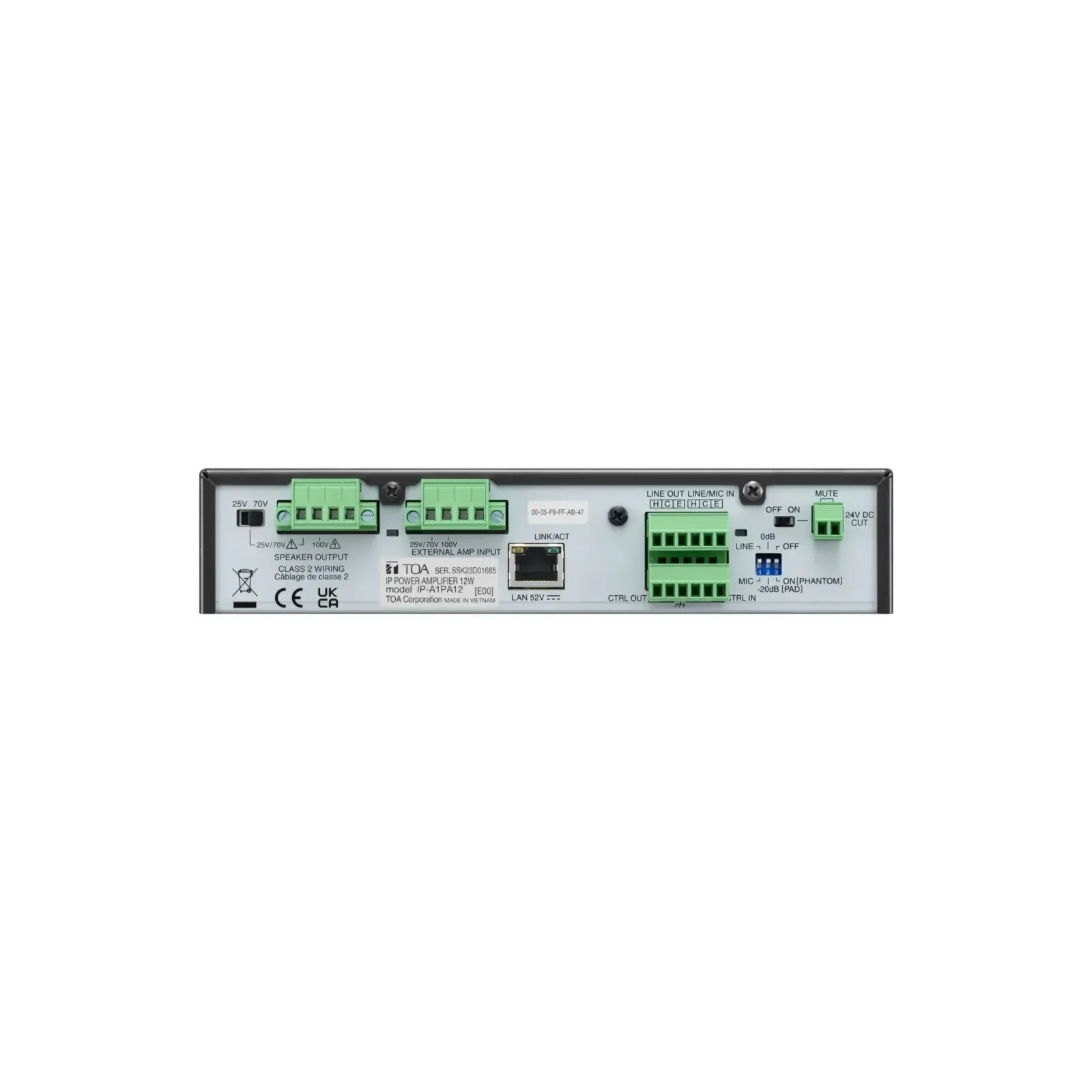

View larger image of TOA IP-A1PA12 — official product photo
32 attributes
| Attribute | Value |
|---|---|
| Model | IP-A1PA12 |
| Power Source | PoE+ (IEEE802.3at Class 4) |
| Power Consumption | 25 W (rated output) 6 W (IEC62368-1) |
| Amplifier Rated Output | 12 W |
| Frequency Response | 100 Hz - 20 kHz |
| Audio Codec | Opus, PCMU (G.711u), PCMA (G.711a), G.722 |
| Audio Delay Time | Min. 100 ms (*1) |
| Broadcasting Mode | SIP Broadcasting/SIP calling Mode: Opus/PCMU/PCMA/G.722, P2P/SIP Server Connection Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports VMS Broadcasting Mode: PCMU Internal Message Broadcasting Mode Local Broadcasting Mode: Output from LINE/MIC IN to SPEAKER OUT Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function. |
| Sound Source Files | Max. 20 files (File storage capacity: 80 MB total) Supported file formats WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo Repeat playback: Playcount (1 - 10 times), Duration (5 - 3600 sec) or Timer (from Start time to End time) Interval time: 0 - 60 sec, Delay time: 0 - 30 sec Trigger: Control Input or Remote API (HTTP/HTTPS) |
| Chime | Pre and post chime tones (applied for Incoming SIP Call and internal audio file broadcast) Preset chime tone x 5, editable tone x 2 |
| Network I/F | 100BASE-TX, Auto MDI/MDI-X, RJ45 connector |
| Network Protocol | IP, TCP, UDP, TLS, HTTP, HTTPS, RTP, SRTP, RTSP, RTCP, SRTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS, SIP-TLS, DHCP |
| Audio Input | 1 channel, electronically-balanced, 10 kΩ LINE/MIC selectable (Rated input: LINE: 0 dB (*2), MIC: -60 dB (*2) PAD function (-20 dB (*2), Phantom power ON/OFF (12 V DC), volume adjustable removable terminal block (6 pins) |
| Audio Output | 1 channel, electronically-balanced, 600 Ω or less Rated input: 0 dB (*2), removable terminal block (6 pins) |
|---|
| Control Input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins) |
|---|
| Control Output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 150 mA or less, removable terminal block (6 pins) |
|---|
| Speaker Output | High impedance 100 V line (830 Ω), 70 V line (420 Ω), 25 V line (52 Ω) N (100 V), N (70 V/25 V switchable), R, C removable terminal block (4pins) |
|---|
| External Amplifier Input | High impedance 100 V line, 70 V line, 25 V line N (100 V), N (70 V/25 V switchable), R, C removable terminal block (4pins) |
|---|
| Amplifier Switching Control | Relay switching Swithced to external amplifier when the following functions and operations are activated: mute control input, control input, system mute, remote API control and the unit power off. |
|---|
| Mute Control Input | 1 channel, 24 V DC cut-off signal, control current: 5 mA or less, non-polar, removable terminal block (2 pins) |
|---|
| Indicator | STATUS (green/blue/yellow/red), LINE/MIC IN (green/red), OUTPUT (green), LINK/ACT (green) |
|---|
| Clock Accuracy | ±13 seconds per month |
|---|
| Time Adjustment | Manual time setting, Time adjustment by NTP server |
|---|
| Power Outage Protection Period | 24 hours (RTC time retention, at 40 °C (104 °F) |
|---|
| Feature Expansion | Device Connectivity Cloud Service (*3) |
|---|
| Operating Temperature | -30 °C to +55 °C (-22 °F to 131 °F) |
|---|
| Operating Humidity | 90 %RH or less (no condensation) |
|---|
| Finish | Front case: Surface-treated steel plate, black, paint Rear chassis: Surface-treated steel plate |
|---|
| Dimensions | 210 (W) x 44 (H) x 81.5 (D) mm (8.27" x 1.73" x 3.21") (excluding projection) |
|---|
| Weight | 940 g (2.07 lb) |
|---|
| Included Accessories | Removable terminal plug (6 pins, preinstalled on the unit) x 2, Removable terminal plug (2 pins, preinstalled on the unit) x 1, Rubber feet x 4, Mounting screw (M3 x 6) x 4 |
|---|
| Optional Accessories | Rack mounting bracket: MB-15B-BK (for rack mounting one IP-A1PA12 unit) (*3) Wall mounting bracket: MB-15B (for wall mounting) |
|---|
