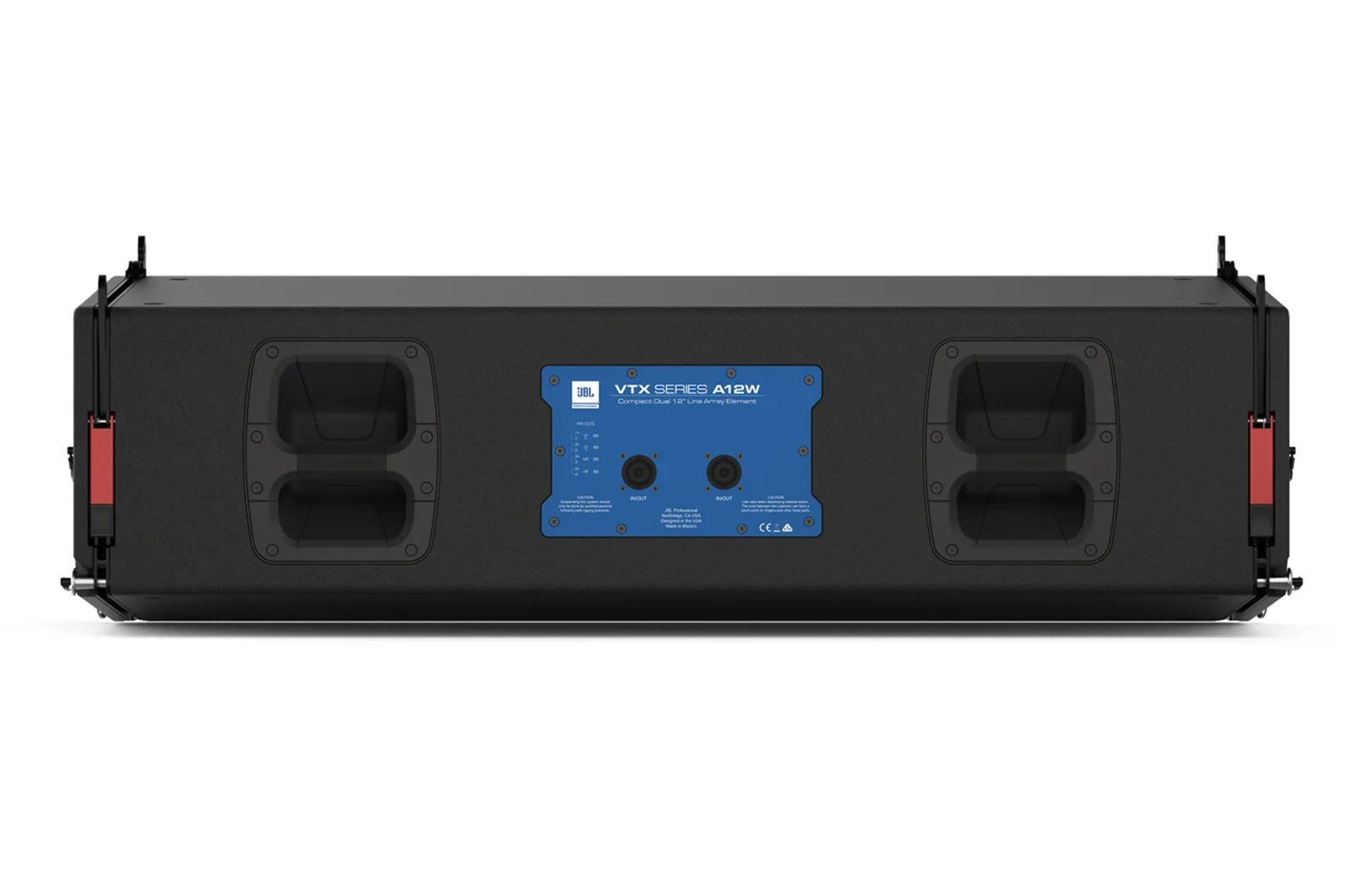

JBL VTX A12W Dual 12-inch Line Array Loudspeaker | 120-Degree Dispersion

The JBL A Series is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. JBL VTX A12W was designed to address the requests from rental companies, FOH engineers and tour sound production crews who appreciated the advances introduced in the VTX A12, but needed wider horizontal coverage for their applications. Like the VTX A12, next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage—and now a 120-degree dispersion pattern ensures coverage for a variety of applications. VTX A12W features the same patented JBL rigging mechanism and redesigned suspension system to streamline deployment and setup, and can be flown independently or in mixed configurations with the VTX A12. Plus, VTX A12W retains the same physical design, compact size and reduced weight found in the original A12. The JBL A Series isn’t just a superior line array—it’s a completely new way to approach tour sound.

Features

120-degree dispersion pattern for wide horizontal coverage

New and improved JBL transducers for the best output per weight

Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels

Redesigned Radiation Boundary Integrator (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion and 120-degree coverage down to 250 Hz

Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion

Best-in-class rigging for streamlined, rapid deployment

Full-face grill for superior weatherization and refined aesthetics

New transport cart and frame for simplified transport and setup

Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance

Full integration with JBL system control and prediction software

Lightweight design

Fully compatible with VTX A12

Attribute

Value

Model

VTX A12W

Frequency Range (-10dB)

46 Hz - 19k Hz (Preset: VTX A12W)

Horizontal Coverage (-6 dB)

120 degrees nominal (250 Hz - 18k Hz)

Max. SPL

146 dB (Preset: VTX A12W)

System Amplification

Crown Audio I-Tech HD

Nominal Impedance

LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms

LF Driver

(2) JBL 2264H 12-inch Neodymium Differential Drive woofer

MF Driver

(4) JBL 2165H 5.5-inch Neodymium Differential Drive woofer

HF Driver

(3) JBL 2423K 2-inch annular diaphragm compression driver

Enclosure

Finnish birch plywood, Black DuraFlex finish, integral recessed handles

IP Rating

IP55 EN (60529)

Suspension / Mounting

High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles

Inter-enclosure Angle

0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10

Dimensions (H x W x D)

330 mm x 1118 mm x 495 mm 13 in x 44 in x 19.5 in

Net Weight (each)

60.8 kg (134.0 lb)
