JBL VTX A12 Dual 12-inch Line Array Loudspeaker | 90-Degree Dispersion

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.

Features

New and improved JBL transducers for the best output per weight

Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels

Redesigned Radiation Boundary Integrator (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz

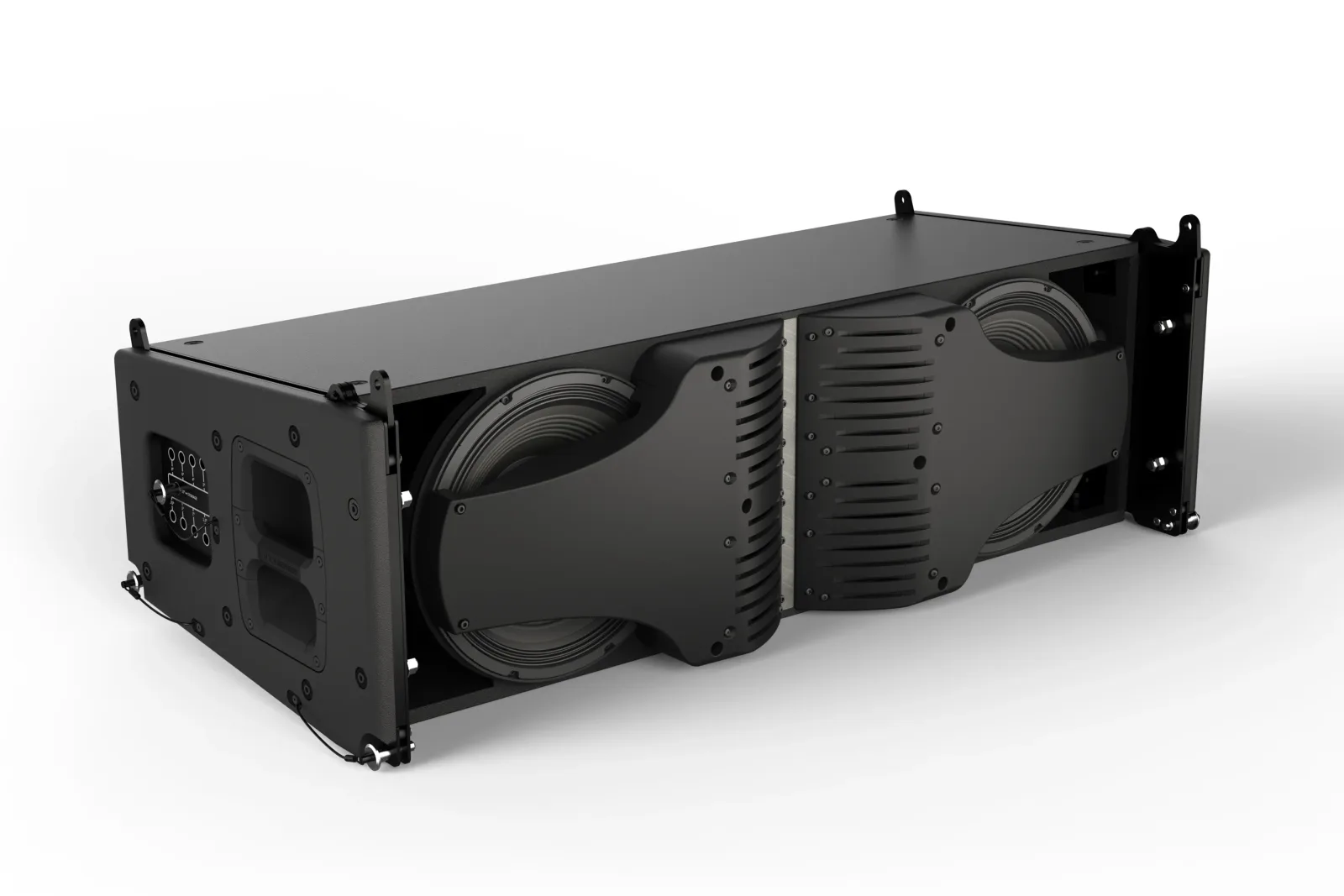

Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion

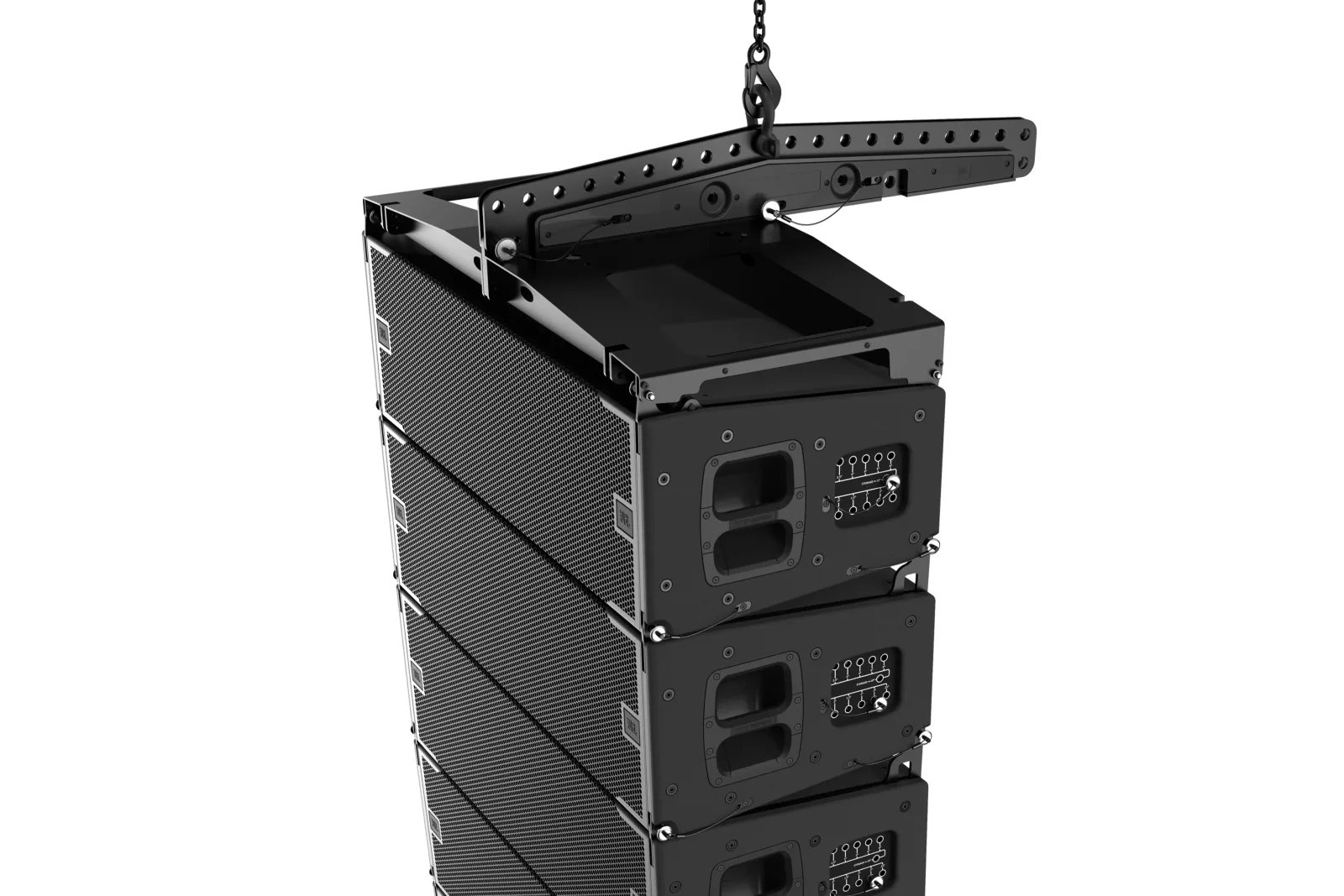

Best-in-class rigging for streamlined, rapid deployment

Full-face grill for superior weatherization and refined aesthetics

New transport cart and frame for simplified transport and setup

Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance

Full integration with JBL system control and prediction software

Lightweight design

Attribute

Value

Model

VTX A12

Frequency Range (-10dB)

46 Hz - 19k Hz (Preset: VTX A12)
