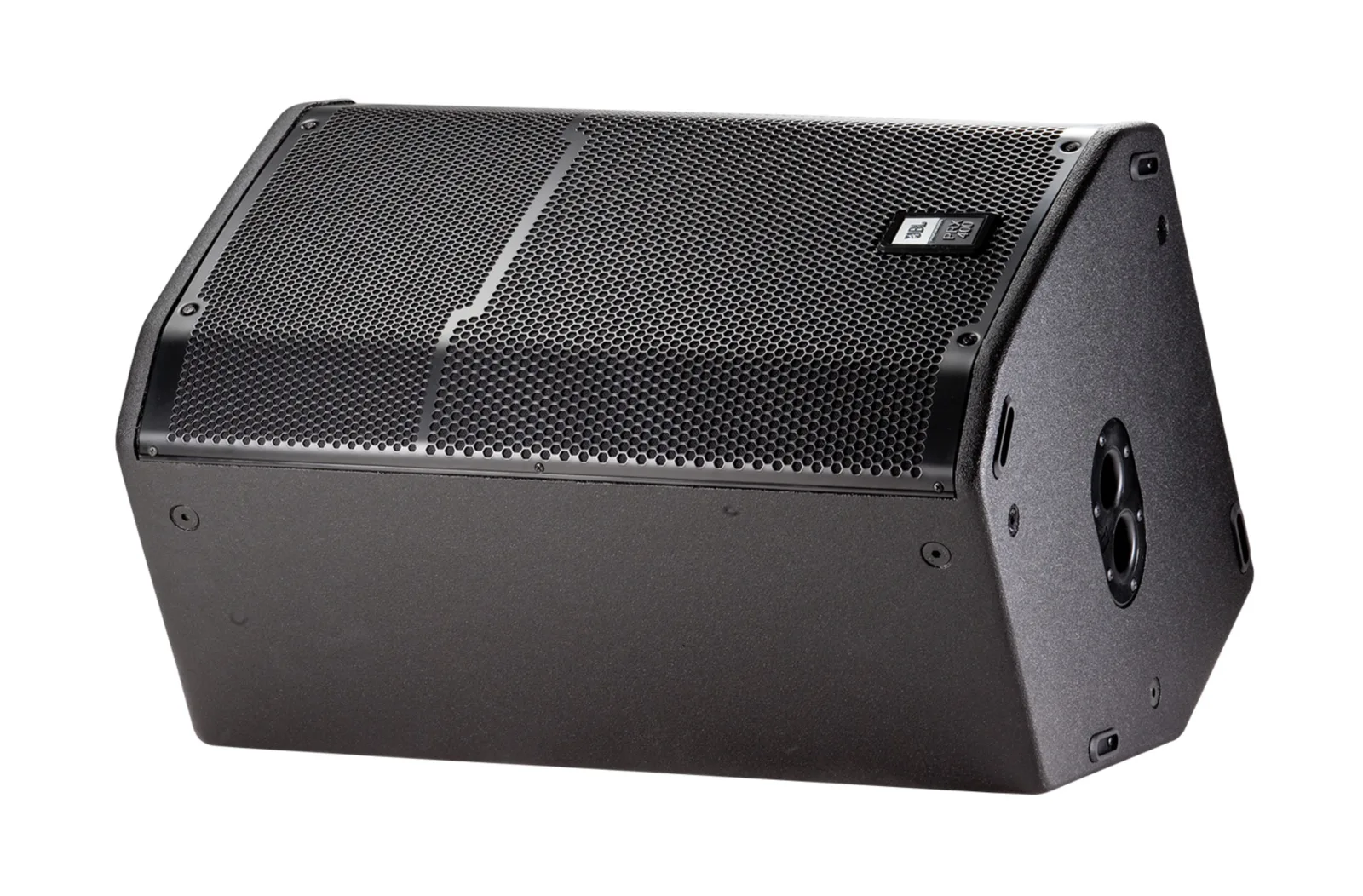

View larger image of JBL PRX415M — official product photo
12 attributes
| Attribute | Value |
|---|---|
| Model | PRX415M |
| Frequency Range (-10dB) | 55 Hz – 19 kHz |
| Frequency Response (±3 dB) | 66 Hz – 16 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 98 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 122 dB SPL cont. (129 dB SPL peak) |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 650 mm x 429 mm x 457 mm (25.6" x 16.9" x 18") |
| Net Weight | 21 kg (46 lbs.) |
| Inputs | Parallel Neutrik Speakon NL-2 / ¼" phone combo jacks |
| Enclosure | Duraflex coated plywood |
