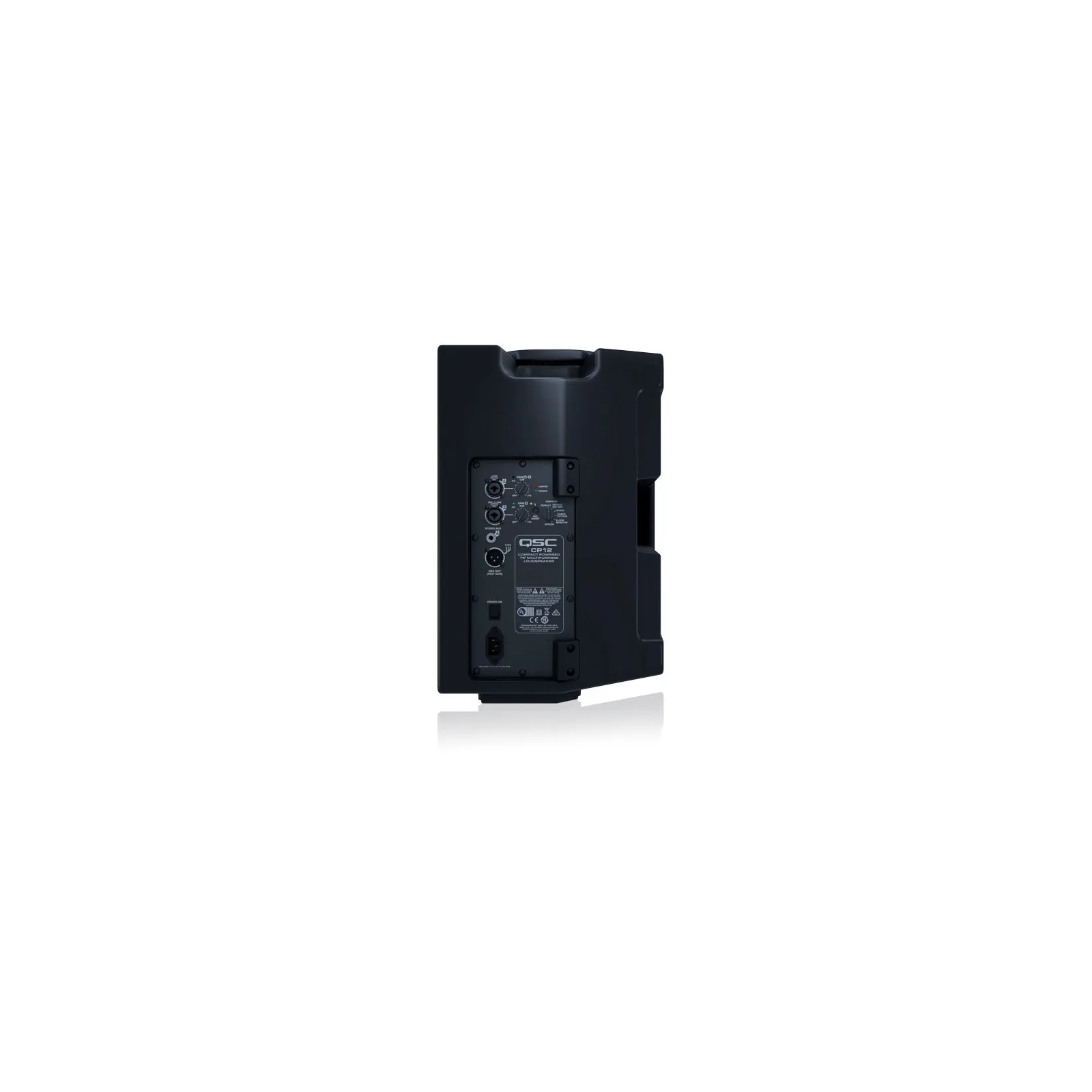

View larger image of QSC CP12 — official product photo
15 attributes
| Attribute | Value |
|---|---|
| Model | CP12 |
| Configuration | Two-way active loudspeaker |
| LF transducer | 305 mm (12 in) cone |
| HF transducer | 35.6 mm (1.4 in) compression driver |
| Frequency response (−6 dB) | 49 Hz–20 kHz |
| Frequency range (−10 dB) | 47 Hz–20 kHz |
| Coverage | 75° axisymmetric |
| Maximum SPL | 126 dB peak |
| Amplifier | Class D, peak 800 W LF + 200 W HF |
| Connectors | 2 × locking XLR/F 1/4" combo, 1 × 3.5 mm TRS, 1 × XLR/M mix out, IEC |
| AC power | 100–240 VAC, 50–60 Hz |
| Enclosure | Polypropylene |
| Color | Black (RAL 9011) |
| Dimensions | 516 × 350 × 323 mm (H × W × D) |
| Net weight | 13.7 kg / 30.3 lb |
