| Model | EON208P |
|---|
| System Type | Portable 2-way full-range loudspeakers with powered mixer |
|---|
| Maximum SPL Output | 121 dB peak |
|---|
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
|---|
| Frequency Response (±3 dB) | 70 Hz - 18 kHz |
|---|
| AC Input | 100-120 V, 220-240 V 50/60 Hz |
|---|
| Amp Design | Class D |
|---|
| System Power Rating | 300 W (2x 150 W stereo) |
|---|
| Outputs | Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4"" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4"" balanced TRS jack |
|---|

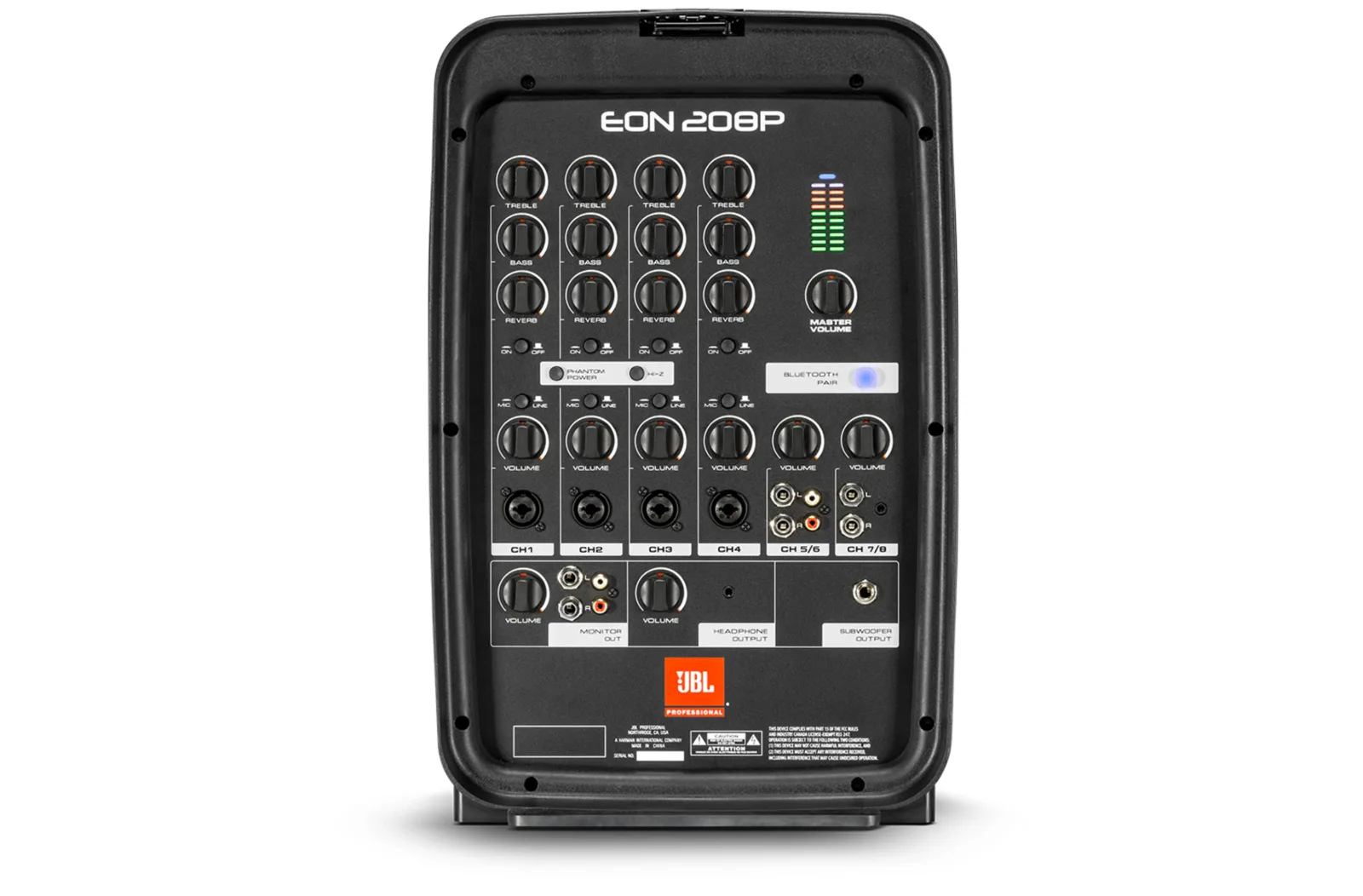

| Channels | 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack |
|---|
| Phantom Power | CH1 and CH2 have phantom power control and share the same selection switch |
|---|
| Hi-Z Selection | CH3 has a Hi-Z selection switch used for guitar signal input |
|---|
| Mixer Output Connectors | Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack |
|---|
| Treble/Bass EQ | Per-channel high- and low-shelf filters; +/- 12dB cut and boost |
|---|
| System Limiter | On-board DSP limiting |
|---|
| LF Driver | 1x JBL 8" (203mm) woofer |
|---|
| HF Driver | 1x 1" Neodymuim black aluminum dome tweeter |
|---|
| Coverage Pattern | 100° horizontal x 60° vertical |
|---|
