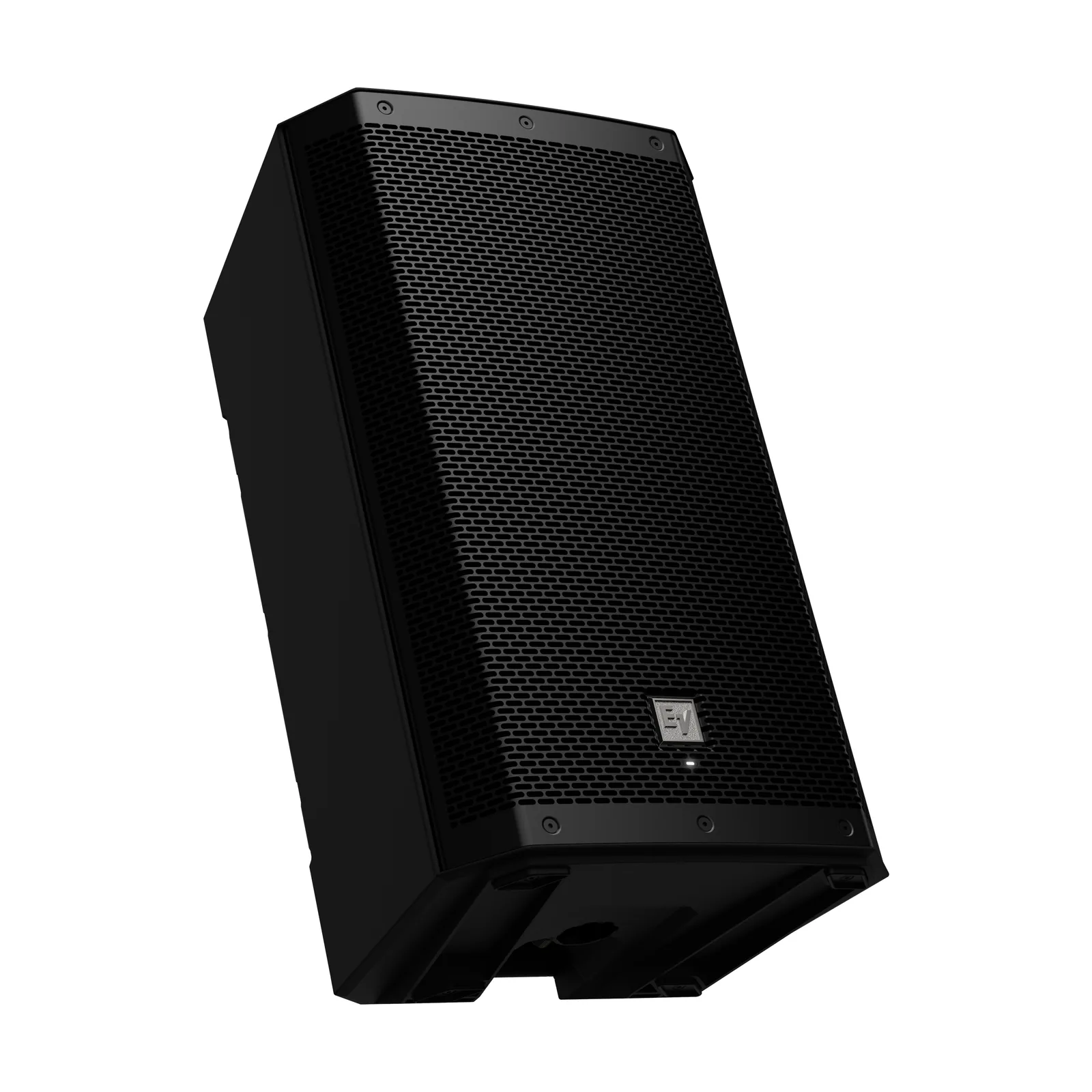

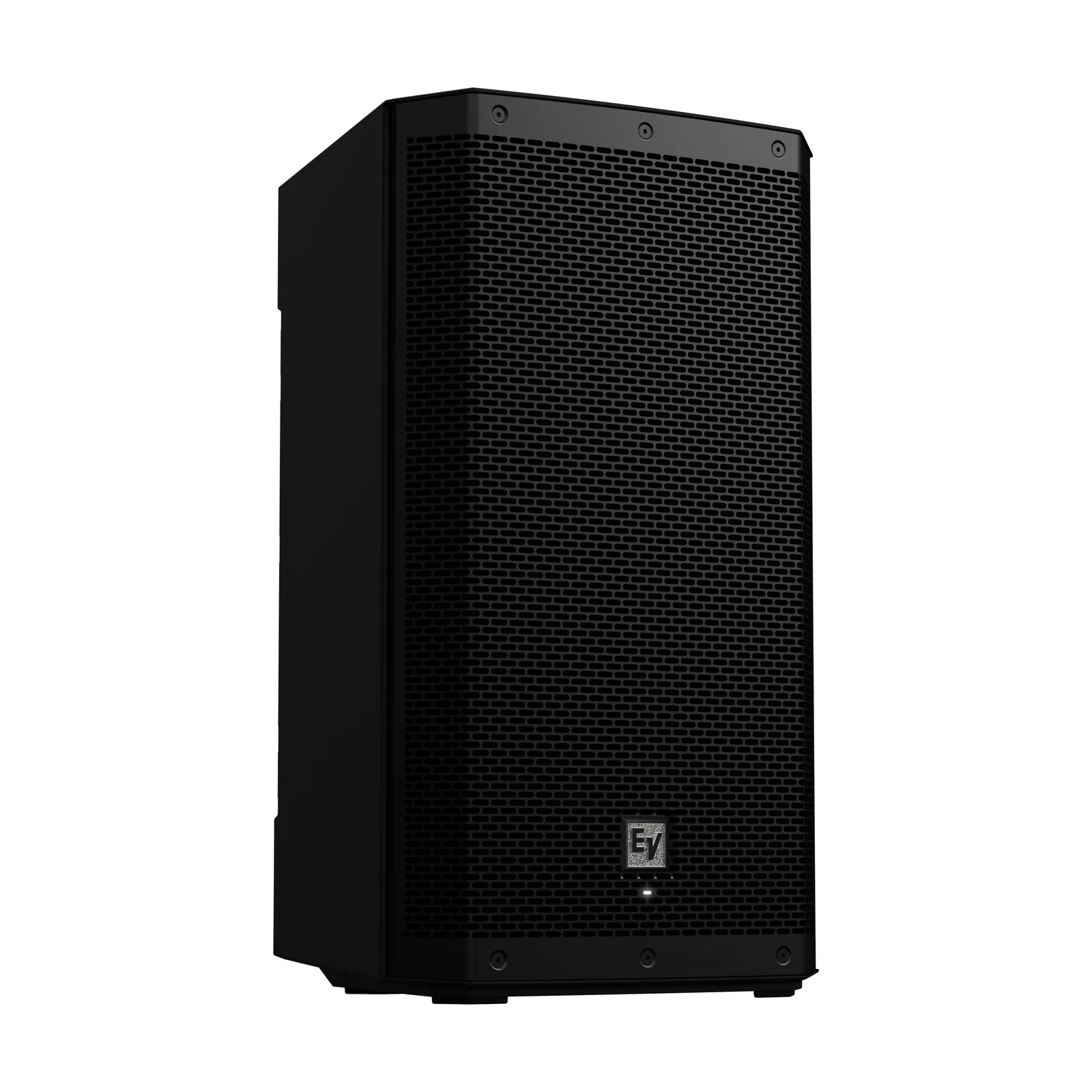

View larger image of Electro-Voice ZLX-12P G2 — official front three-quarter view
37 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ZLX G2 |
| Model | ZLX-12P G2 |
| Material Number | Z.01X.000.109 |
| Configuration | 2-way |
| Max SPL | 127 dB |
| Frequency response low (-3 dB) (Hz) | 54 Hz |
| Frequency response high (-3 dB) (Hz) | 18500 Hz |
| Frequency Response | 54 Hz – 18,500 Hz |
| Frequency Range (-10 dB) | Maximum sound pressure level at a distance of 1 m (dB) 3 |
| Coverage angle (H) | 90 ° |
| Coverage Angle | 90 × 60 |
| LF transducer size (in) | 12 |
| HF transducer size (in) | 1.40 |
| Woofer Size | 12 |
| LF transducer size (mm) | 305 |
| HF transducer size (mm) | 36 |
| Amplifier Watt Peak | 1000 W |
| Total Output Power* | 1000 |
| Operating Voltage / Power | 100-240 V, 50/60 Hz |
| DSP | Yes |
| DSP Presets | Live; Music; Speech; Club; + EV subwoofer presets |
| Connectivity | (2) XLR/TRS combo, (1) 1/4-inch TS Hi-Z |
| Color | Black |
| Enclosure |
|---|
| Polypropylene |
| Grille | Powder-coated steel |
|---|
| Mounting Type | Pole-mount; Stand-mount; M8 rigging points |
|---|
| Net weight | 14820 |
|---|
| Dimension depth (in) | 14.02 in |
|---|
| Dimension depth (mm) | 356 |
|---|
| Dimension height (in) | 24.45 in |
|---|
| Dimension height (mm) | 621.1 |
|---|
| Dimension width (in) | 14.02 in |
|---|
| Dimension width (mm) | 356.2 |
|---|
| Dimensions (H x W x D) (in) | 24.45 x 14.02 x 14.02 |
|---|
| Dimensions (H x W x D) (mm) | 621.1 x 356.2 x 356 |
|---|
| Series / Family | ZLX G2 |
|---|
