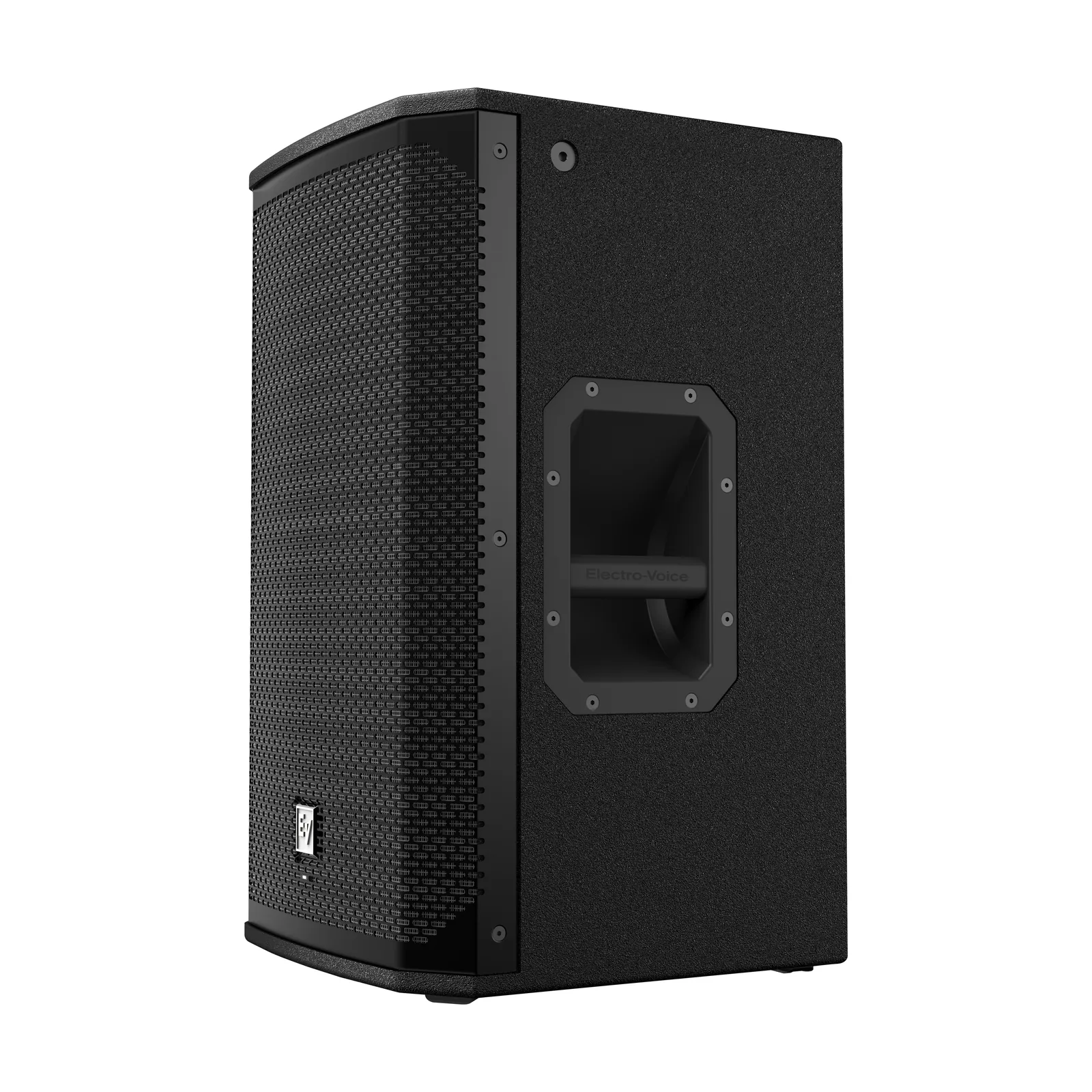

View larger image of Electro-Voice EKX-12P — official front three-quarter view
21 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | EKX |
| Model | EKX-12P |
| Material Number | Z.01X.002.546 |
| Max SPL | 132 dB |
| Frequency Response | 60 Hz - 18 kHz |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Coverage Angle | 90 × 60 |
| LF transducer size (in) | DH-1M 1 in titanium compression driver |
| Woofer Size | EVS-12M 300 mm (12 in) |
| Total Output Power* | 1500 W |
| Power consumption (W) | 100 - 240 V~, 50 - 60 Hz, 1.8A |
| Connectivity | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR |
| Enclosure | 15 mm plywood with EVcoat |
| Grille | 18 AWG steel with powdercoat |
| Suspension / Rigging | (8) M10 threaded mounting points |
| Mounting Type | (8) M10 threaded mounting points |
| Net weight | 18.8 kg (41.4 lb) |
| Shipping Weight | 22.9 kg (50.4 lb) |
| Dimensions (H x W x D) (mm) | 607 mm x 375 mm x 356 mm |
| Series / Family | EKX |
