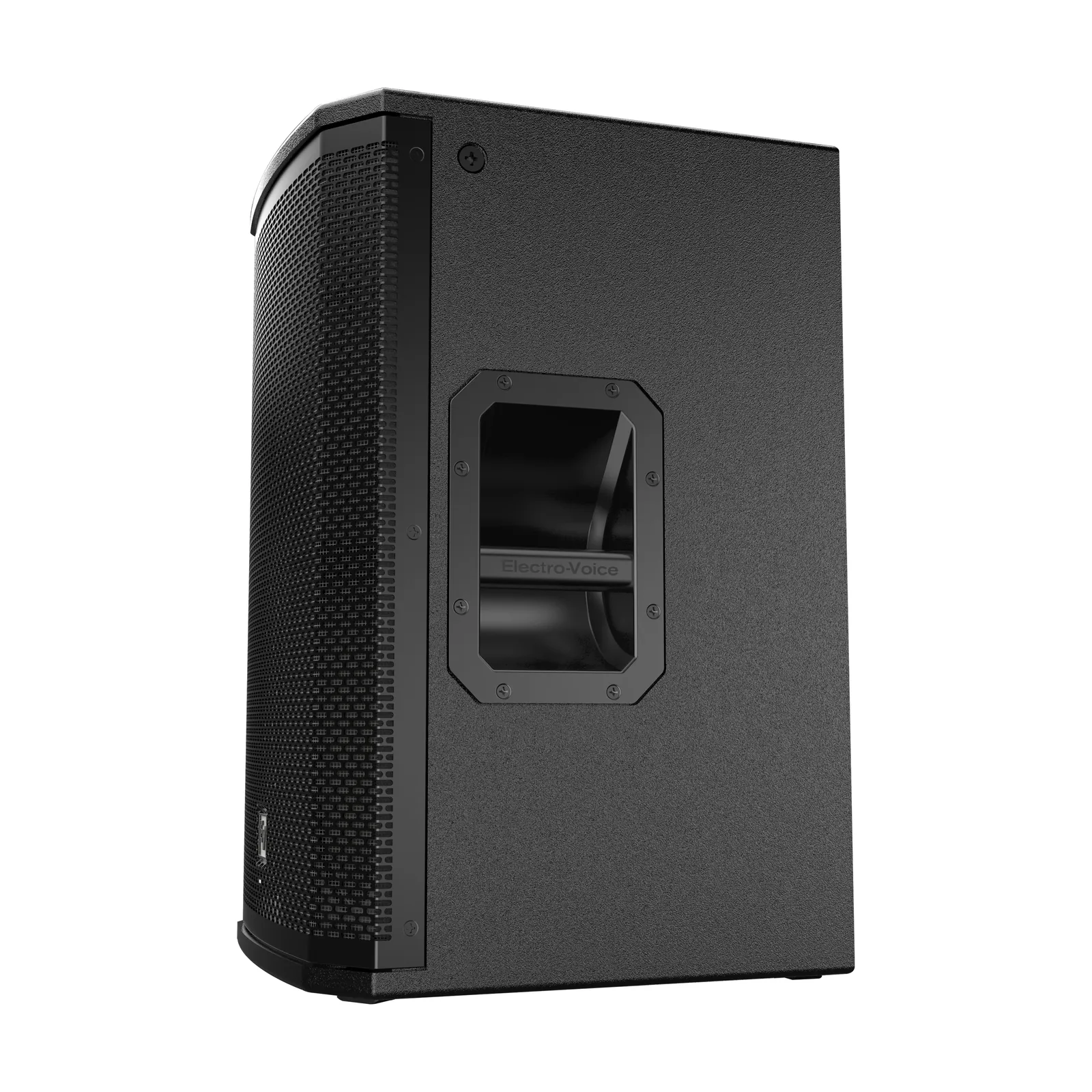

View larger image of Electro-Voice ETX-12P — official front three-quarter view
25 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ETX |
| Model | ETX-12P |
| Material Number | F.01U.396.737 |
| Max SPL | 135 dB |
| Frequency Response | 1. |
| Frequency Range (-10 dB) | 43 Hz - 20 kHz |
| Coverage angle (H) | 90 ° |
| Coverage angle (V) | 60 ° |
| LF transducer size (in) | DH3-B 1.25-in titanium compression driver |
| HF transducer size (in) | 1.25 |
| Woofer Size | 12 in |
| Amplifier Watt Peak | 2000 W |
| Power consumption (W) | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A3 |
| Operating Voltage / Power | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A |
| Connectivity | (2) XLR/TRS combo jack and (1) XLR link output |
| Color | Black |
| Enclosure | 18 mm plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Suspension / Rigging | (8) M10 suspension points |
| Mounting Type | (8) M10 suspension points |
| Net weight | 23.6 kg (52.0 lb) |
| Shipping Weight | 26.8 kg (59.1 lb) |
| Dimensions (H x W x D) (mm) |
| 613 mm x 381 mm x 400 mm |
| Series / Family | ETX |
|---|
