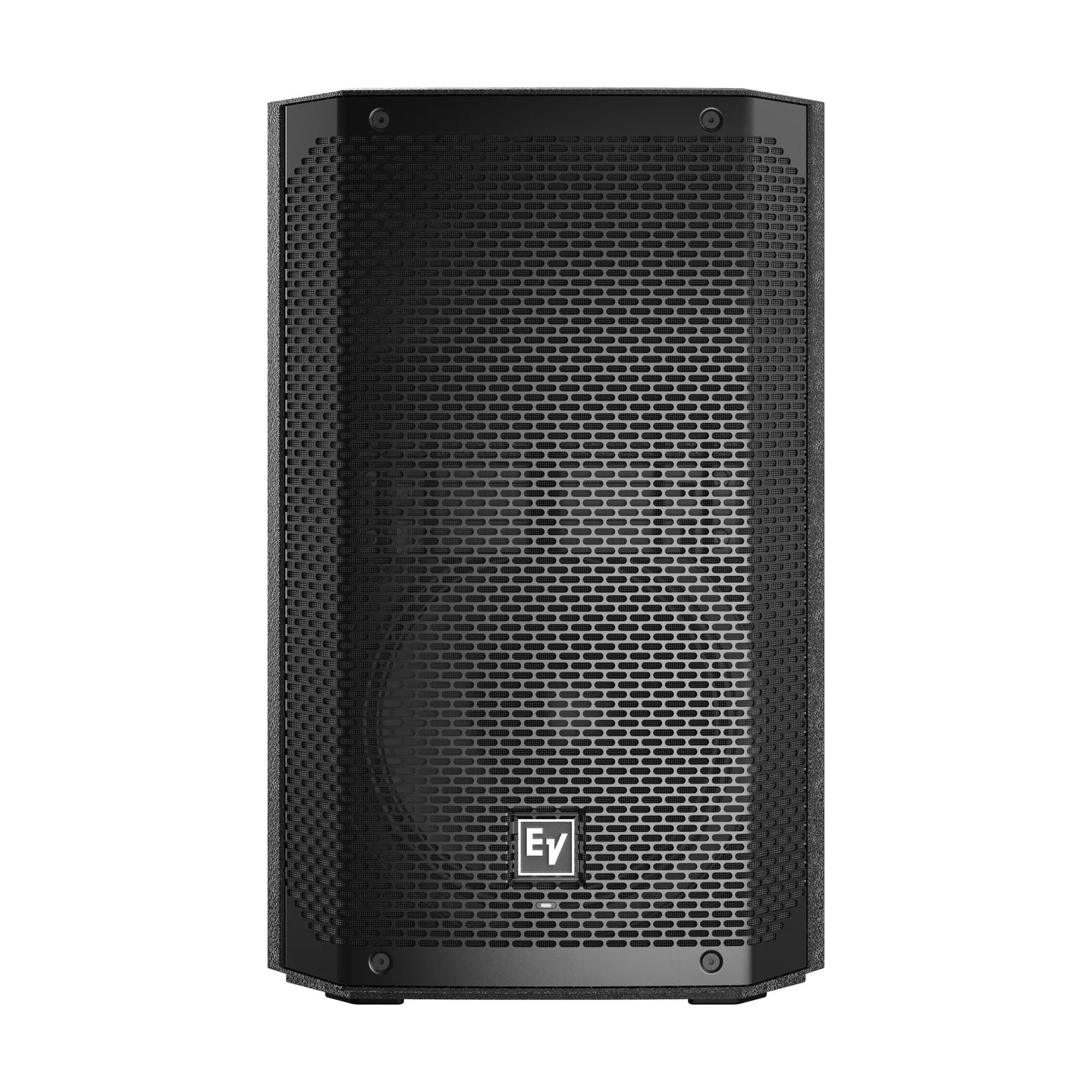

View larger image of Electro-Voice ELX200-10P — front view
22 attributes
| Attribute | Value |
|---|---|
| Brand | Electro-Voice |
| Series | ELX200 |
| Model | ELX200-10P |
| Material Number | Z.01X.000.111 |
| Max SPL | 130 dB |
| Frequency Response | 59 Hz -18 kHz |
| Frequency Range (-10 dB) | 53 Hz - 20 kHz |
| Coverage Angle | 90 × 60 |
| LF transducer size (in) | 10 |
| Element Type | DH-1L 1-inch titanium compression driver |
| Power Handling | 1200 W |
| Power consumption (W) | 100 - 240 V~, 50 - 60 Hz, 1.2 - 0.6 A |
| Connectivity | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR |
| Color | Black or white |
| Enclosure | Polypropylene |
| Grille | 18 AWG steel with powdercoat |
| Suspension / Rigging | (3) M10 suspension points |
| Mounting Type | (3) M10 suspension points |
| Net weight | 13.5 kg (29.9 lb) |
| Shipping Weight | 15.6 kg (34.4 lb) |
| Dimensions (H x W x D) (mm) | 531 mm x 330 mm x 319 mm |
| Series / Family | ELX200 |
