Features

Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms

XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions

XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function

Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs

Support parallel connection of cinema surround speaker

Indicators provide accurate diagnostics: Power, Signal, Clip and Fault

Volume control on rear panel of amplifiers

High performance, light weight

DriveCore based amplifier – weighs less than 14lbs (6 kgs)

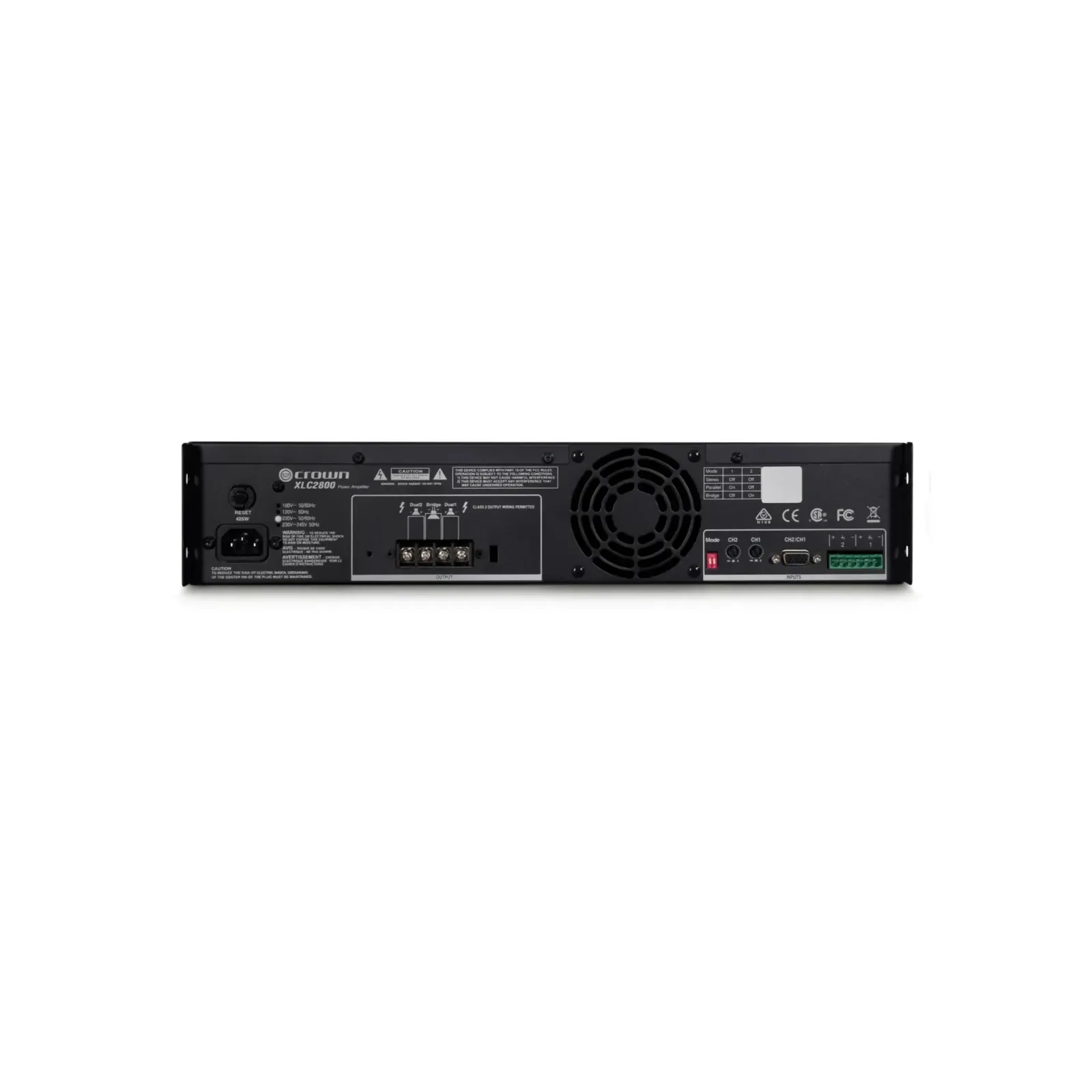

Minimal front panel control; block connectors and controls on back of amplifiers

High performance lightweight DriveCore based amplifier for audiophile quality and extremely high reliability

Configurable input operation for stereo and parallel and bridge modes

Configurable output operation for stereo and bridge modes

Attribute

Value

Brand

Crown

Series

XLC Series

Model

XLC 2800

AC Line Voltage and Frequency Configurations Available

(+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz

Voltage Gain

Sensitivity

1.4V (for full rated power at 4 ohms)

Signal to Noise Ratio

(ref. rated power, 8 ohms, 1 kHz) > 103 dB

THD

<0.5%

Damping Factor

(8 ohms, 10 Hz to 400 Hz) >200

Intermodulation Distortion

(from full rated output to -30 dB) <0.3%

Frequency Response (at 1W, 20 Hz - 20 kHz)

-1 dB

Crosstalk

>85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)

Input Impedance (nominal)

20 kilohms balanced, 10 kilohms unbalanced

Load Impedance

2~8 ohms per channel in Stereo; 4~8 ohms in Bridge

Dimensions

19" x 3.5" x 10.4" (48.3cm x 8.9cm x 26.4cm)

Weight

10.4 lbs (4.72 kg)

Shipping Weight

13.2 lbs (6 kg)

IEC Power Connector

15A
