Features

Output power: 1,000W at 8Ω; 1,300W at 4Ω

Input mode: input Y, dual

Output modes: stereo; bridged mono

Load impedance: 4–8Ω per channel in stereo; 8Ω bridged

HD-15 input allows easy connectivity with the JBL CPi2000 cinema processor to report amplifier status, load status and errors to NOC systems

Built-in diagnostics monitor amp and speaker loading on third-party control and TMS systems

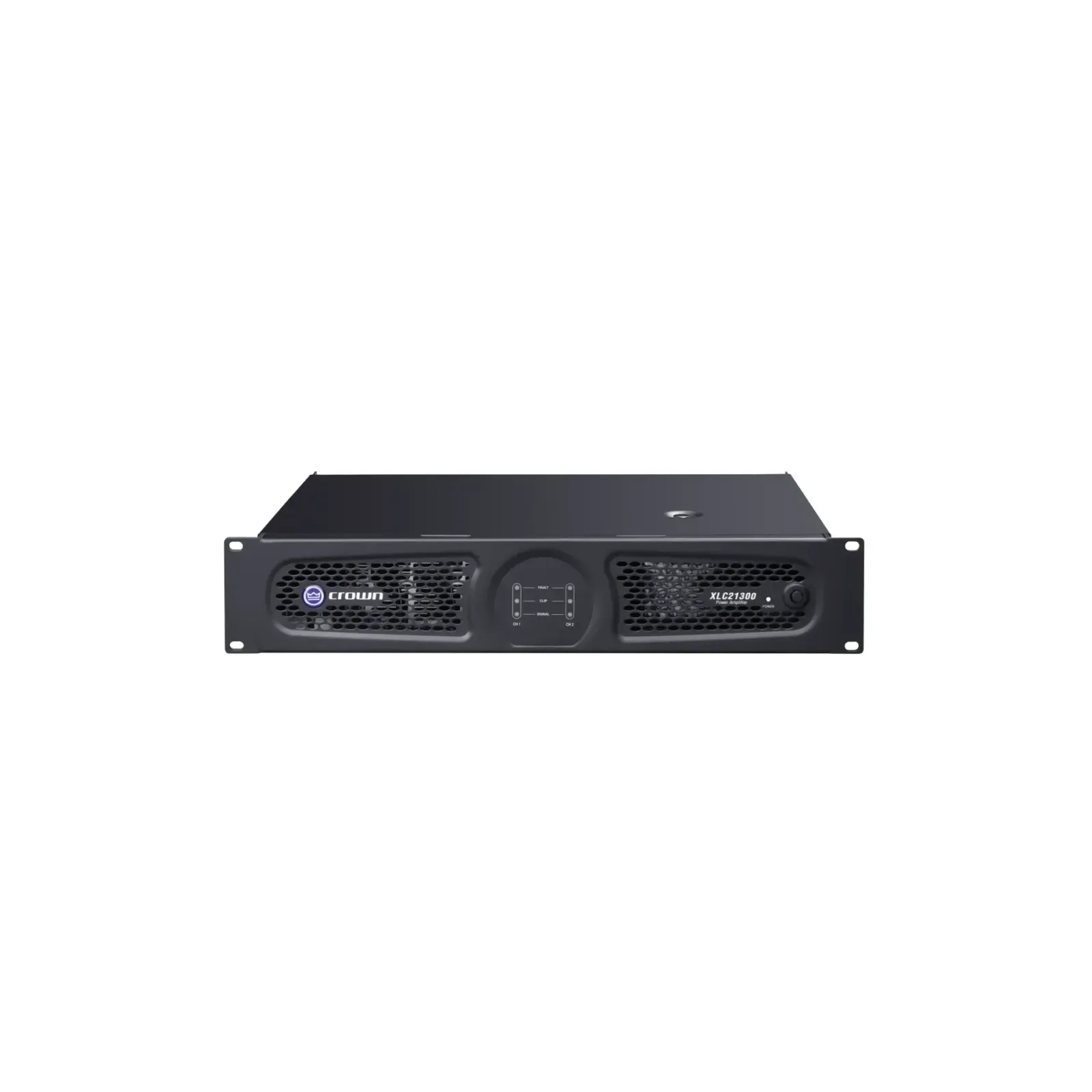

Front-panel Power, Signal, Clip, Bridged Output and Fault LED indicators

Power LED indicates standby, normal operation and default

Rear-panel volume control

Forced-air cooling provides stable performance

Output connectors: 4-pin barrier strip

Sensitivity: 1.4V (@ 4 Ω)

Signal-to-noise ratio: > 100 dB

THD: <0.5%, 20 Hz–20 kHz

Attribute

Value

Brand

Crown

Series

XLC Series

Model

XLC 21300

CHANNELS

OUTPUT POWER (@ 1 kHz)

8Ω: 1000 watts x 2 4Ω: 1300 watts x 2 8Ω Bridged: 2,700 watts x 1

FREQUENCY RESPONSE (@ 1W, 20 Hz–20 kHz)

+0 / -1 dB

SIGNAL-TO-NOISE RATIO (REF. RATED POWER, 8Ω, 1 kHz)

>100 dB

THD

<0.5%, 20 Hz–20 kHz

DAMPING FACTOR (8Ω, 10 Hz–400 Hz)

>200

INTERMODULATION DISTORTION

<0.35% (60 Hz and 7 kHz at 4:1 from full rated output to -30 dB)

CROSSTALK SEPARATION

>75 dB (below rated 8 ohms power at 1 kHz); >59 dB (below rated 8 ohms power at 20 kHz)

INPUT IMPEDANCE (NOMINAL)

20kΩ balanced, 10kΩ unbalanced

VOLTAGE GAIN

36 dB

LOAD IMPEDANCE

4–8Ω per channel in stereo, 8Ω bridged

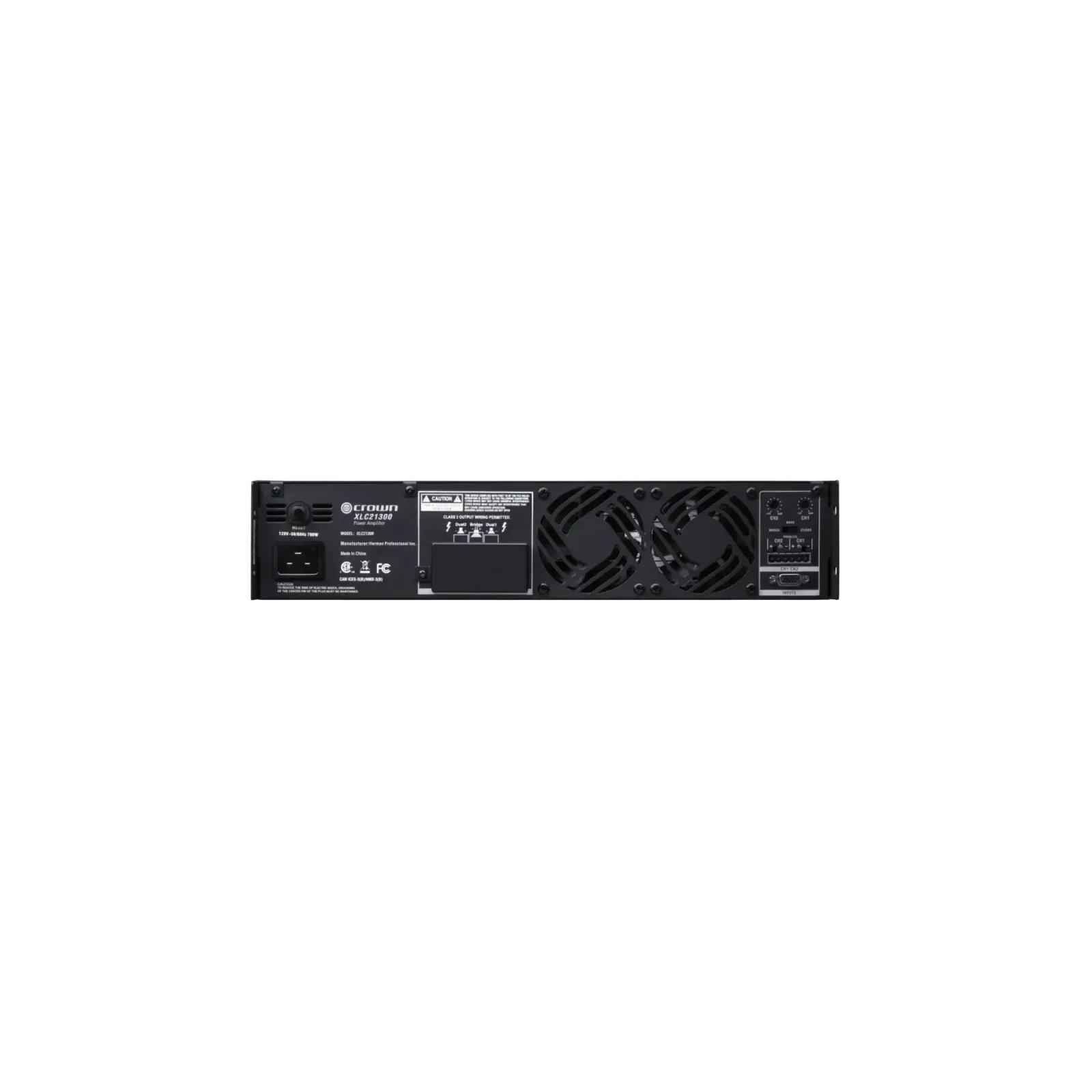

INPUT CONNECTORS

1 x 6-pin Phoenix female, 1x HD-15 female

OUTPUT CONNECTORS

4-pin barrier strip

INPUT MODES

Dual, input Y

OUTPUT MODES

Stereo, bridged mono

INPUT SENSITIVITY (FULL RATED POWER @ 4Ω)

1.4V

LED INDICATORS

Power, signal, clip, bridged output and fault (Power LED = standby, normal operation and default)
