AUDAC VEXO115A 15" high performance 2-way active loudspeaker

Brand: AUDACModel: VEXO115A

The VEXO1xx series are compact high-performance 2-way loudspeakers available in five different models (active or passive). The low-frequency transducer, made from high-quality materials, is combined with a compression driver featuring a 1" voice coil on the VEXO106, 1.4" on the VEXO108, and 1.7" on the VEXO110, VEXO112, and VEXO115 models. This combination enables high sound pressure levels and a tight driver response. The VEXO108, VEXO110, VEXO112, and VEXO115 feature a rotatable 90° × 70° horn coverage pattern for a wide range of applications, while the VEXO106 uses a fixed horn design. Thanks to the unique driver composition, the VEXO115A delivers a clear and natural sound with an continuous power of 500 Watts and a maximum power of 2000 Watt. The frequency response (±3dB) starts from 50Hz up to 20 kHz and the sensitivity (1W/1m) reaches 100dB while a maximum continuous sound pressure level from 127dB can be achieved. When not in use, the active versions of the VEXO series devices automatically go into an energy-saving standby mode. This means that active versions can also be used in fixed installations, as there is no need to physically shut them down after each use. The construction of the cabinets is made of 15 mm plywood with a polyurethane coating, making them resistant to any impact. The front side of the cabinet is finished with a powder-coated steel grill with acoustical foam. A recessed carry handle on the rear side makes carrying easy. Positioning and suspension of the speaker are easily achieved by using the standard 35 mm pole adapter on the bottom and the M10 rigging points. Two speaker connectors provide reliable connections with easy link-through to cabinets. The optional Clever U bracket allows mounting the high power 2-way cabinet both horizontally and vertically. An inclination of -90° to +35° ensures an optimal positioning. The optional MBK bracket even allows mounting the VEXO series to the ceiling which gives the opportunity to install the loudspeaker cleanly in any environment. By installing the optional ANI44XT Dante audio network interface in the active loudspeaker, the VEXO series can be integrated into any Dante enabled AV network and transfer digital audio with any compatible solution on the market. When the ANI44XT is installed the VEXO series will be compatible with AUDAC Touch and TouchLink. Used for creating virtual zones by linking multiple compatible devices with each other. In AUDAC Touch you can select multiple amplifier channels that should react to the user as one zone.

Attribute

Value

Brand

AUDAC

Series

VEXO-A Series

Model

VEXO115A

Speaker type

2-way

Peak power handling

2000 W

Program power handling

1000 W

Continuous power (AES)

500 W

Impedance

8 Ω

Sensitivity (1W/1m)

100 dB

Sound Pressure (Max. W/1m)

127 dB

Frequency Response (± 3 dB)

50 Hz - 20 kHz

Crossover Type

Active

Coverage Horizontal

90°

Coverage Vertical

70°

Coverage Rotatable Horn

Yes

Drivers HF

Compression driver with 1.7" VC and 1" throat

Drivers LF

15" (3" VC)

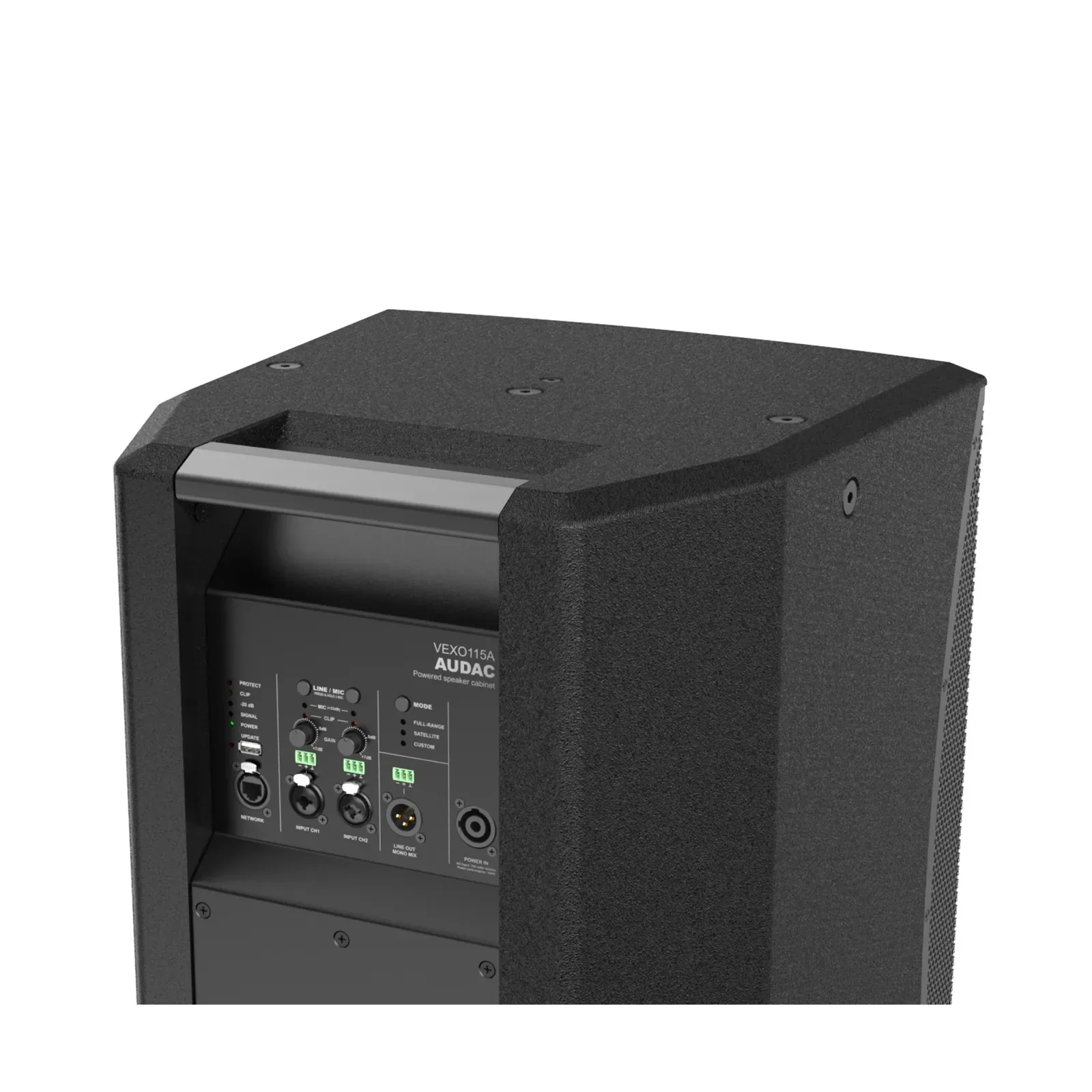

Connectors Remote control

RJ45

Connectors Input

2 x Combo XLR / 6.3 mm jack

Connectors

3-pin Euro Terminal Block (Pitch - 3.81 mm); 3-Pin terminal block (linkthrough); XLR male (linkthrough)

Inputs

USB port; RJ45 (Ethernet)

Power Consumption Standby

3.2 W

Power Consumption Idle

22.5 W

AC Inputs Voltage

110 ~ 240 V AC / 50 ~ 60 Hz
