Val Audio MA480 Mixer Amplifiers

The MA480 Mixer Amplifier, a powerhouse with an output of 480W RMS, packed with an array of features to meet diverse audio needs. Designed for versatility and ease of installation,

Brand: Val AudioModel: MA480

The MA480 Mixer Amplifier, a powerhouse with an output of 480W RMS, packed with an array of features to meet diverse audio needs. Designed for versatility and ease of installation, the MA480 supports both 4-16 ohm operation and 70V/100V LMT output, making it suitable for a variety of settings including schools, meeting rooms, houses of worship, and more. With multiple inputs, including 2 microphone inputs, 3 aux inputs, and a media player equipped with Bluetooth and USB connectivity, the MA480 offers seamless integration with various audio sources. Additionally, it features an FM receiver for radio playback, ensuring comprehensive audio options for any environment. An integrated LCD screen offers easy access to the media player functions. Each input is individually controllable via dedicated volume controls, allowing for precise management of audio levels. Enhancing user control, the MA480 is equipped with master, bass, and treble controls, empowering users to tailor the audio output to their preferences. Whether you’re streaming music from a smartphone or conducting a presentation, the MA480 delivers exceptional sound quality with customizable settings. Installers will appreciate the MA480’s extensive connectivity options, simplifying the setup process and offering flexibility for diverse audio configurations. From classrooms to offices, the MA480 is an installer’s delight, providing unmatched versatility and performance for a wide range of applications. Discover the power and flexibility of the MA480 Mixer Amplifier, your ultimate audio solution for any environment.

Features

Integrated Media player built in USB, FM, Bluetooth with LCD display

Flexible output options: 4-16 ohm or 70V/100V connectivity

Multiple input channels: 3 Aux and 2 Microphone inputs LED output metering Master, Bass & Treble controls for tailored audio tuning Aux output available for daisy chaining amplifiers or to attach active subwoofers to expand your audio setup

Attribute

Value

Model

MA480

Flexible output options

4-16 ohm or 70V/100V connectivity

Multiple input channels

3 Aux and 2 Microphone inputs

Number of output channels

Total output power

480W

70V Output Impedance

20 ohms

100V Output Impedance

40 ohms

Aux Input

520mV

Mic Input

4mV

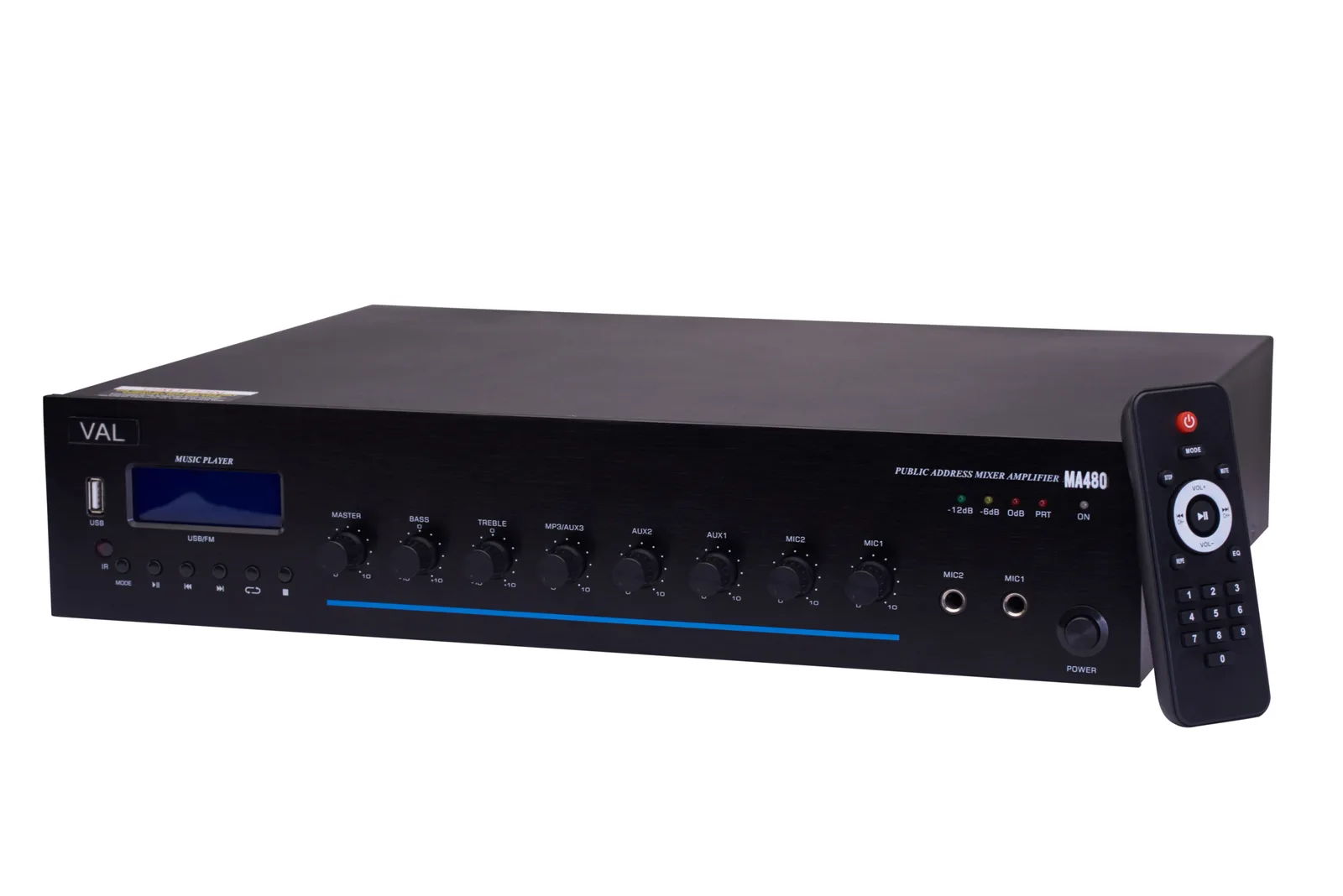

Front Panel Control

2 Mic, 3 Aux, 1 Media Player, Bass, Treble, Master, Power ON/OFF

Frequency Response

35 Hz to 20 kHz

Total Harmonic Distortion

0.05%

Intermodulation Distortion

<0.35% (60Hz and 7kHz at 4:1, from full rated output to -30dB)

Signal-to-Noise Ratio

75dB

Crosstalk

> 80 dB (below rated power, 20 Hz to 1 kHz)

Slew Rate

80V/usec

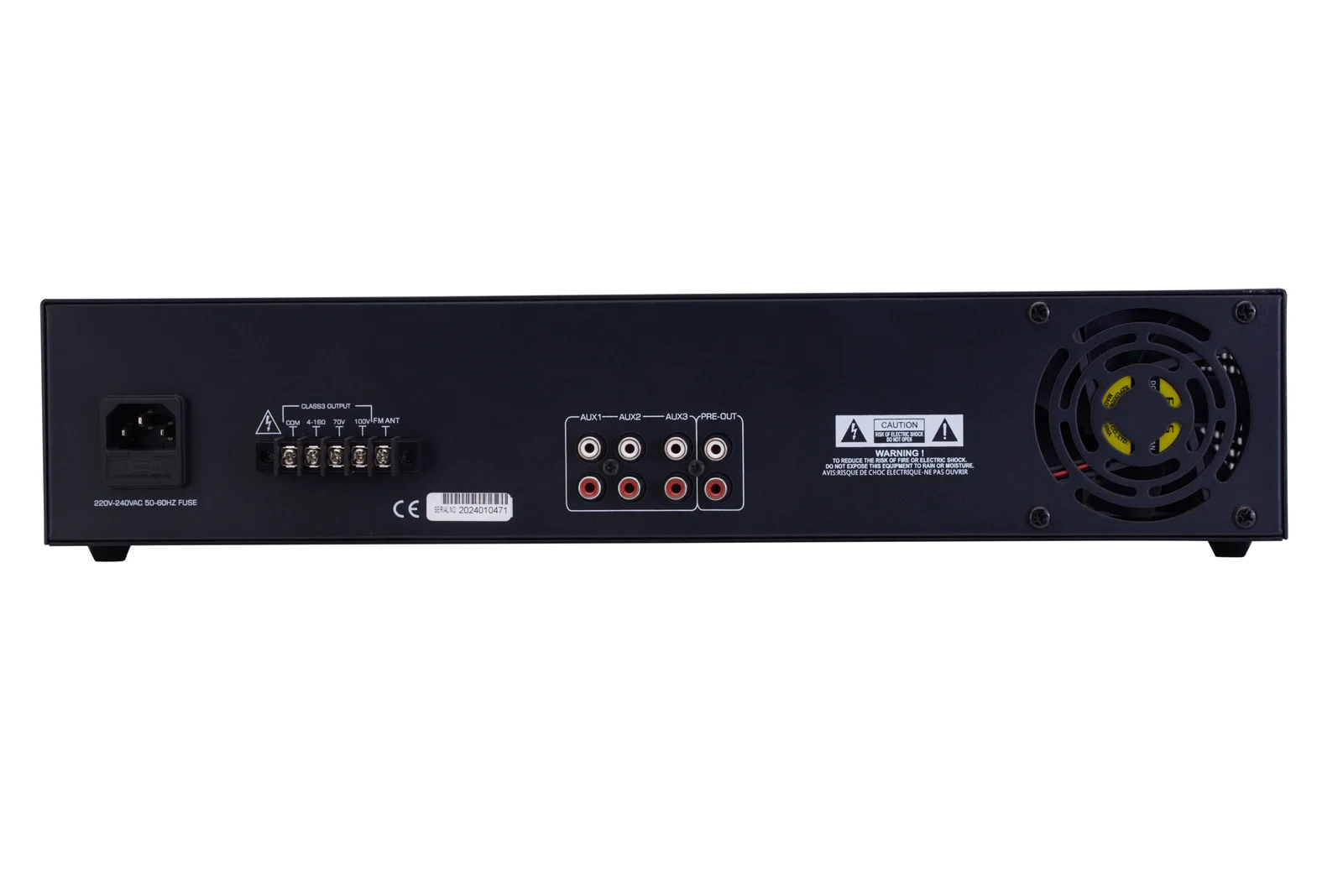

Output Connector

Barrier strip

Input Connector

1.4’’ TS Jack , RCA

LED Indicator

Power, Signal, Protect

Cooling System

Internal heat sinks fitted with fan

Construction

Steel chassis with durable black powder coat finish

Power Supply

Toroidal Transformer

Power Range
