Val Audio MA120 Mixer Amplifiers

The MA120 Mixer Amplifier, a powerhouse with an output of 120W RMS, packed with an array of features to meet diverse audio needs. Designed for versatility and ease of installation,

Brand: Val AudioModel: MA120

The MA120 Mixer Amplifier, a powerhouse with an output of 120W RMS, packed with an array of features to meet diverse audio needs. Designed for versatility and ease of installation, the MA120 supports both 4-16 ohm operation and 70V/100V LMT output, making it suitable for a variety of settings including schools, meeting rooms, houses of worship, and more. With multiple inputs, including 2 microphone inputs, 3 aux inputs, and a media player equipped with Bluetooth and USB connectivity, the MA120 offers seamless integration with various audio sources. Additionally, it features an FM receiver for radio playback, ensuring comprehensive audio options for any environment. An integrated LCD screen offers easy access to the media player functions. Each input is individually controllable via dedicated volume controls, allowing for precise management of audio levels. Enhancing user control, the MA120 is equipped with master, bass, and treble controls, empowering users to tailor the audio output to their preferences. Whether you’re streaming music from a smartphone or conducting a presentation, the MA120 delivers exceptional sound quality with customizable settings. Installers will appreciate the MA120’s extensive connectivity options, simplifying the setup process and offering flexibility for diverse audio configurations. From classrooms to offices, the MA120 is an installer’s delight, providing unmatched versatility and performance for a wide range of applications. Discover the power and flexibility of the MA120 Mixer Amplifier, your ultimate audio solution for any environment.

Features

Integrated Media player built in USB, FM, Bluetooth with LCD display

Flexible output options: 4-16 ohm or 70V/100V connectivity

Multiple input channels: 3 Aux and 2 Microphone inputs LED output metering Master, Bass & Treble controls for tailored audio tuning Aux output available for daisy chaining amplifiers or to attach active subwoofers to expand your audio setup

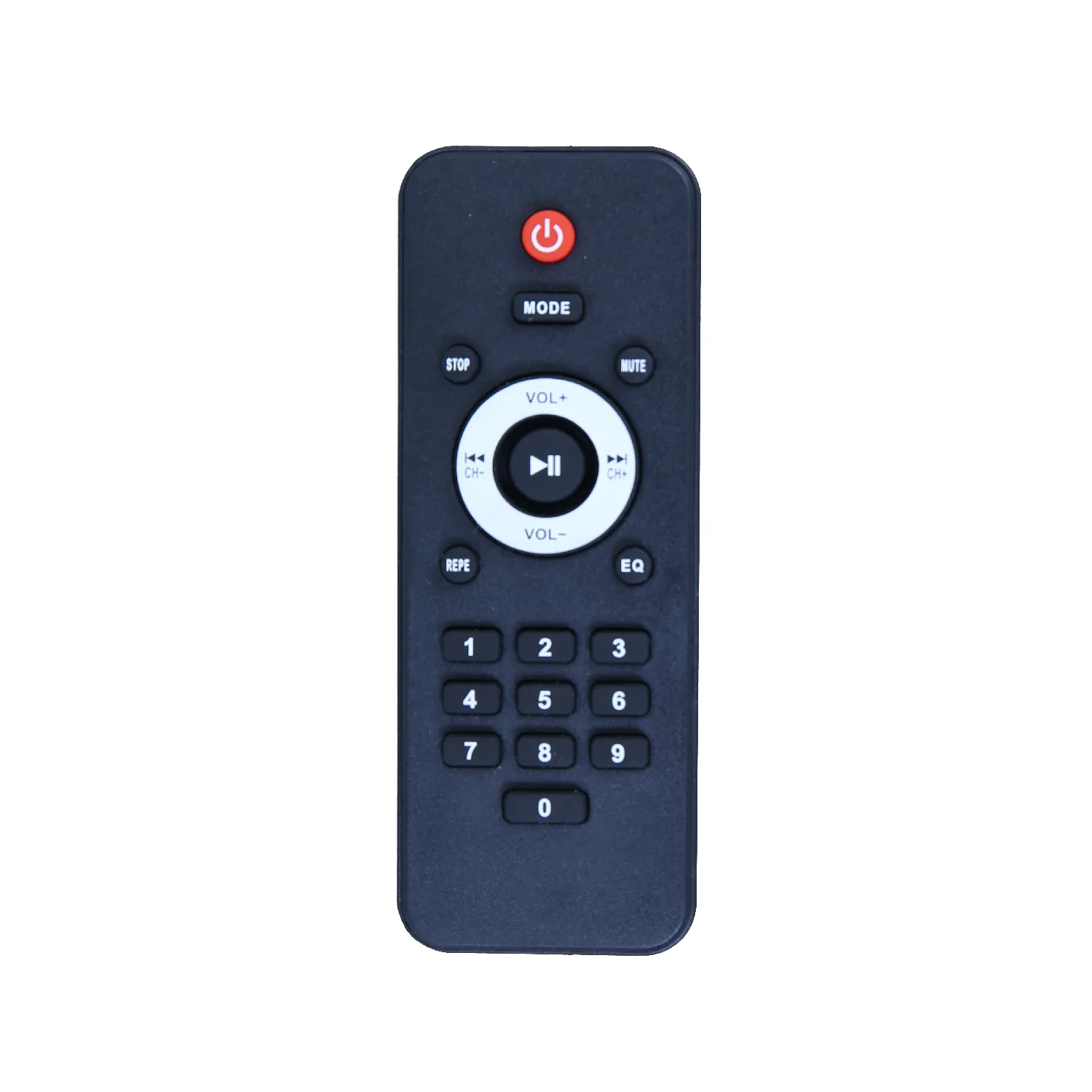

Full function remote control included

Attribute

Value

Model

MA120

Flexible output options

4-16 ohm or 70V/100V connectivity

Multiple input channels

3 Aux and 2 Microphone inputs

Number of output channels

Total output power

120W

70V Output Impedance

20 ohms

100V Output Impedance

40 ohms

Aux Input

520mV

Mic Input

4mV

Front Panel Control

2 Mic, 3 Aux, 1 Media Player, Bass, Treble, Master, Power ON/OFF

Frequency Response

35 Hz to 20 kHz

Total Harmonic Distortion

0.05%

Intermodulation Distortion

<0.35% (60Hz and 7kHz at 4:1, from full rated output to -30dB)

Signal-to-Noise Ratio

75dB

Crosstalk

> 80 dB (below rated power, 20 Hz to 1 kHz)

Slew Rate

80V/usec

Output Circuitry

Barrier strip

Output Connector

1.4’’ TS Jack , RCA

Input Connectors

Power, Signal, Protect

Cooling System

Internal heat sinks fitted with fan

Construction

Steel chassis with durable black powder coat finish

Power Supply

Toroidal Transformer
