Features

high intelligible: suited to voice alarm, public address announcement and BGM application by 2way system.

IP-66 certified: All weather durability, be it water or dust. Ideal for any fully outdoor amplification.

Special paint coat prevents color degradation, ensuring long-lasting exterior condition.

Rotary switch facilitates hassle-free impedance change.

Various mounting brackets available as accessories allowing flexibility of mounting the speaker on a platform, in the ceiling, on the wall or on a pole.

Attribute

Value

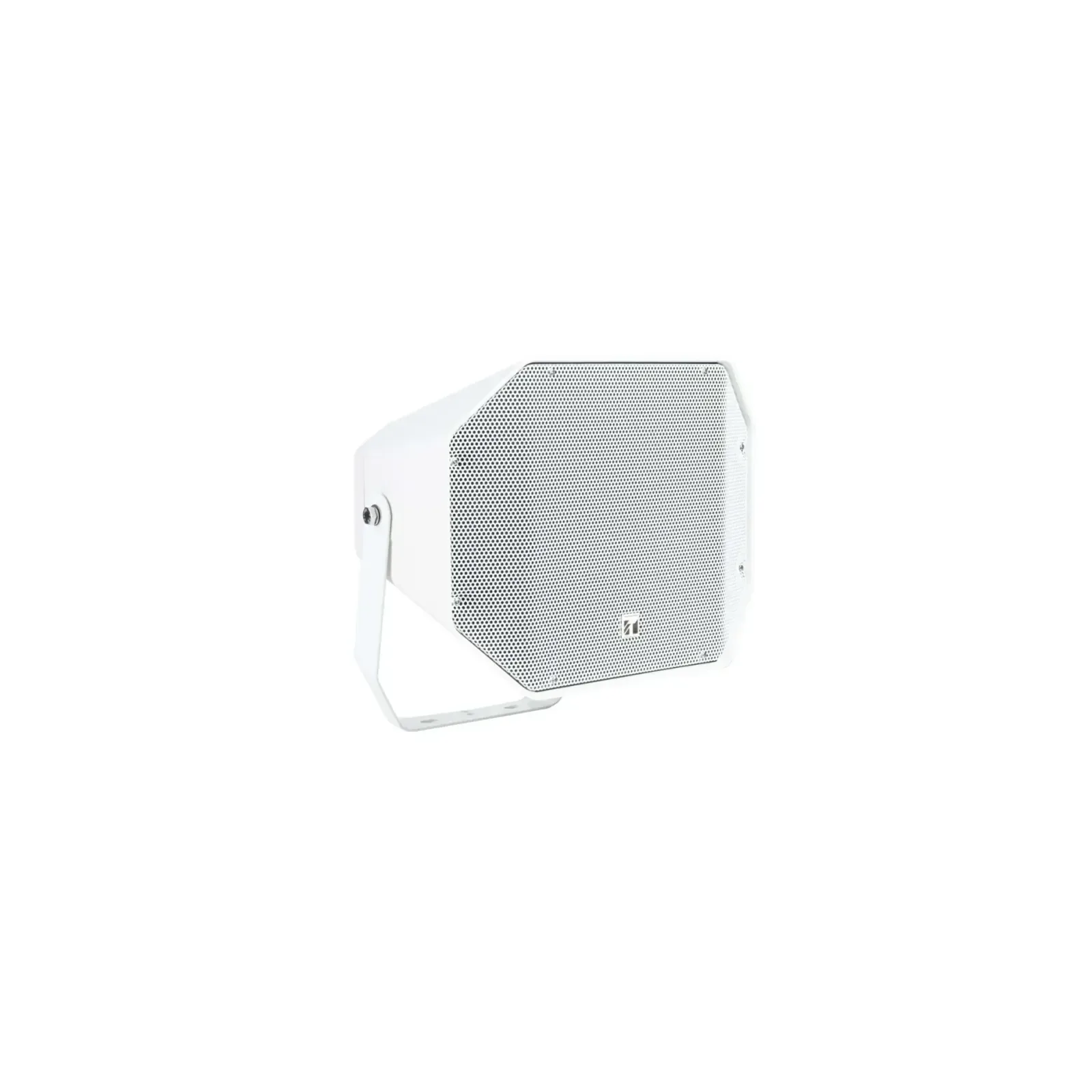

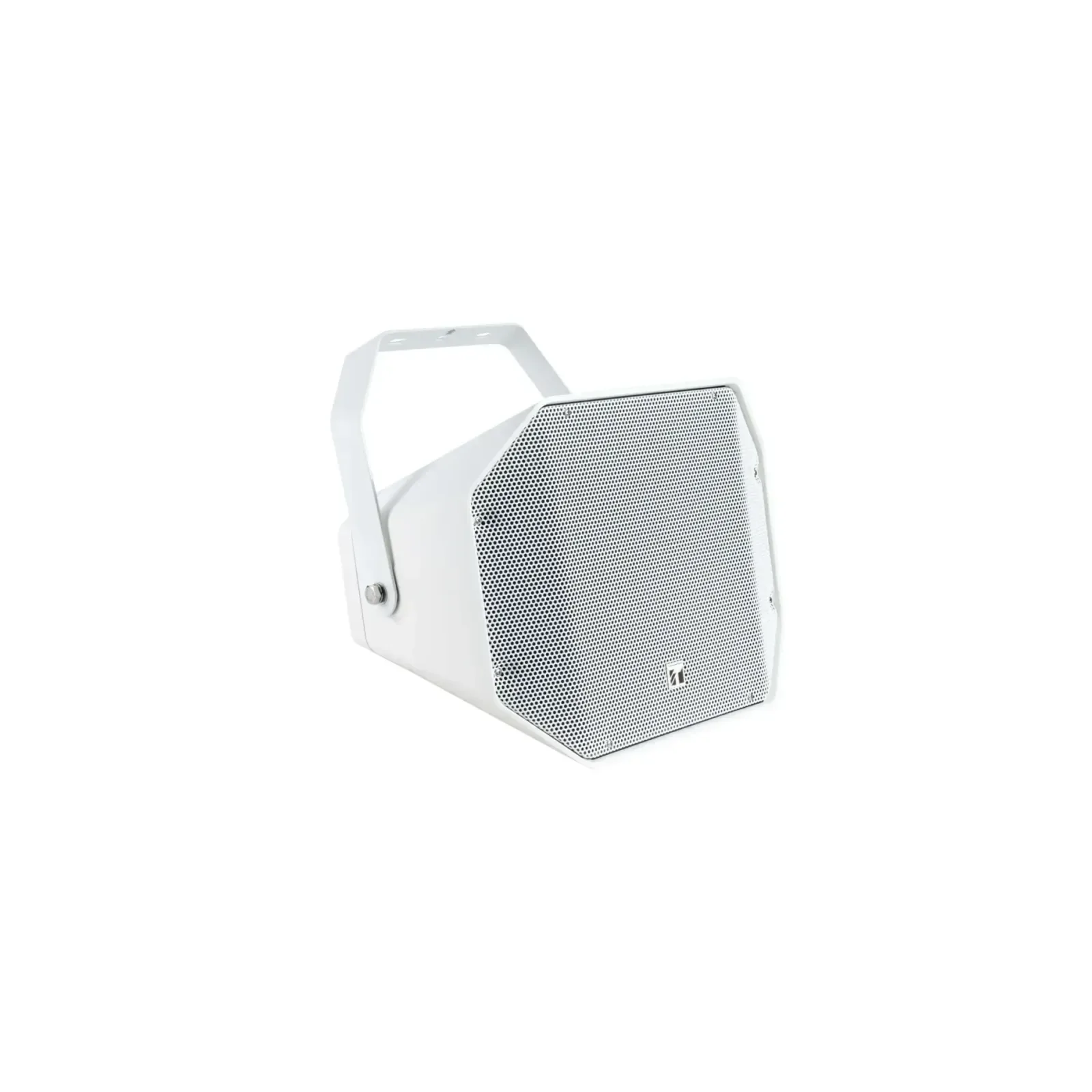

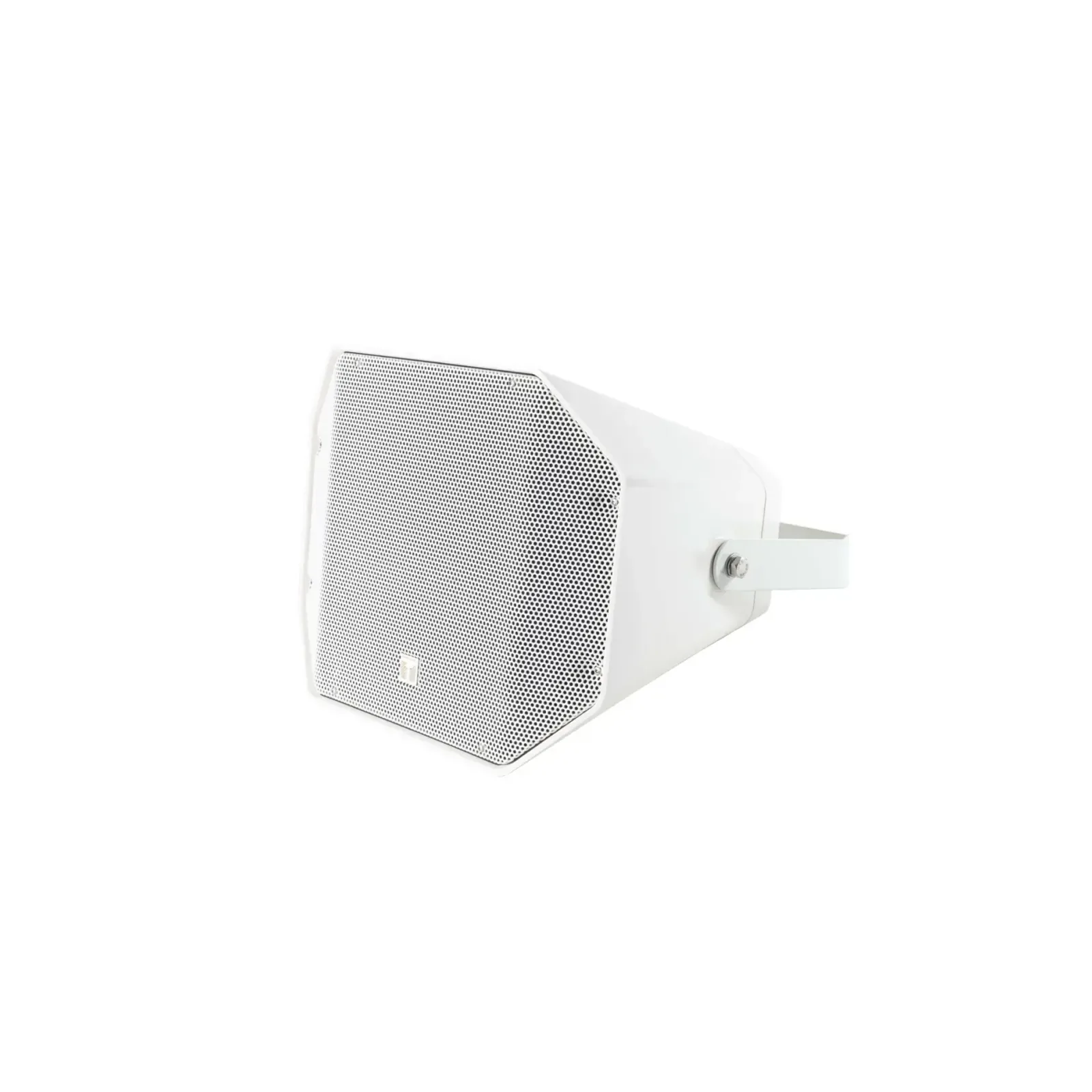

Model

CS-760W-AS

Rated Input

60W

Rated Impedance

100V Line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W) 70V Line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5W)

Sensitivity (1W, 1m)

100 dB

Max. SPL

117 dB (60W, 1m)

Frequency Response

100Hz - 20kHz

Crossover Frequency

2.5kHz

Directivity Angle

Horizontal : 90° ; Vertical : 80°

Speaker Component

Low Frequency: 16cm (6”) cone-type High Frequency: 2.5 cm (1”) dome tweeter

Connection

Speaker cord (Hot: Black; Corn: White)

Dust/Water Protection

IP66

Finish

Enclosure: ABS, Black, Paint Coating Punched Net: Surface-treated Steel Plate, Black, Paint Coating Bracket: Stainless Steel, Black, Powder Coasting

Dimensions

388 (W) × 310 (H) × 367 (D) mm

Weight

7.4kg
