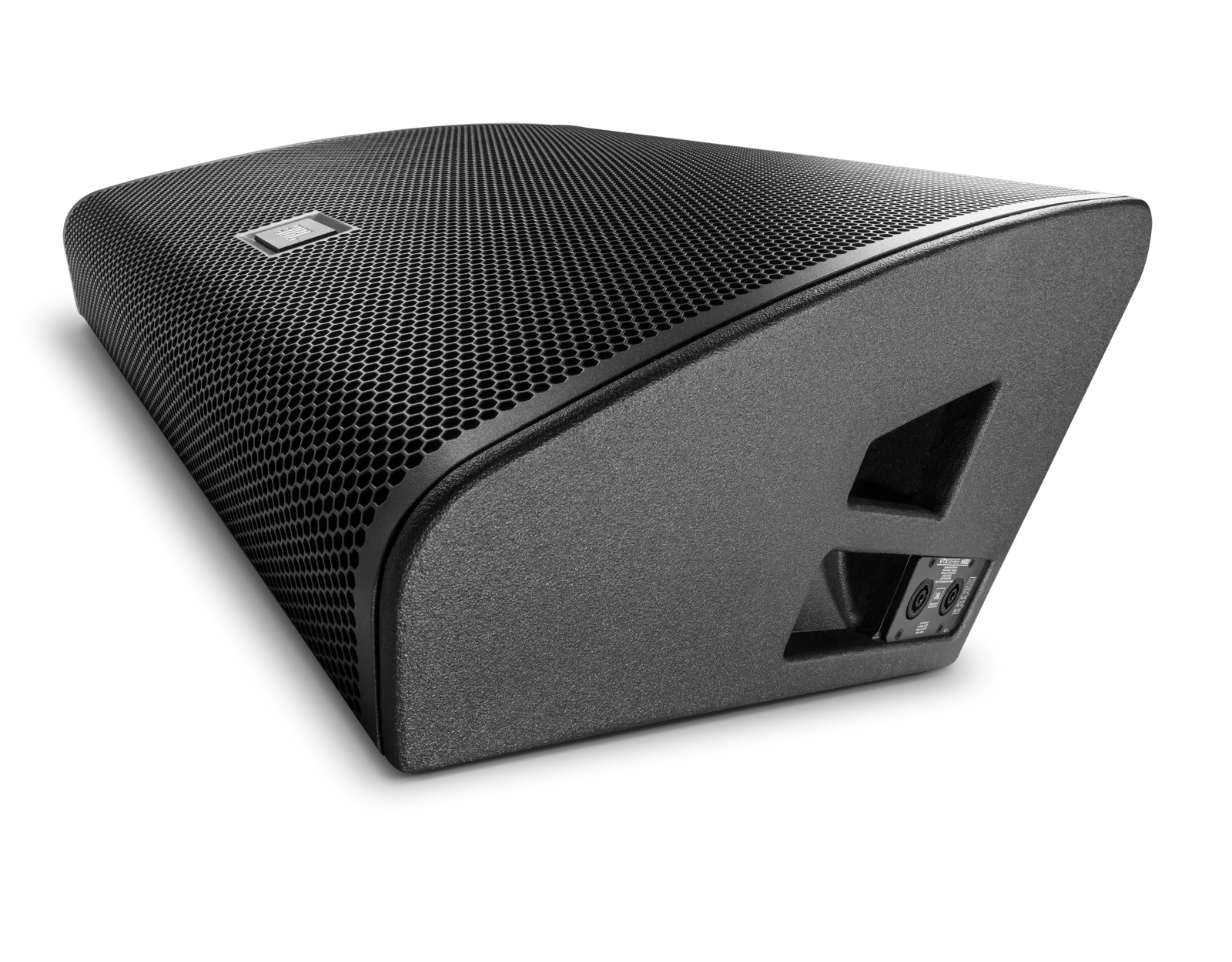

Features

Elegant, low profile, compact design suitable for touring and high profile broadcast applications

State of the art JBL transducers, including Differential Drive cone transducers and D2 dual diaphragm dual voice coil compression driver

60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology

Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment

Attribute

Value

Model

VTX M22

Frequency Range (-10dB)

45 Hz - 19.5 kHz

Coverage Pattern (-6 dB)

Horizontal: 60; Vertical: 60

System Input Power Rating

Passive: 1500 W Continuous (IEC / 100 hour) Active: LF: 1500 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour)

Maximum SPL (1m)

138 dB (Preset: VTX M22 FR)

System Latency3

3.33ms

System Amplification

Crown Audio I-Tech HD

Nominal Impedance

Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms

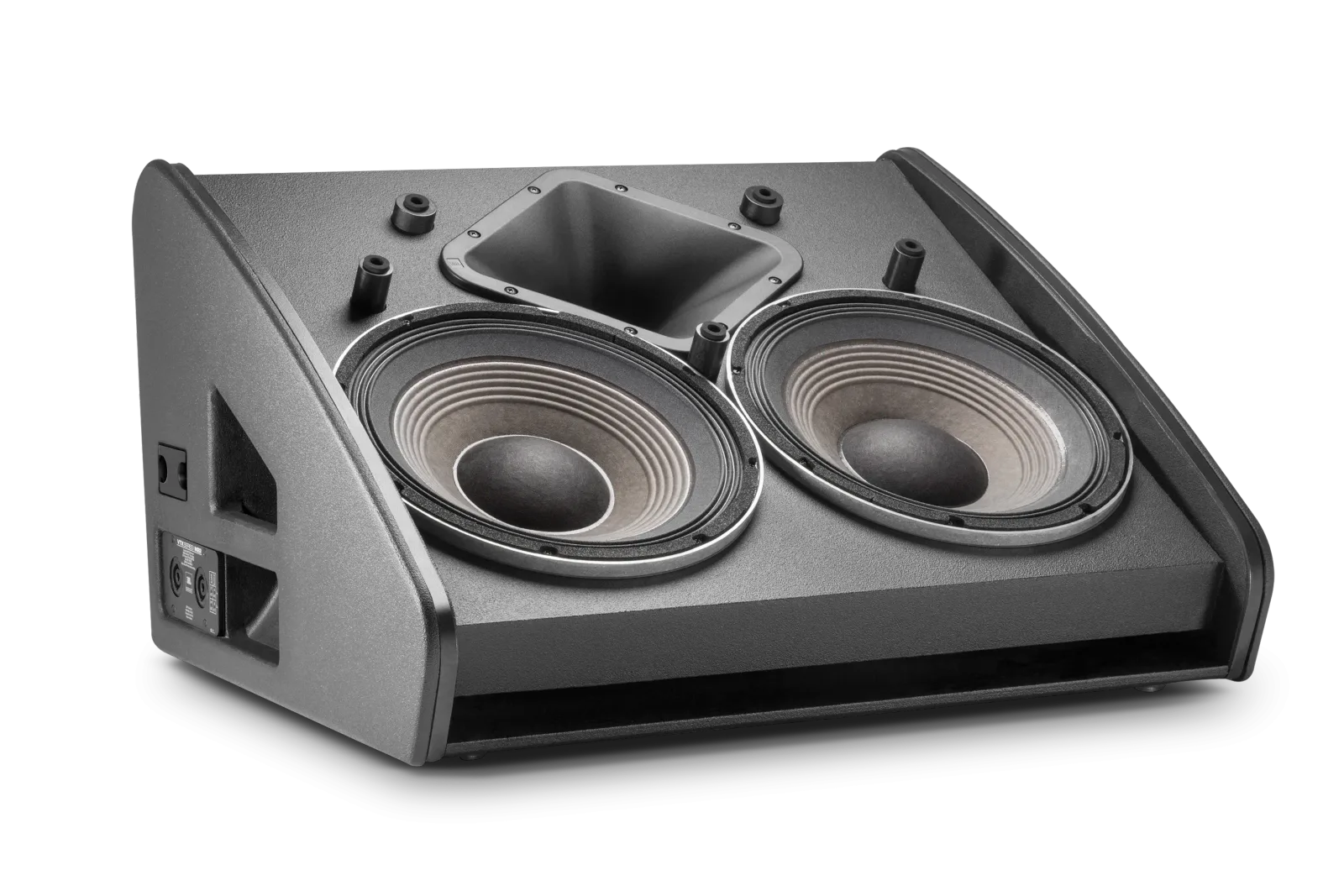

LF Driver

2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled

HF Driver

1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil

Monitor Angle

30 degrees

Enclosure

mm, 11-ply Finnish birch plywood

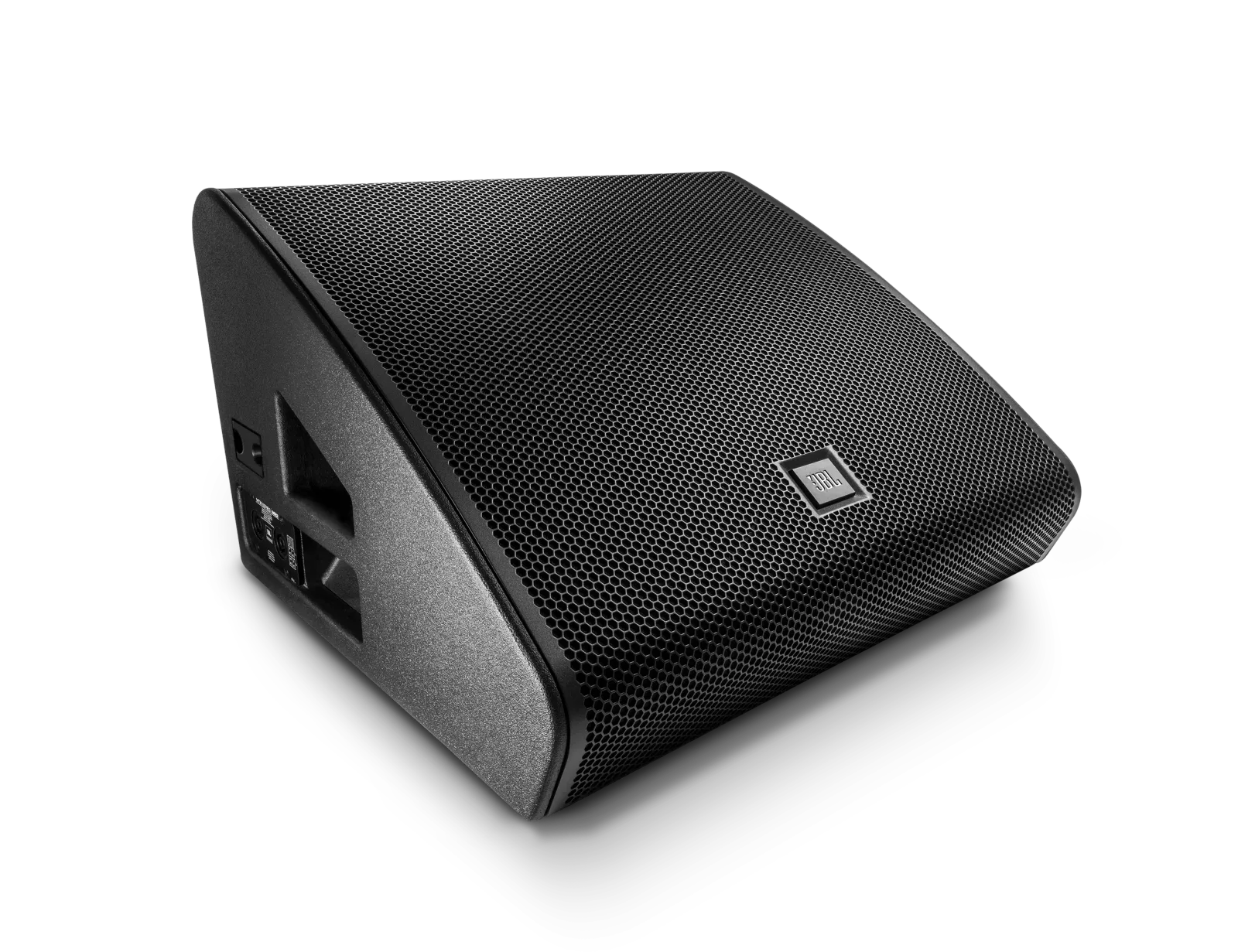

Grille

Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

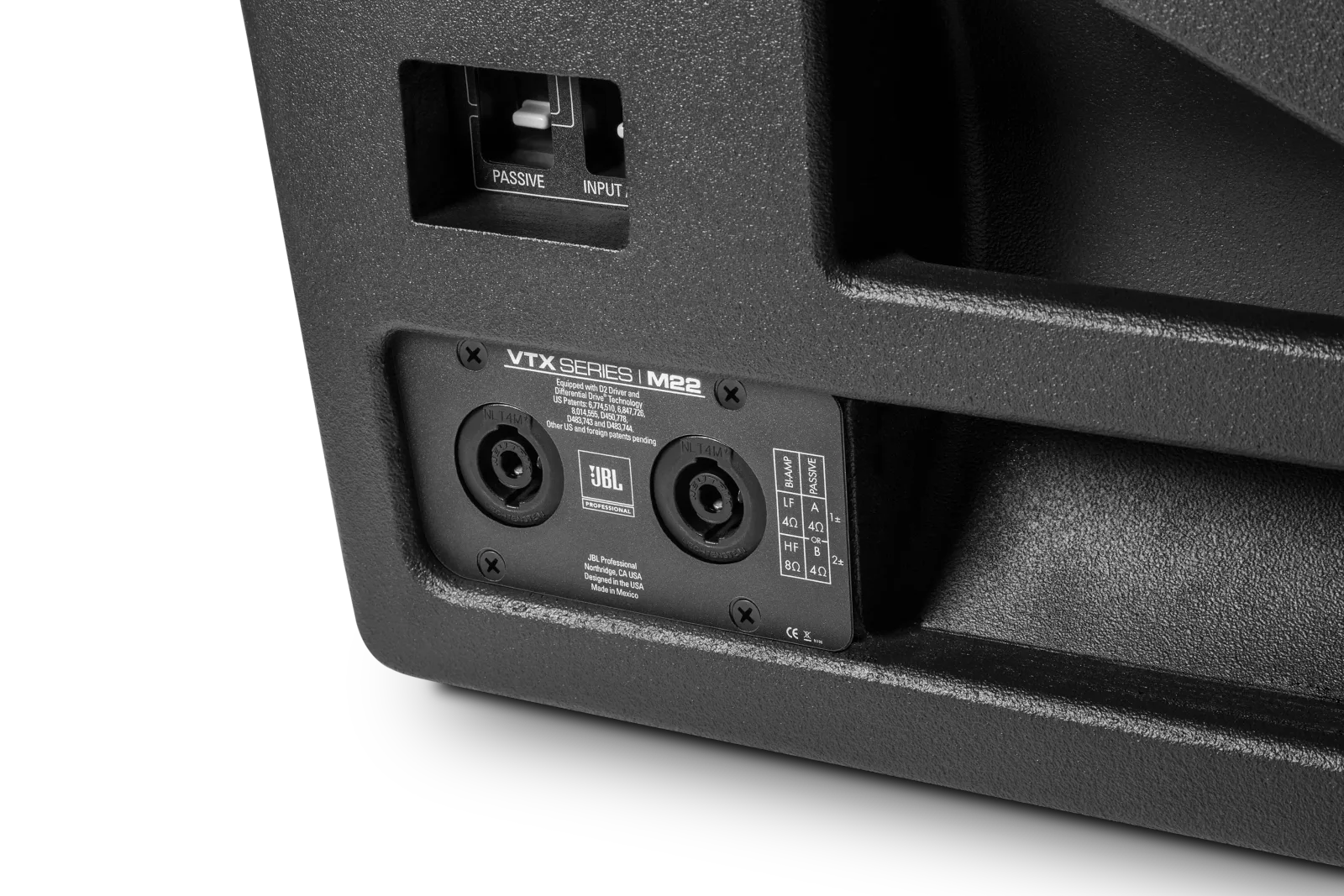

Input Connectors

Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik Speakon NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)

Dimensions (H x W x D)

380 mm x 671 mm x 555 mm (15 in x 26.4 in x 21.8 in

Net Weight (each)

27 kg (60 lbs)
