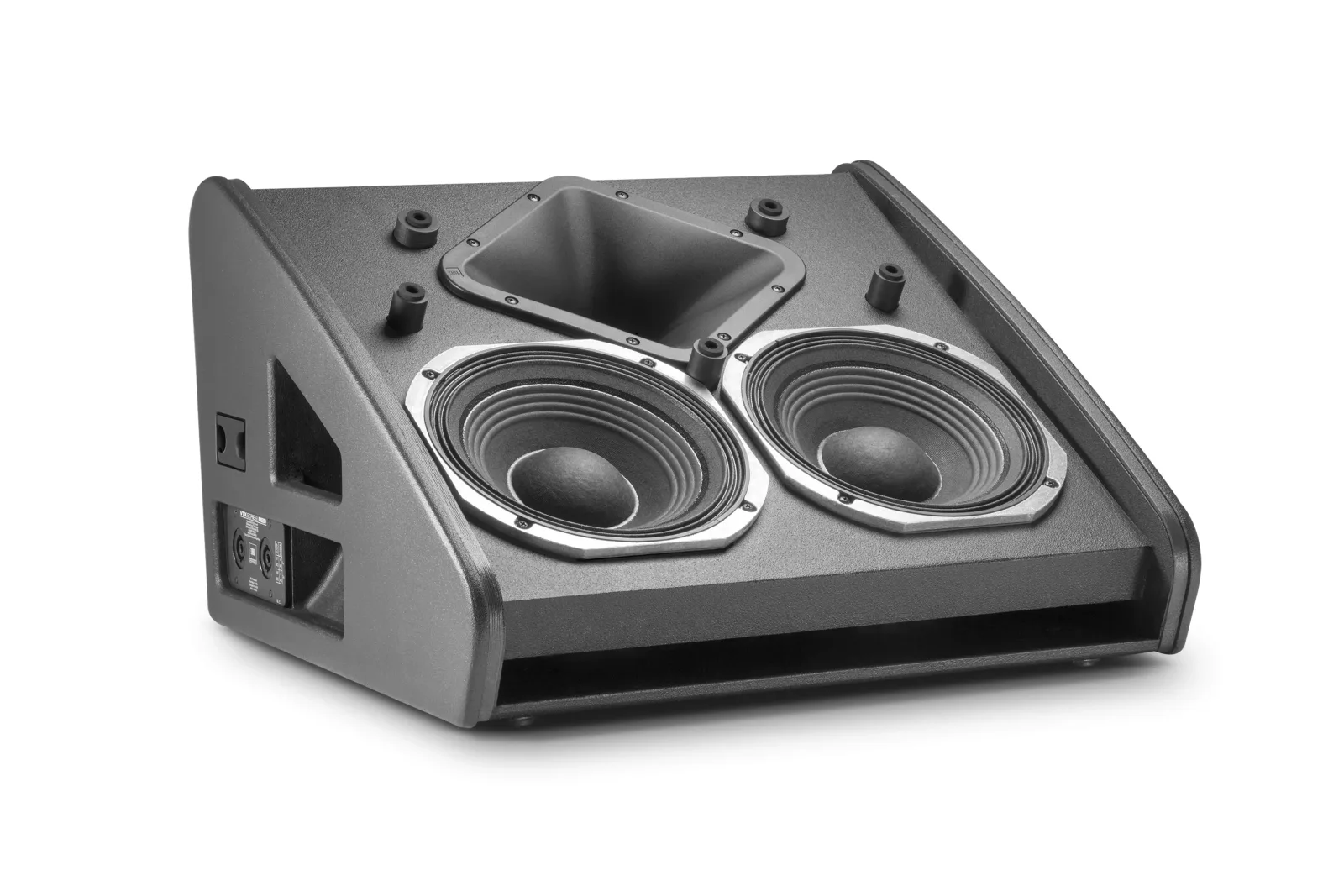

Features

Elegant, low profile, compact design suitable for touring and high profile broadcast applications

State of the art JBL transducers, including Differential Drive cone transducers and D2 dual diaphragm dual voice coil compression driver

60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology

Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment

Attribute

Value

Model

VTX M20

Frequency Range (-10dB)

55 Hz - 19.5 kHz

Coverage Pattern (-6 dB)

Horizontal: 60; Vertical: 60

System Input Power Rating

Passive: 1250 W Continuous (IEC / 100 hour) Active: LF: 1250 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour)

Maximum SPL (1m)

136dB (Preset: VTX M20 FR)

System Latency3

3.33ms

System Processing

Crown Audio I-Tech HD Series Crown Audio I-Tech 4x3500HD

Nominal Impedance

Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms

LF Driver

2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled

HF Driver

1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil

Monitor Angle

30 degrees

Enclosure

18 mm, 11-ply Finnish birch plywood

Grille

Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

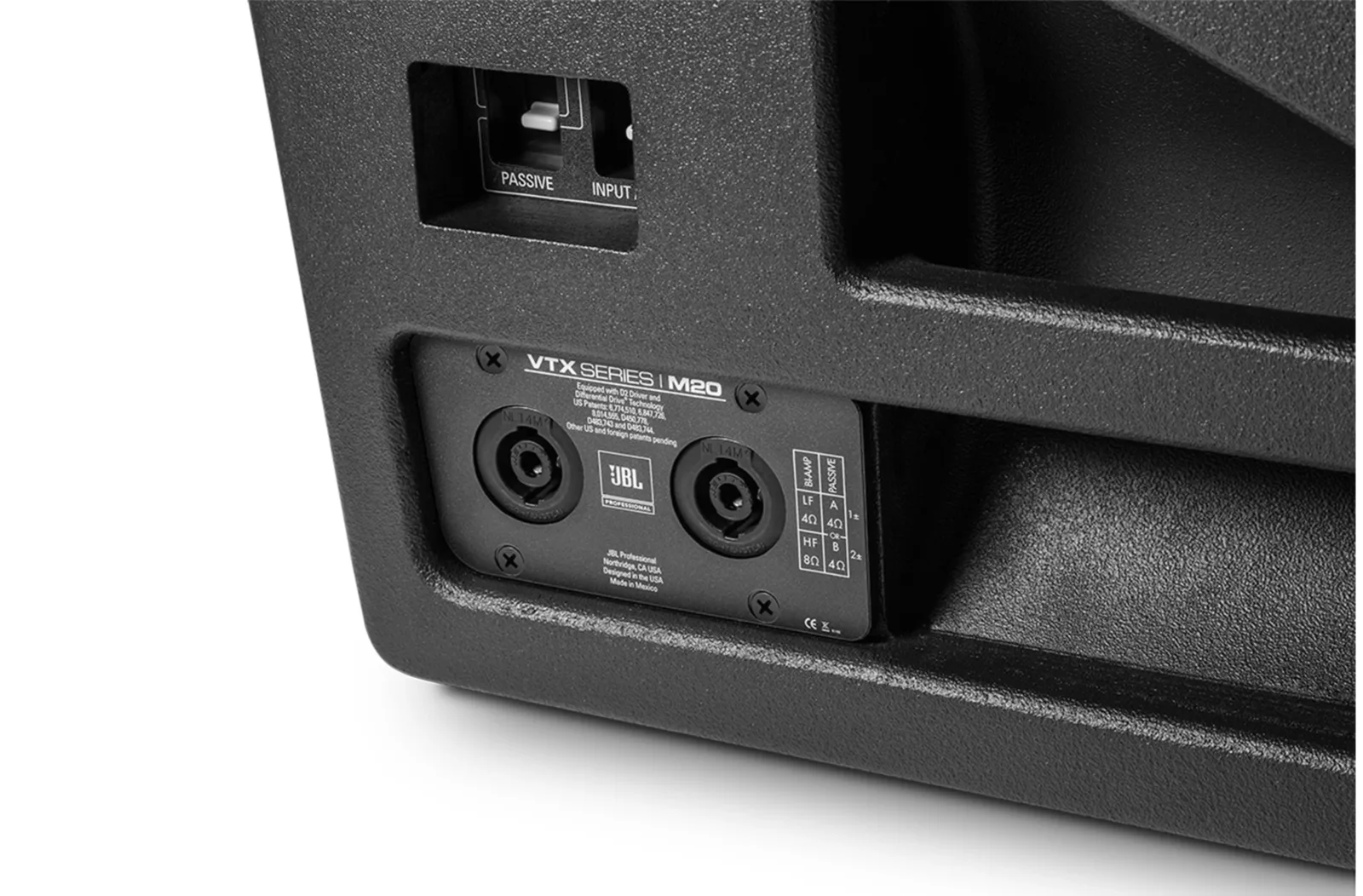

Input Connectors

Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik Speakon NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)

Dimensions (H x W x D)

342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)

Net Weight (each)

23 kg (51 lbs)
