Features

High output 3-way enclosure featuring the D2 Dual Diaphragm Dual Voice Coil high frequency compression driver in a light-weight trapezoidal enclosure

Differential Drive, Dual Neodymium Magnet, Dual Voice Coil, Direct Cooled MF and LF cone transducers

Multiple M10 attachment points facilitate a variety of suspension options

V5 Processing for use with Crown Audio I-Tech HD series amplifiers

Attribute

Value

Model

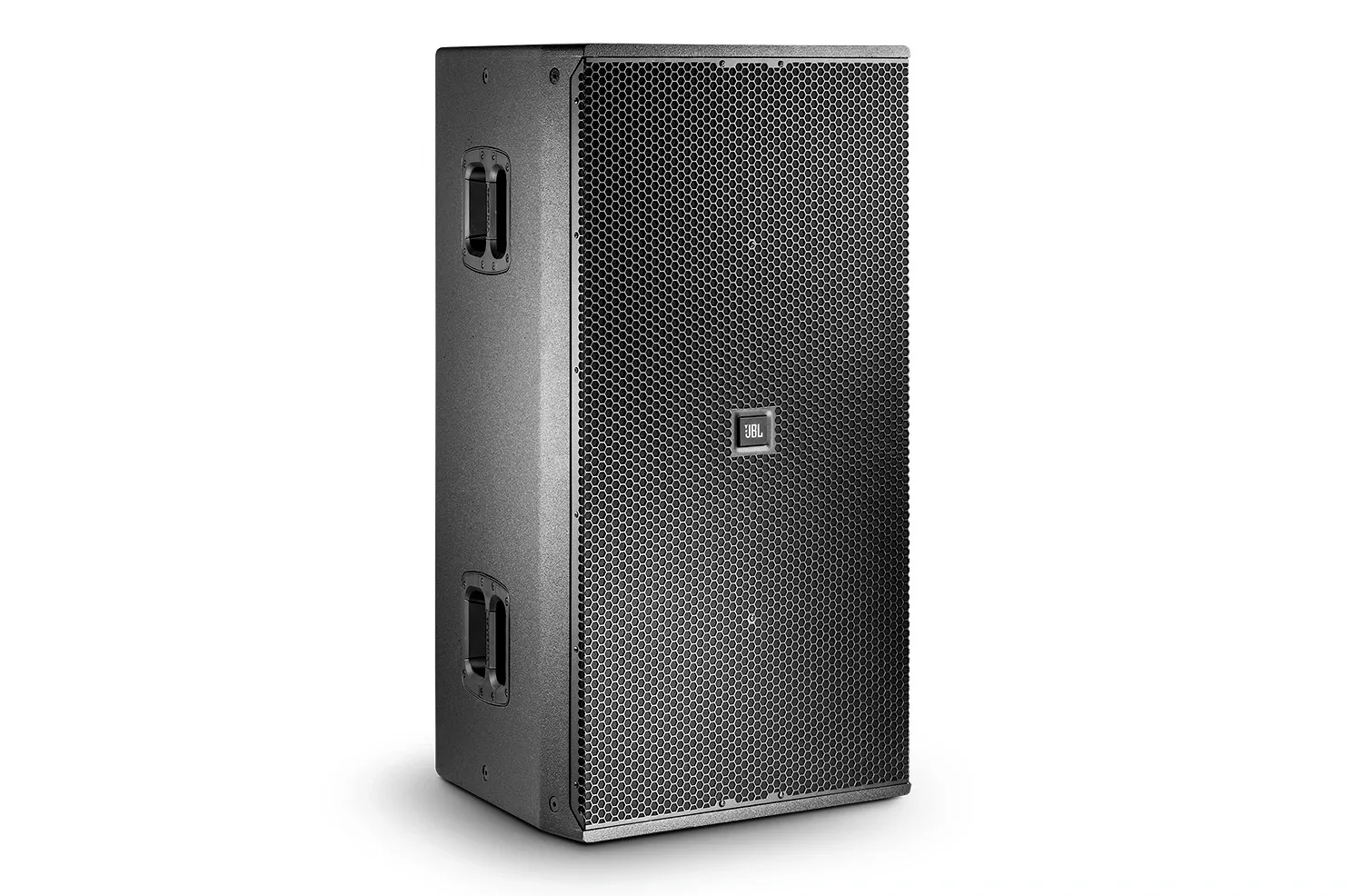

VTX F35/95

Frequency Range (-10dB)

39 Hz - 18 kHz

Coverage Pattern (-6dB)

/64: 60° Horizontal x 40°Vertical/95: 90° Horizontal x 50°Vertical

System Input Power Rating

LF: 2 x 800 W Continuous (IEC / 100 hour)MF: 270 W Continuous (IEC / 100 hour)HF: 100 W Continuous (IEC / 100 hour)

Maximum Peak Output *2

/64: 143dB (Preset: F35/64 FR)/95: 143dB (Preset: -F35/95 FR)

System Processing

Crown Audio I-Tech HD SeriesCrown Audio I-Tech 4x3500HD

System Impedance

LF = 2 x 8 ohms MF = 8 ohms HF = 8 ohms

LF Driver

2 x 2265H, 254 mm (15 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled

MF Driver

1 x 2169H, 203 mm (8 in) dia., 76mm (3 in) Dual Voice Coil, Neodymium Differential Drive, Direct Cooled

HF Driver

1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil

Enclosure

18 mm, 11-ply Finnish birch plywood; black DuraFlex finish; integral recessed handles

Grille

Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing

Input Connectors

Neutrik Speakon NL-8 (2x): LF1: 1± | LF2: 2± | MF: 3± | HF: 4±

Dimensions (H x W x D)

1051.5mm x 568.9mm x 528.3mm (41.4in x 22.4in x 20.8in)

Net Weight (each)

52.6 kg (116 lbs)

System Type

High Performance Dual 15” 3-Way Loudspeaker with 90 x 50 degree coverage

Suspension / Mounting

Integrated M10 mounting points
