| Model | Control 62P |
|---|
| Frequency Range (-10dB) | 150 Hz – 20 kHz |
|---|
| Frequency Range (±3 dB) | 200 Hz – 17 kHz |
|---|
| Power Rating | 50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs) |
|---|
| Nominal Sensitivity | 87 dB (4.0 V, 1 W) 84 dB (2.83 V) |
|---|
| Coverage Angle | 140° conical |
|---|
| Directivity Factor (Q) | 4.7 |
|---|
| Directivity Index (DI) | 6.2 dB |
|---|
| Maximum SPL (1m) | 97 dB continuous pink noise, 103 dB peak |
|---|
| Impedance | 16 ohms (no transformer taps) |
|---|
| Recommended High-Pass Frequency | 150 Hz |
|---|
| Drivers | 60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex coil-former. |
|---|
| Enclosure | High impact polystyrene |
|---|
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting) |
|---|
| Outdoor Capability | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating. |
|---|

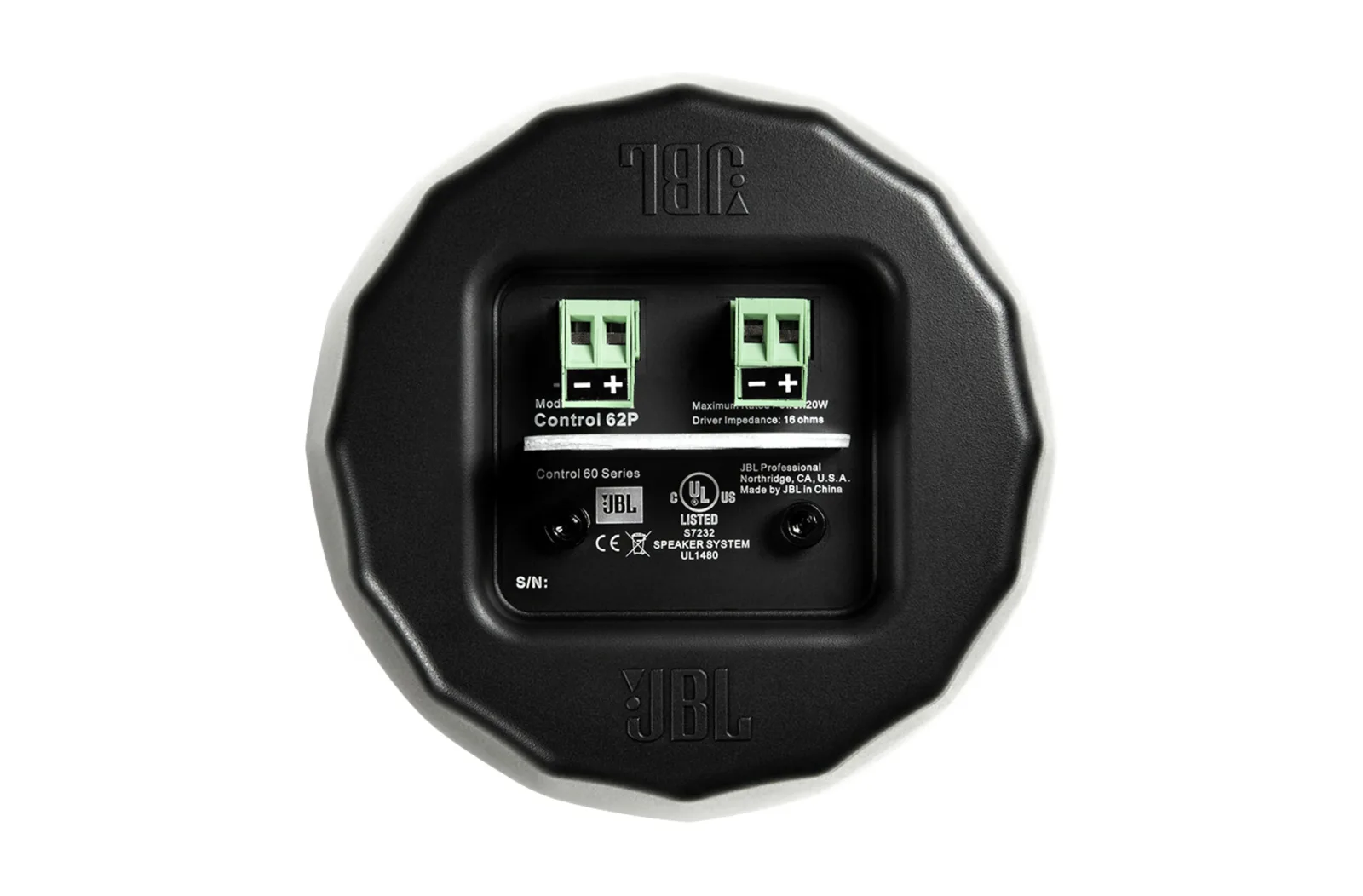

| Input Connectors | Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. |
|---|
| Suspension | Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). |
|---|
