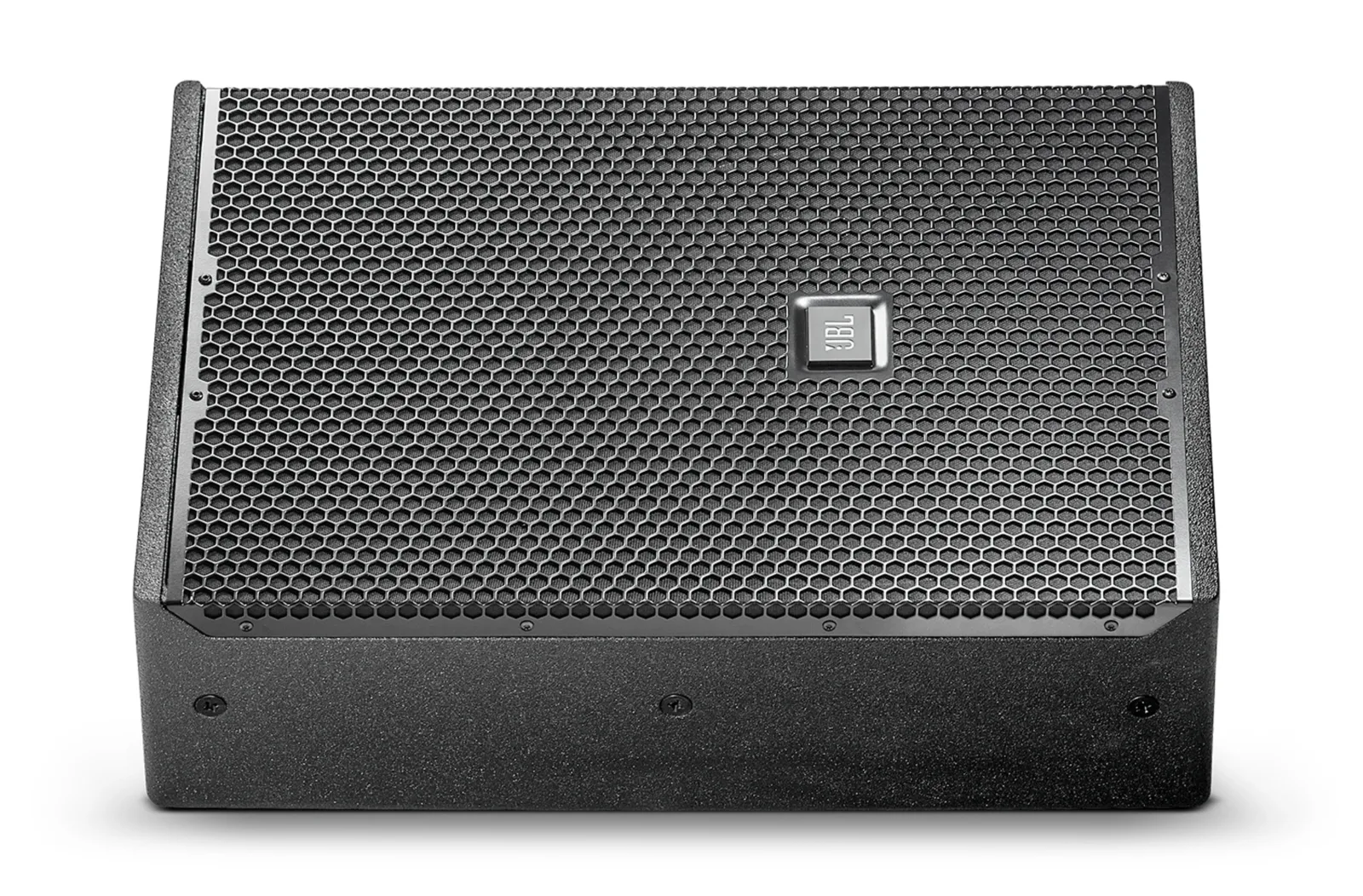

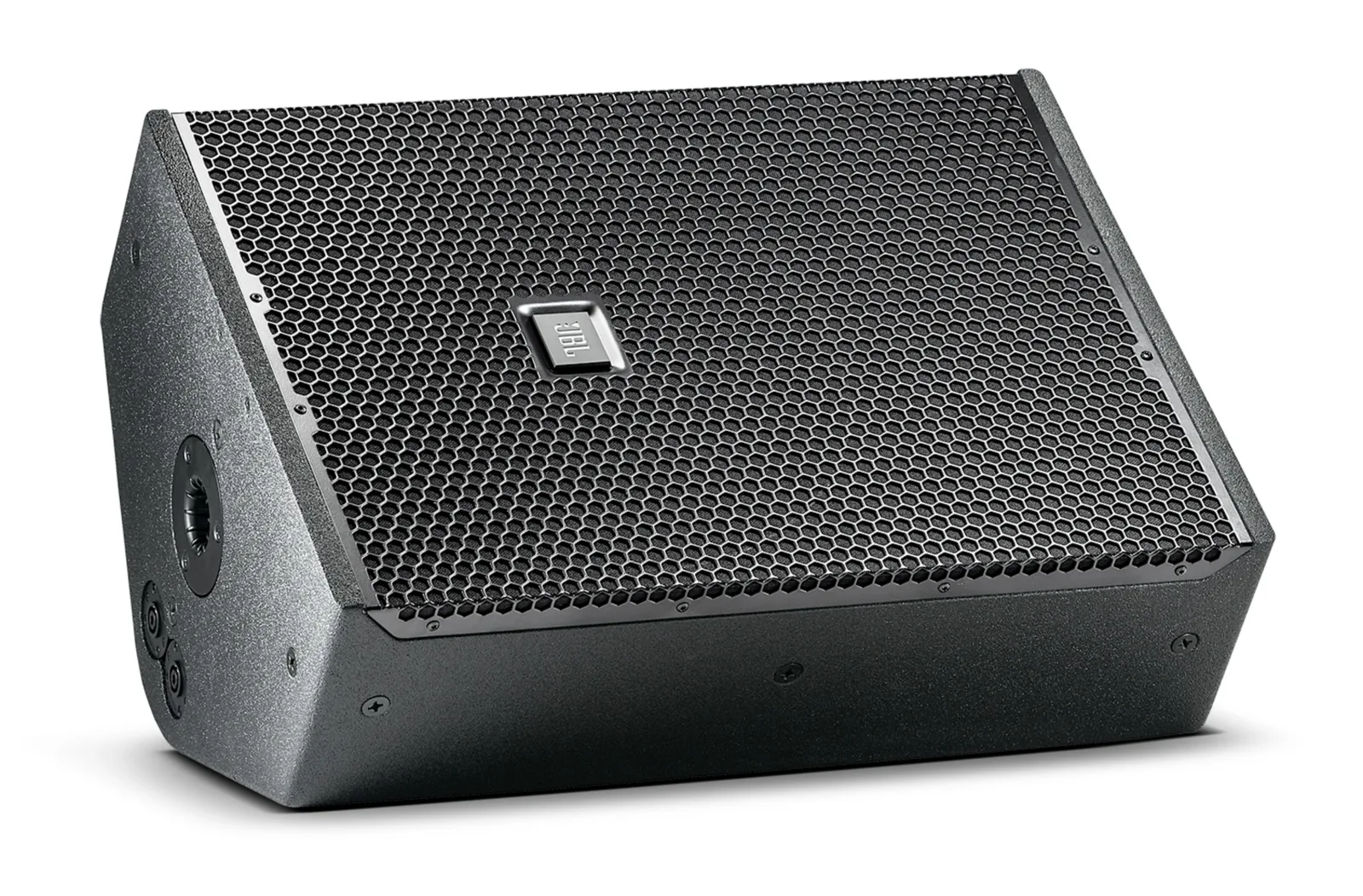

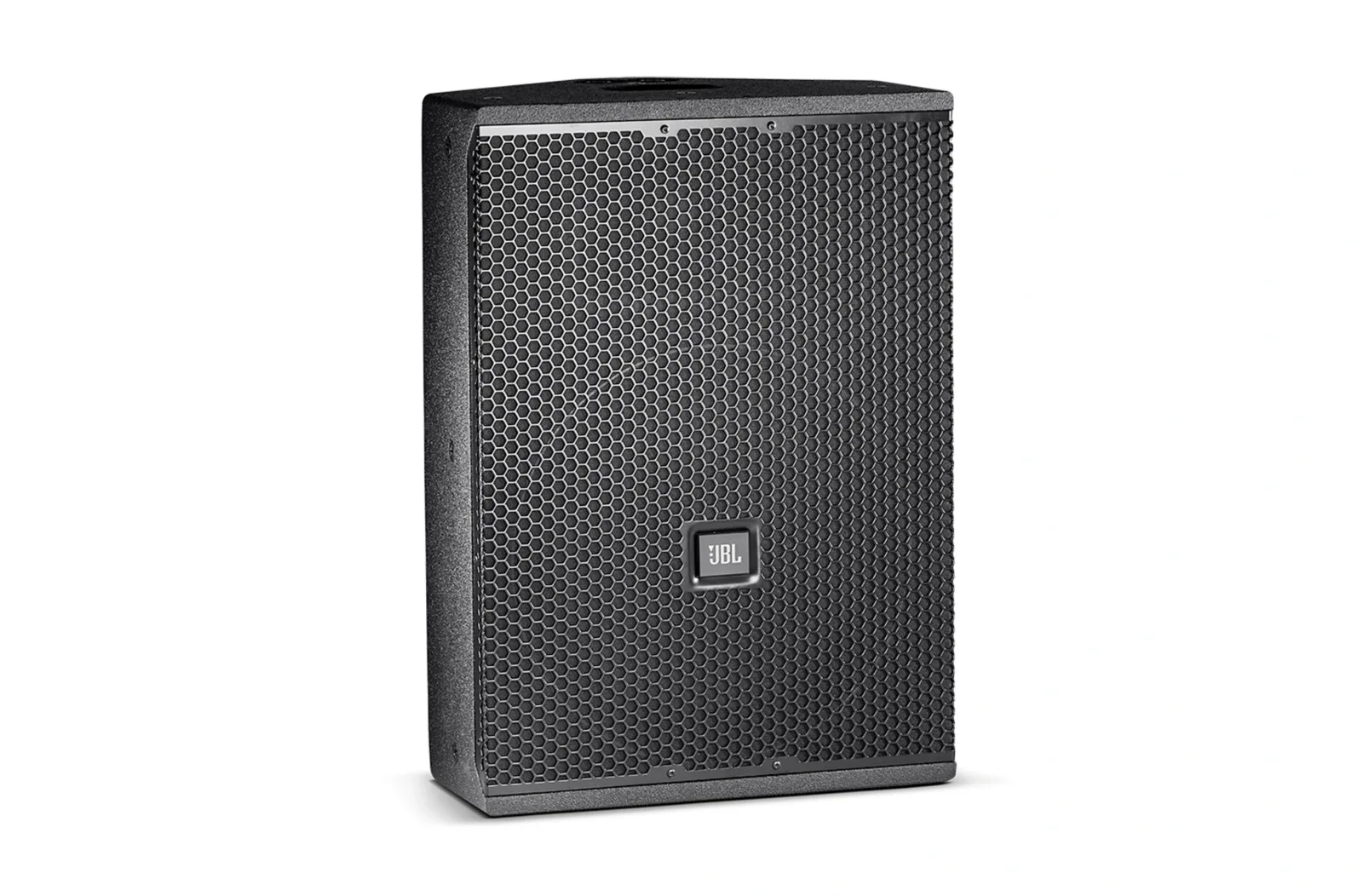

View larger image of JBL VTX F15 — official product photo
16 attributes
| Attribute | Value |
|---|---|
| Model | VTX F15 |
| System Type | 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive Woofer and D2 Dual Driver |

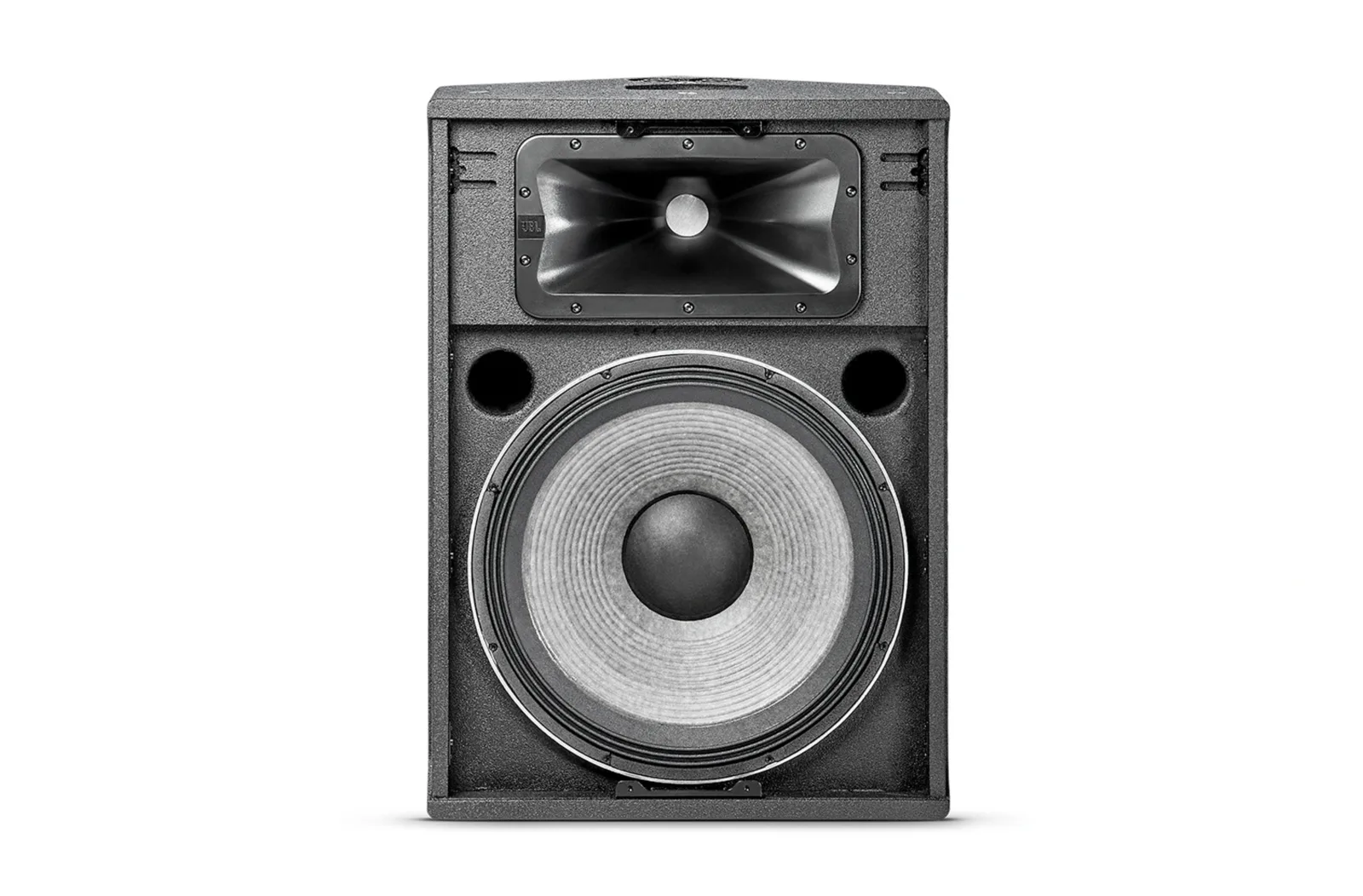

| Components | 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Coverage Pattern | 90 x 50 degrees |
| Frequency Range (-10dB) | 43 Hz - 21.5 kHz (short throw mode, free field) 42 Hz - 21.5 kHz (monitor mode, half-space) |
| Frequency Response (±3 dB) | 59 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space) |
| Sensitivity | 98 dB LF, 108 dB HF |
| Nominal Impedance | LF = 8 ohms HF = 20 ohms |
| Transducer Power Rating (AES 2 hour) | 1000W LF, 200W HF cont 4000W LF, 800W HF peak |
| Dimensions (H x W x D) | 640.1mm x 457.2mm x 327.7mm (25.2in x 18in x 12.9in) |
| Net Weight (each) | 22.9 kg (50.5 lbs) |
| Maximum Peak Output *2 | 134 dB (Preset: VTX F15 80) |
| LF Driver | 1 x 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer |
| HF Driver | 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver |
| Enclosure | Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex finish; integral recessed handle |
| Suspension / Mounting | Integral pole mount socket (35 mm diameter); 16 x M10 mount points; Optional U-bracket and extension rod (SS5-BK) accessories available |
