Val Audio QX12HP Passive Speakers

The QX12HP is a high performance cabinet which is designed for stage monitoring and general PA applications. Offering extremely flexible mounting options including a pole mount ada

Brand: Val AudioModel: QX12HP

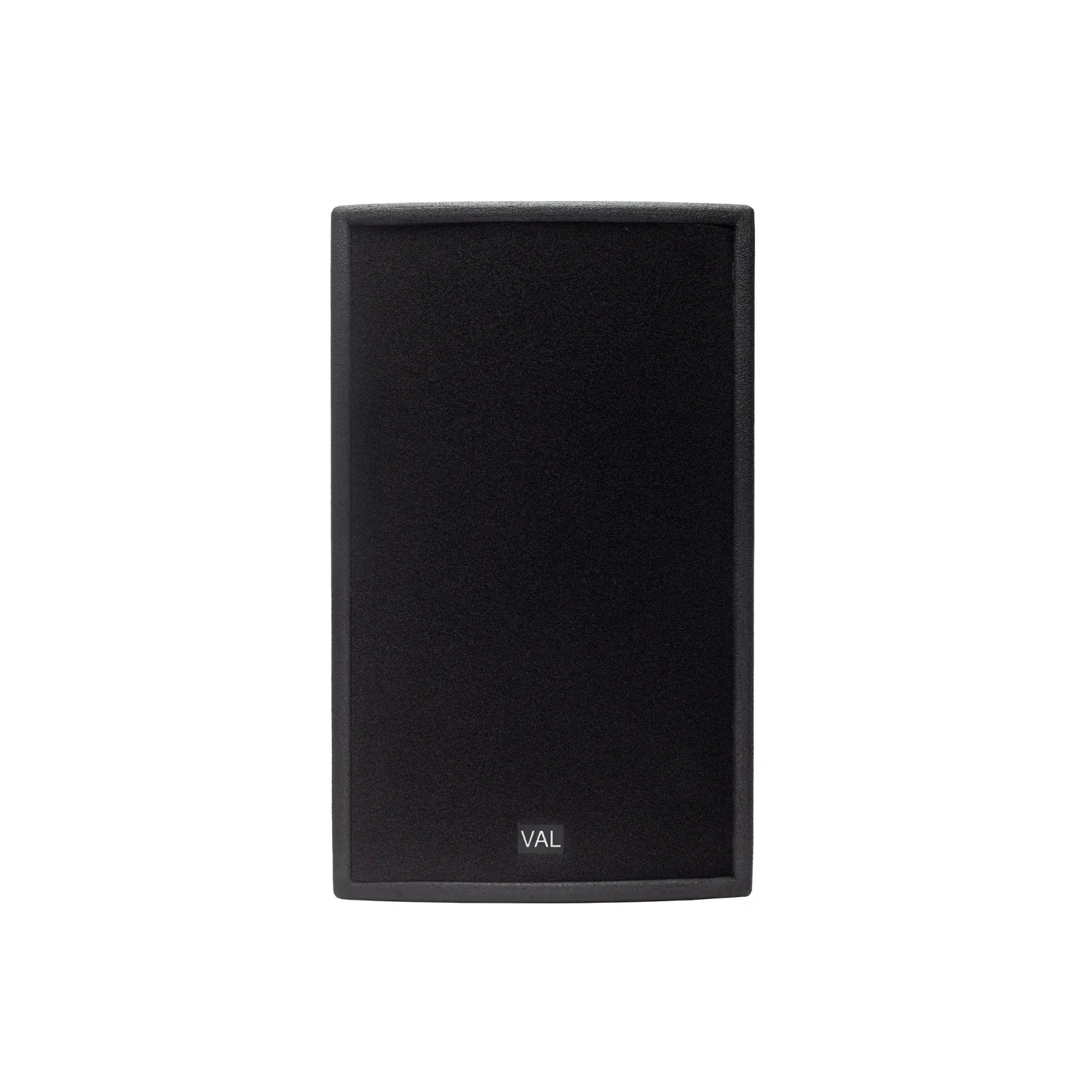

The QX12HP is a high performance cabinet which is designed for stage monitoring and general PA applications. Offering extremely flexible mounting options including a pole mount adapter and bothhorizontal and vertical M8 fly points, rotatable asymmetric CD horn and internal passive crossover designed to match the voicing of other products inthe series, all achieving a flat, linear frequency response. Using our own in-house designed and built drivers give depth and clarity which is unrivaled whilst VAL Audio’s renowned build quality makes this cabinet an easy choice. The discreet design with reticulated foam front andtextured paint finish and multiple integrated fixingpoints achieves a high class look suitable for anyapplication. Designed with a VAL audio 12” proprietary 400 W, 8 Ohm woofer and 1.7” compression driver , the internal passive crossover ensures a linear, usable frequency response of 55 Hz to 21 kHz (-6 dB) across an asym- metric 50° to 100° x 55° dispersion with rotatable CD horn. A maximum SPL of 130 dB (peak). Sharing voicing characteristics with the rest of the QX series allowing them to be used simultaneously, keeping a consistent tone. Mounting options include a pole mount adapter as well as integrated 12 x M8 fixing points for both horizontal and vertical flying. The rear cast aluminium connection plate has two 4 pin speakON connectors fitted as standard, one input and one link. The speakon connectors are wired on pins +1-1, with pass through of pins +2-2.

Features

High Power 400W RMS power capacity

Extremely smooth sounding fullrange loudspeaker High quality custom premium European drivers Proprietary asymmetric rotatable CD Horn HF – High power 1” exit compression driver with 1.7” diaphragm

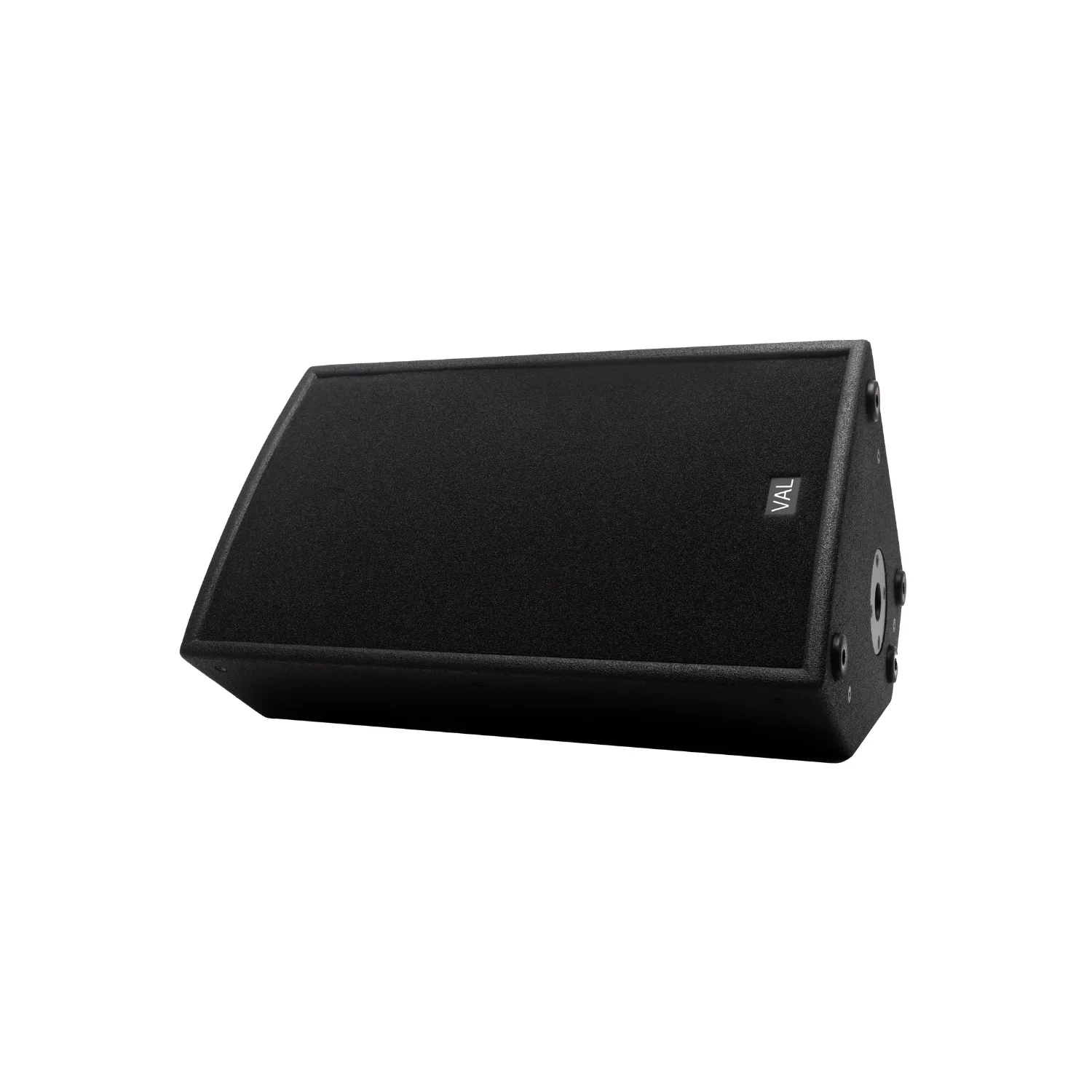

Multi purpose cabinet design for FOH or monitor use Birch plywood cabinet Touring grade textured waterborne black,scratch resistant coating Tropicalized moisture free construction (hardware and drivers) Comprehensive flying hardware M8 inserts & Pole mount adapter available

Attribute

Value

Model

QX12HP

Components

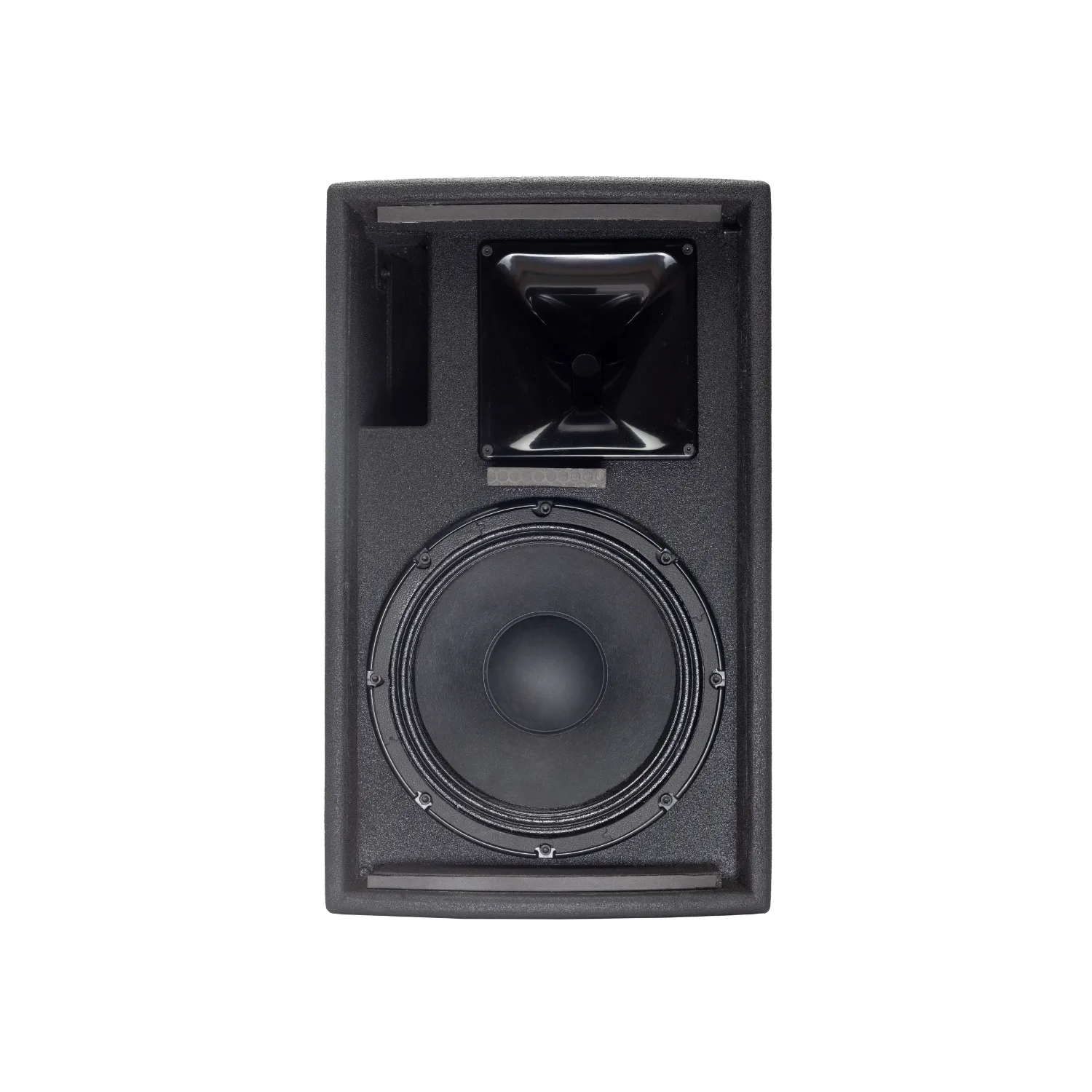

1 x 12” Low Frequency Driver 1 x 1.7” Horn loaded Compression Driver

Power Handling

400W RMS

Impedance

8 ohm

Max SPL

130 dB

Design

12” Reflex Tuned, Mid High Point Source Cabinet

Power Handling (AES)

400 Watts (continuous)

Max. Power Handling (AES)

800 Watts (program) 1600 Watts (peak)

Sensitivity 1W / 1m

98 dB

Max. SPL

124 dB cont 130 dB peak

Usable Frequency Range (-6 dB)

55 Hz – 21 kHz

Dispersion

50° to 100° x 55°, Rotational

Recomended Amplification

400 – 800 Watts

System Controller

Optional

Speaker Cables

Min – 2 x 2.5 mm² Preferred – 2 x 4 mm²

Crossover

Passive – 1.9 kHz

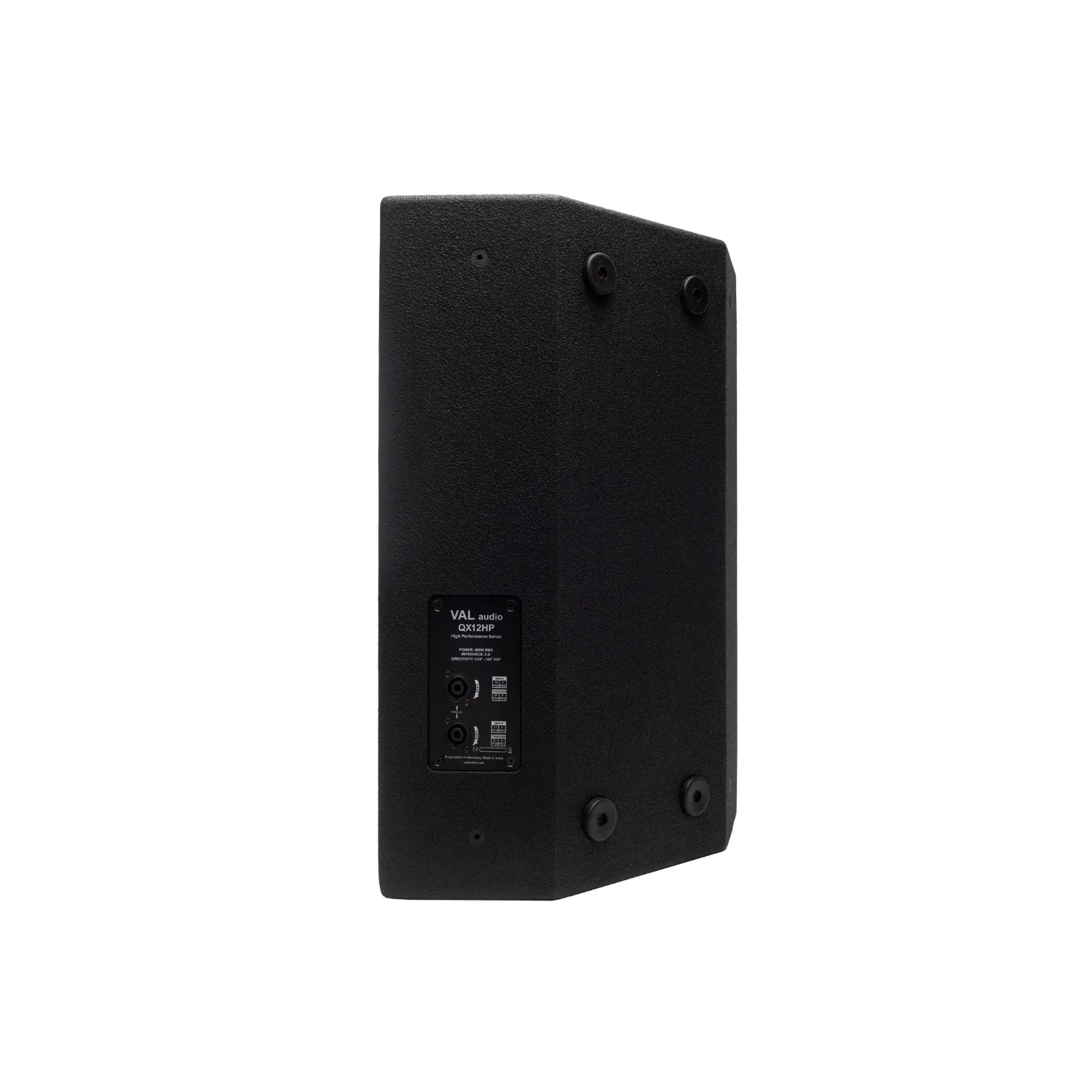

Connectors

2 x 4 pole Speakon Connectors

Dimensions (H x W x D mm)

647 x 385 x 360

Weight (kg)

Shipping Weight (kg)

28 (1 cabinet per carton)

Colour

Black

Fitted as Standard

Pole mount adapter

Rigging

12 x M8 mounting points for horizontal and vertical flying
