Val Audio ZX15HP Passive Speakers

The ZX15HP is a high-output, ultra high-performance 15” two-way full-range loudspeaker engineered for demanding professional sound reinforcement applications. Designed to deliver e

Brand: Val AudioModel: ZX15HP

The ZX15HP is a high-output, ultra high-performance 15” two-way full-range loudspeaker engineered for demanding professional sound reinforcement applications. Designed to deliver exceptional clarity, deep low-frequency extension, and outstanding projection, the ZX15HP combines premium European custom transducers with precision acoustic engineering to achieve class-leading output and tonal accuracy. With 800W RMS power handling and peak SPL capability of 134 dB, the ZX15HP provides powerful, controlled performance for FOH systems, stage monitoring, and installation environments. Its rotatable constant-directivity horn ensures flexible coverage control, while the rugged birch plywood enclosure and touring-grade finish guarantee long-term reliability in mobile and fixed installations. The ZX15HP is built for professionals who require uncompromised performance, durability, and sonic excellence.

Features

– Class Leading Output Premium Custom European LF & HF Transducers 42

Hz – 21 kHz Extended Full-Range Response 90° × 40° Rotatable Constant Directivity Horn 1.4” Exit Compression Driver with 3” Titanium Diaphragm Multipurpose FOH & Stage Monitor Enclosure Birch Plywood Cabinet Construction Touring-Grade Scratch-Resistant Textured Finish 12 × M8 Rigging Points with Integrated Pole Mount

Attribute

Value

Model

ZX15HP

Components

1×15” LF, 1.4” exit HF

Power Handling

800W RMS / 1600W Program / 3200W Peak

Impedance

8 ohm

Max SPL

134 dB

Nominal Impedance

8 ohms

Frequency Response (-6dB)

42Hz – 21KHz

Average Sensitivity

99dB/W/m

Calculated Max SPL / 1m

128dB Continuous / 131dB Program / 134dB Peak

Nominal Directivity

90° (H) x 40° (V), CD Horn

Recommended Amplifier

800W – 1600W

Low Frequency Driver

1 × 15’’ Custom ferrite magnet

LF Chassis

Die Cast Aluminum

LF Voice Coil Diameter

4’’ / 101.6mm

High Frequency Driver

1.4’’ Exit Custom Compression driver ferrite magnet

HF Voice Coil Diameter

3’’ / 75mm

HF Diaphragm

Titanium Diaphragm

Crossover

Internal passive crossover, 1.4KHz crossover point

Flying Hardware

12 × M10 inserts

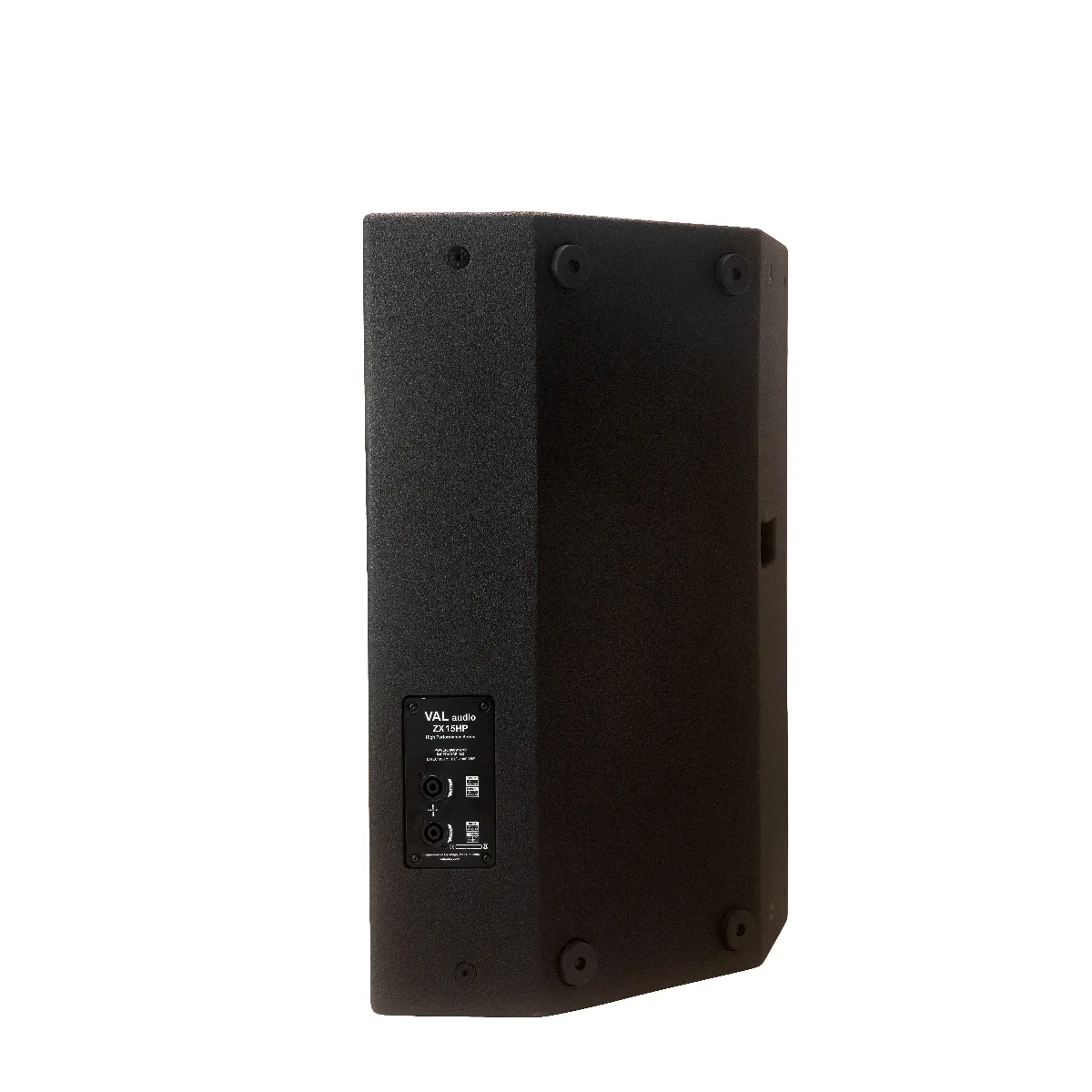

Connectors

2 × NL4 Speakon

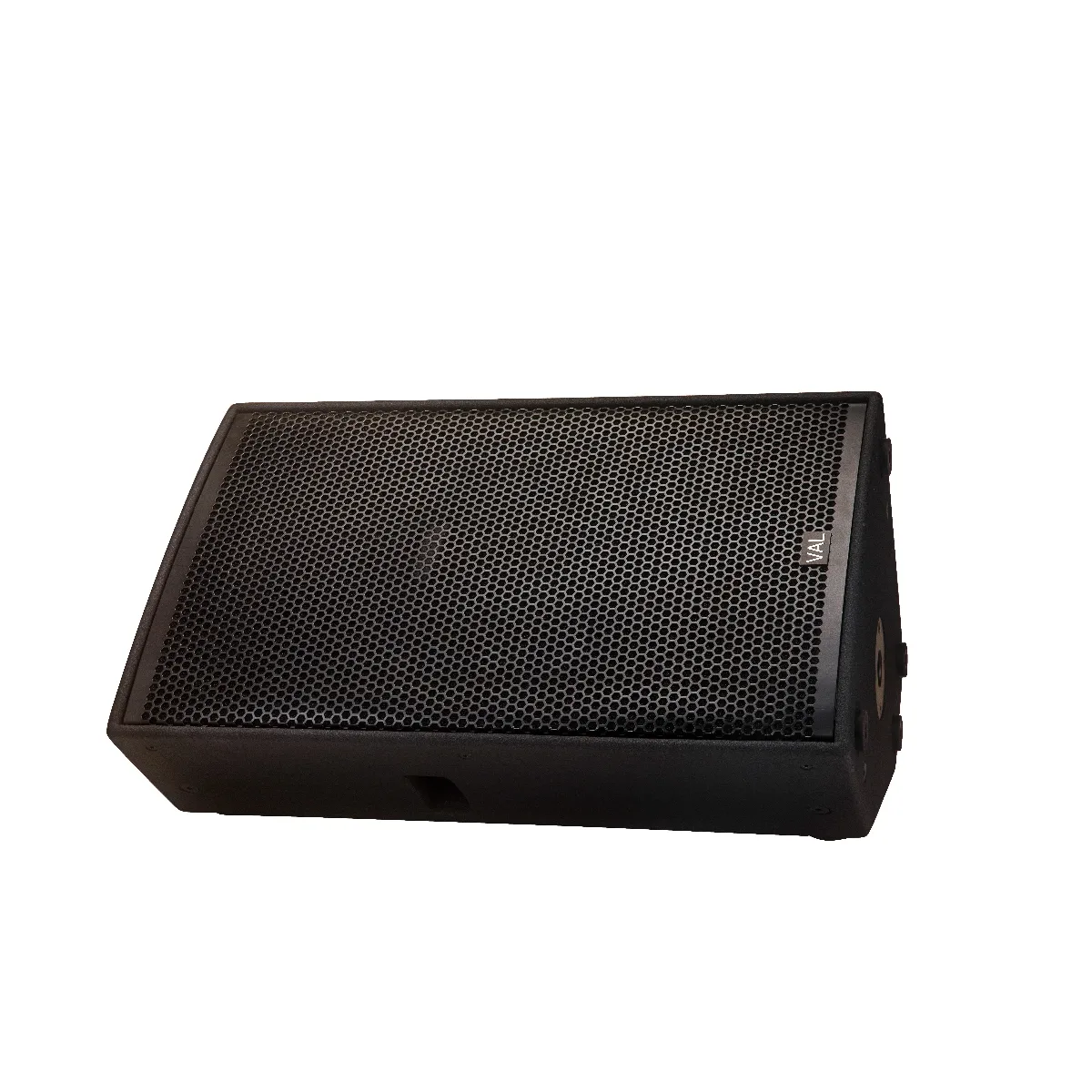

Floor Monitor Wedge

Yes

Pole Mount Adapter

Yes

Cabinet

18mm Birch Plywood
