View larger image of JBL VRX918S — official product photo
19 attributes
| Attribute | Value |
|---|---|
| Model | VRX918S |
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 31 Hz – 220 Hz |
| Dimensions (H x W x D) | 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) |
| Frequency Range (-10dB) | 31 Hz – 220 Hz |
| Recommended Crossover Frequencies | 80 Hz, 24 dB / octave HPF80 Hz, 24 dB / octave LPF |
| System Maximum SPL | 130 dB SPL peak |
| System Sensitivity (1w @ 1m) | 95 dB SPL |
| LF Driver | 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer |
| Nominal Impedance | 8 ohms |
| Active Tunings | Tunings available at |
| Enclosure | Rectangular, 18 mm, 13-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit or 10mm eyebolt |
| Finish | Black DuraFlex finish |
| Grille | Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing. |
| Inputs | Neutrik Speakon NL-4 (x2) |
| Net Weight (each) | 37 kg (81 lb) |

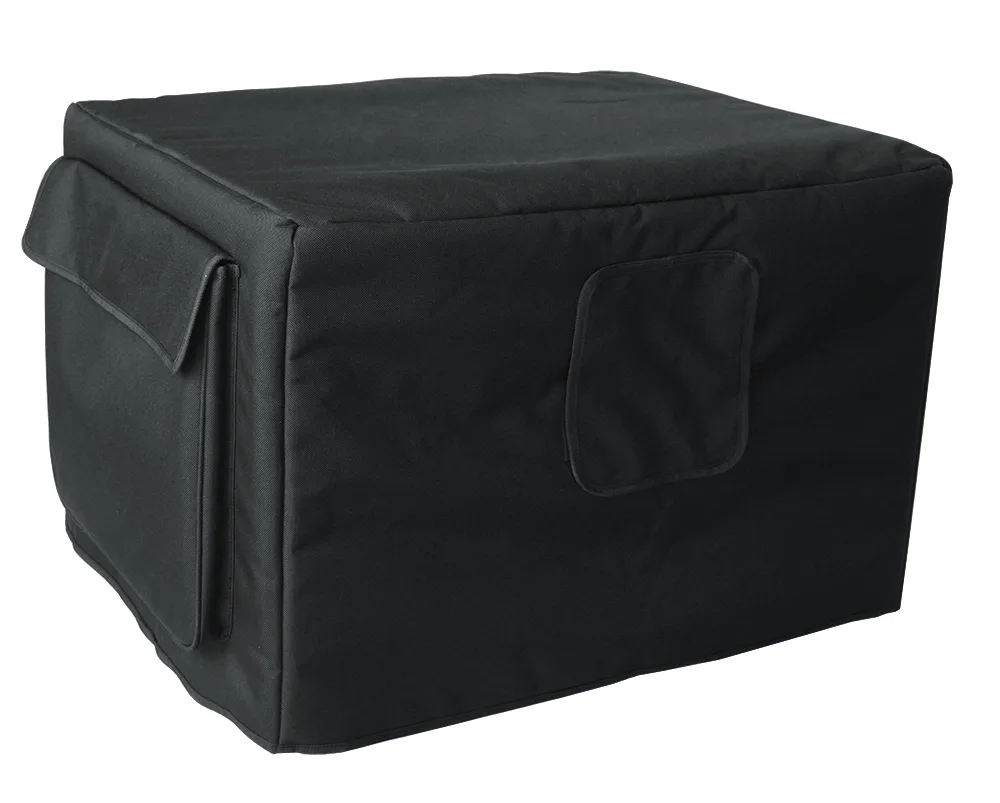

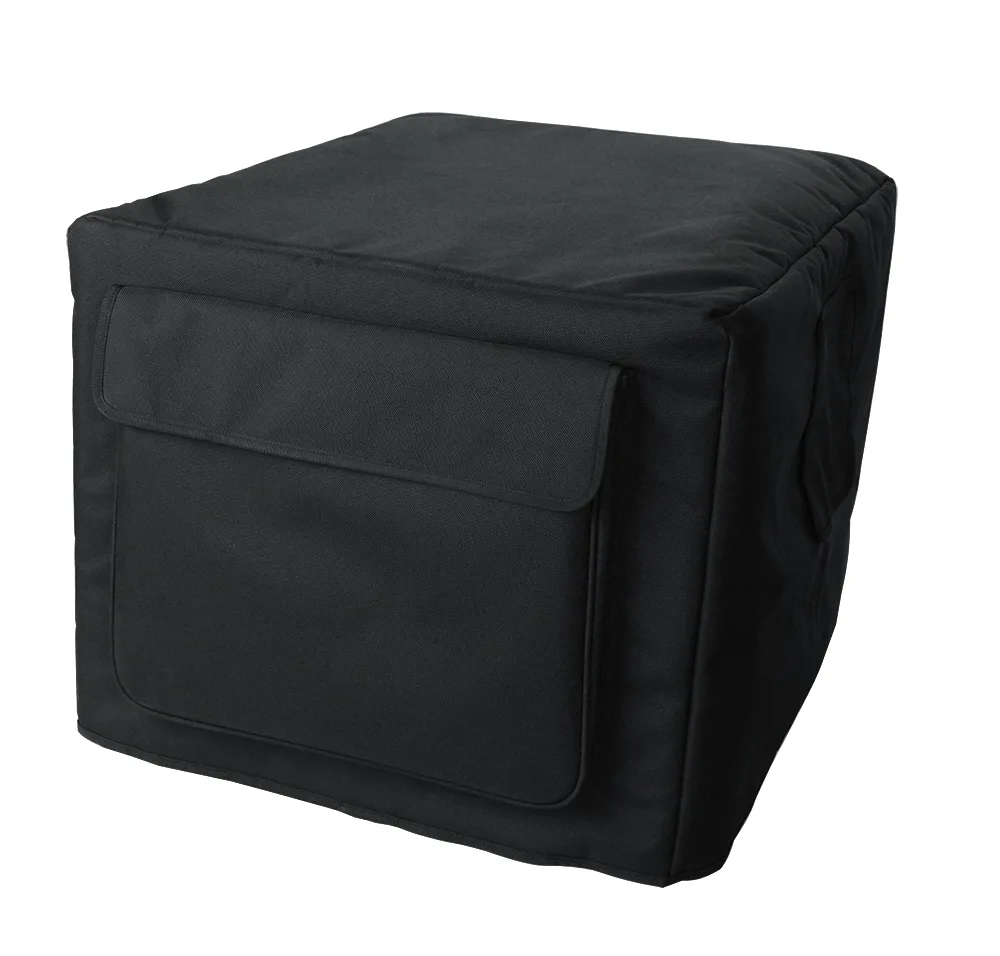

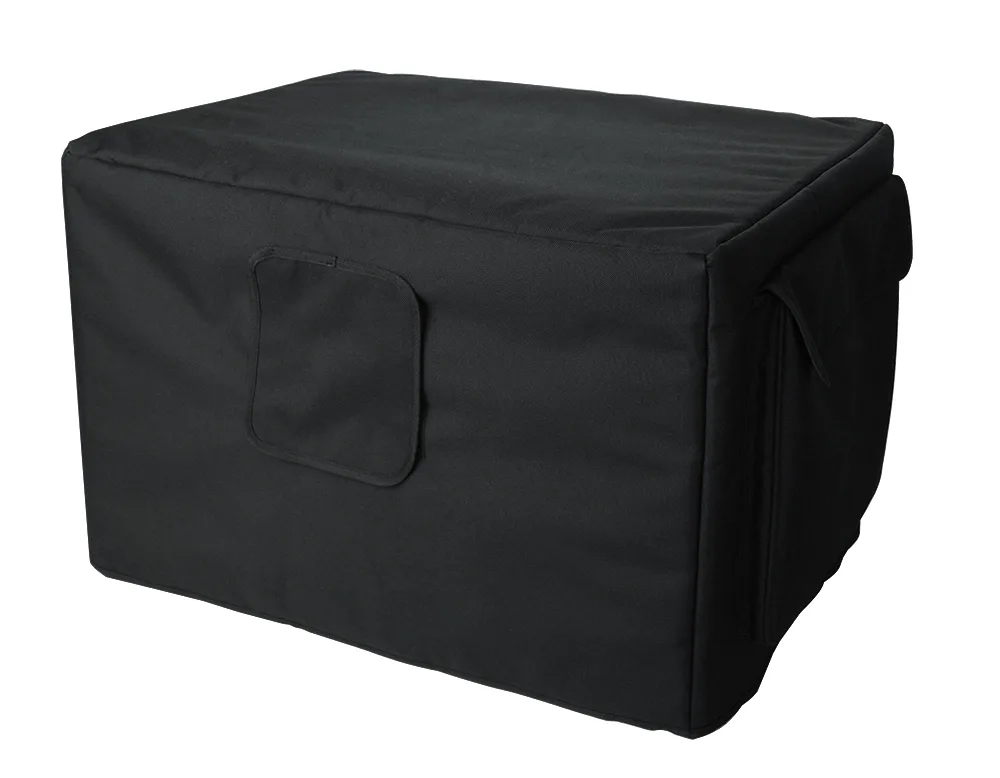

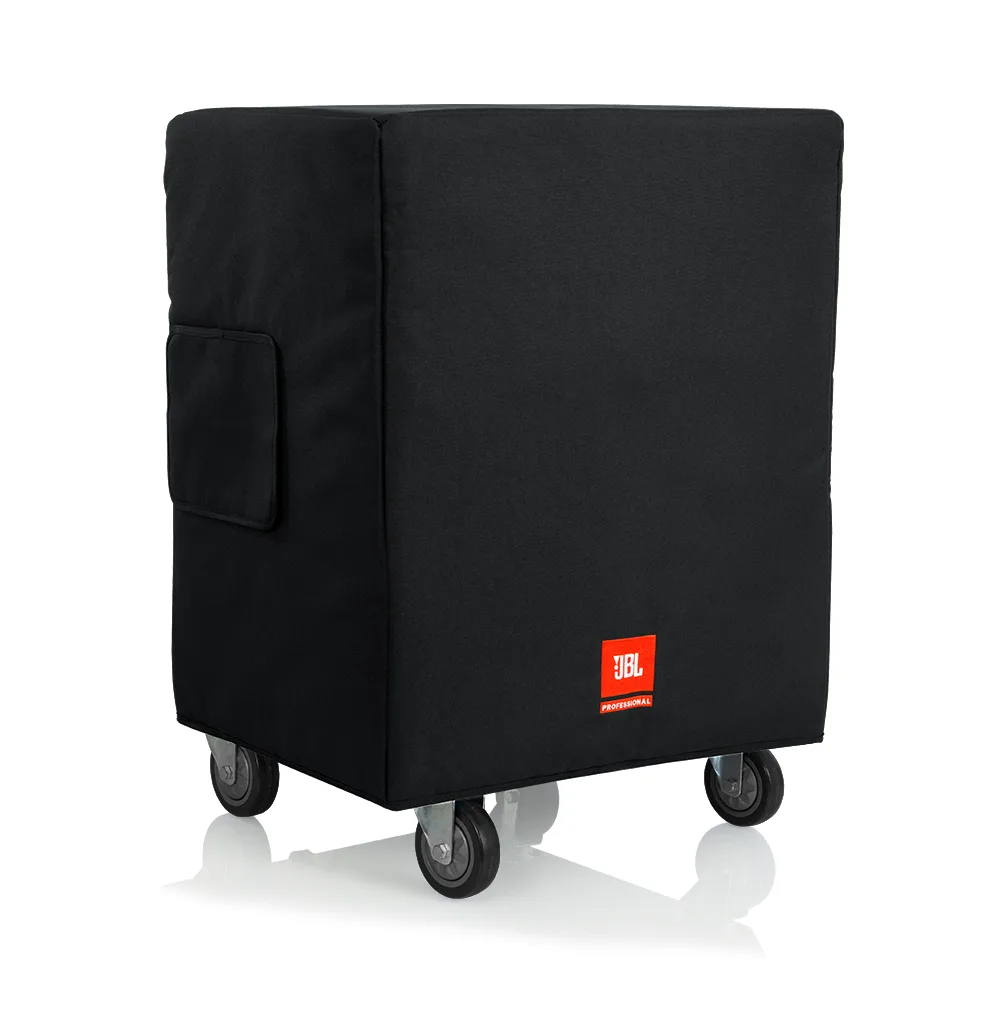

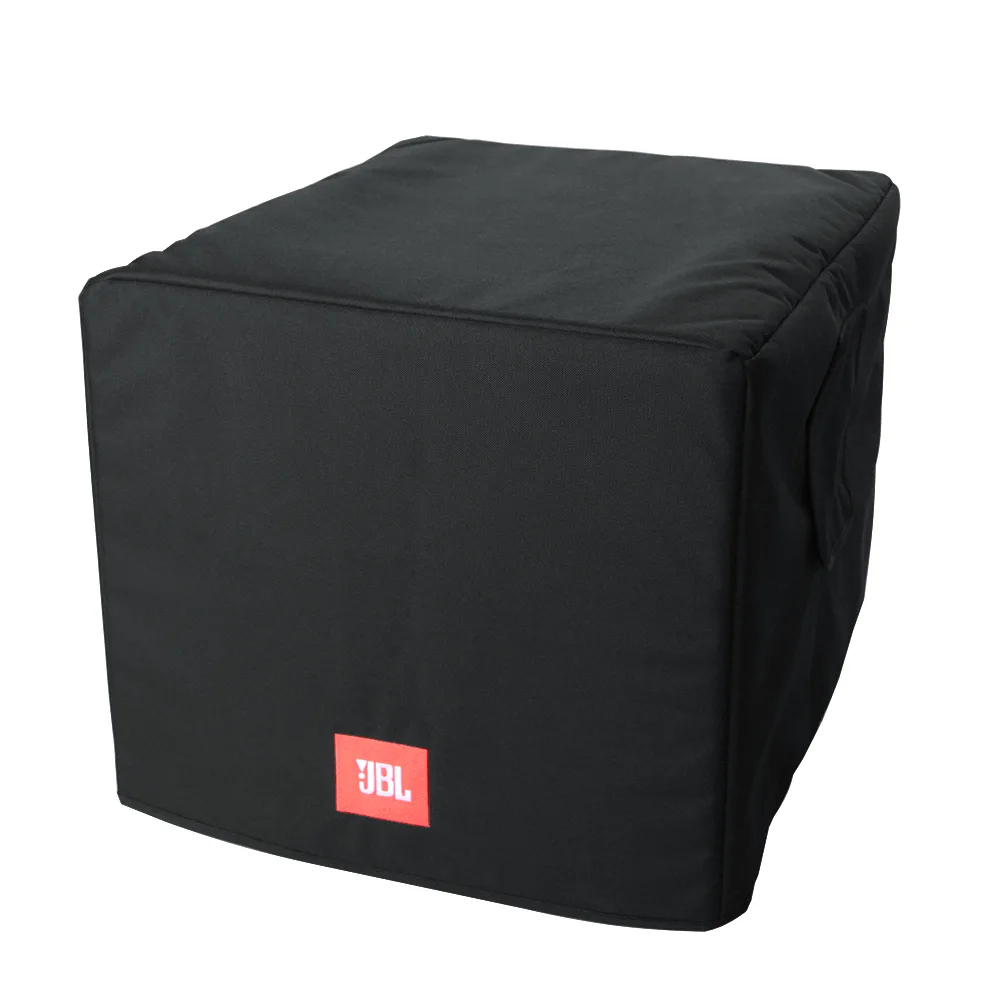

| Optional Accessories | SRX718S-CVR: Pull-over padded coverSS4-BK: Adjustable, heavy-duty pole, M20 thread to 35 mmWK-4: Caster kitVRX-AF: Array Frame KitM-10 eyebolt kit |
| Outputs | 1 x XLR |
