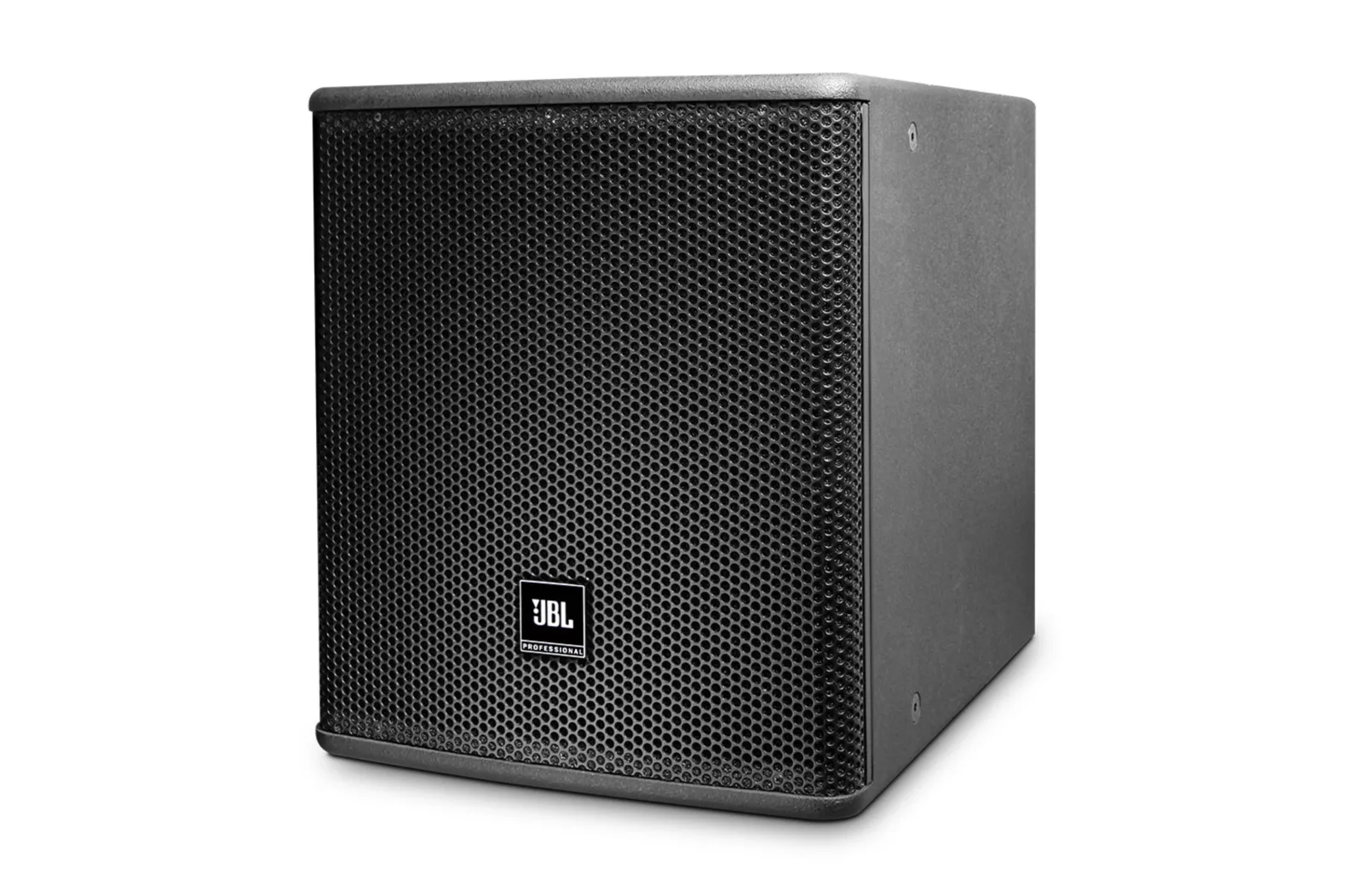

View larger image of JBL AC115S — official product photo
16 attributes
| Attribute | Value |
|---|---|
| Model | AC115S |
| Frequency Range (-10dB) | 32 Hz - 250 Hz |
| Frequency Response (±3 dB) | 40 Hz - 250 Hz |
| System Sensitivity (1w @ 1m) | 94 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL (1m) | 120 dB (126 dB peak) |
| System Power Rating | 500W (2000W peak), 2 hrs (AES rated) 400 W/800 W/1600 W (Continuous/Program/Peak) (IEC rated) |
| LF Driver | 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 18 mm multi-ply hardwood plywood |
| Grille | Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing |
| Finish | Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish. |
| Suspension Attachment | 12 x M10 threaded suspension points |
| Dimensions (H x W x D) | 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in |
| Net Weight (each) | 24 kg (52.9 lbs) |
| Nominal LF Driver Impedance | 8 ohms |
