Features

• 60° by 40° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
• IFS Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
• Dual 2432H compression drivers with 3” diaphragms.
• Dual CMCD-82H 8” horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs.
• Dual 15” low-frequency Differential Drive, dual voice coil – dual magnetic gap woofers.
• Pattern control maintained to below 400 Hz.

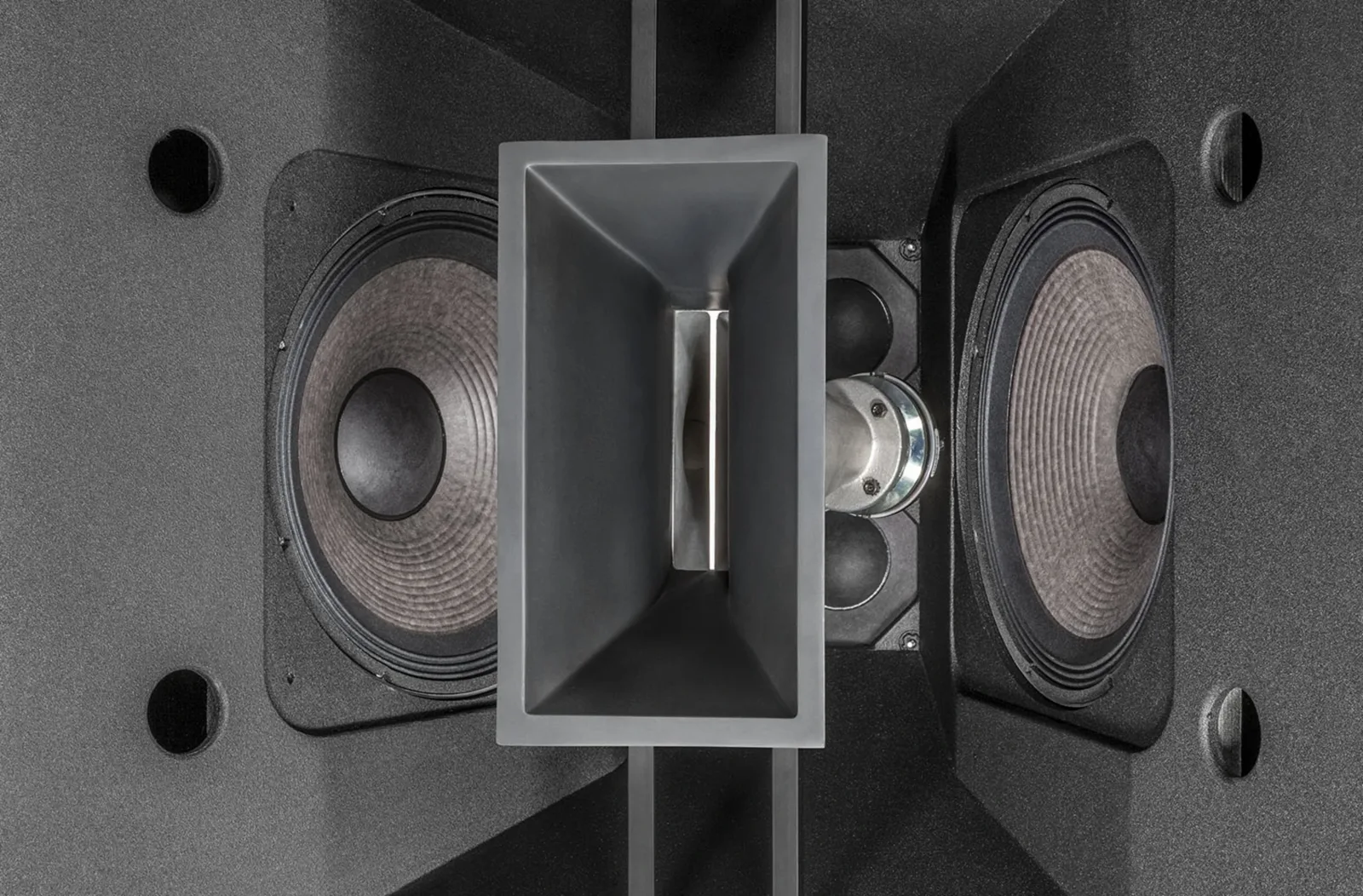

• Co-axial mid / high-frequency module layout improves mid frequency arrayability and minimizes size.
• Integrated rigging system simplifies array design and construction.
