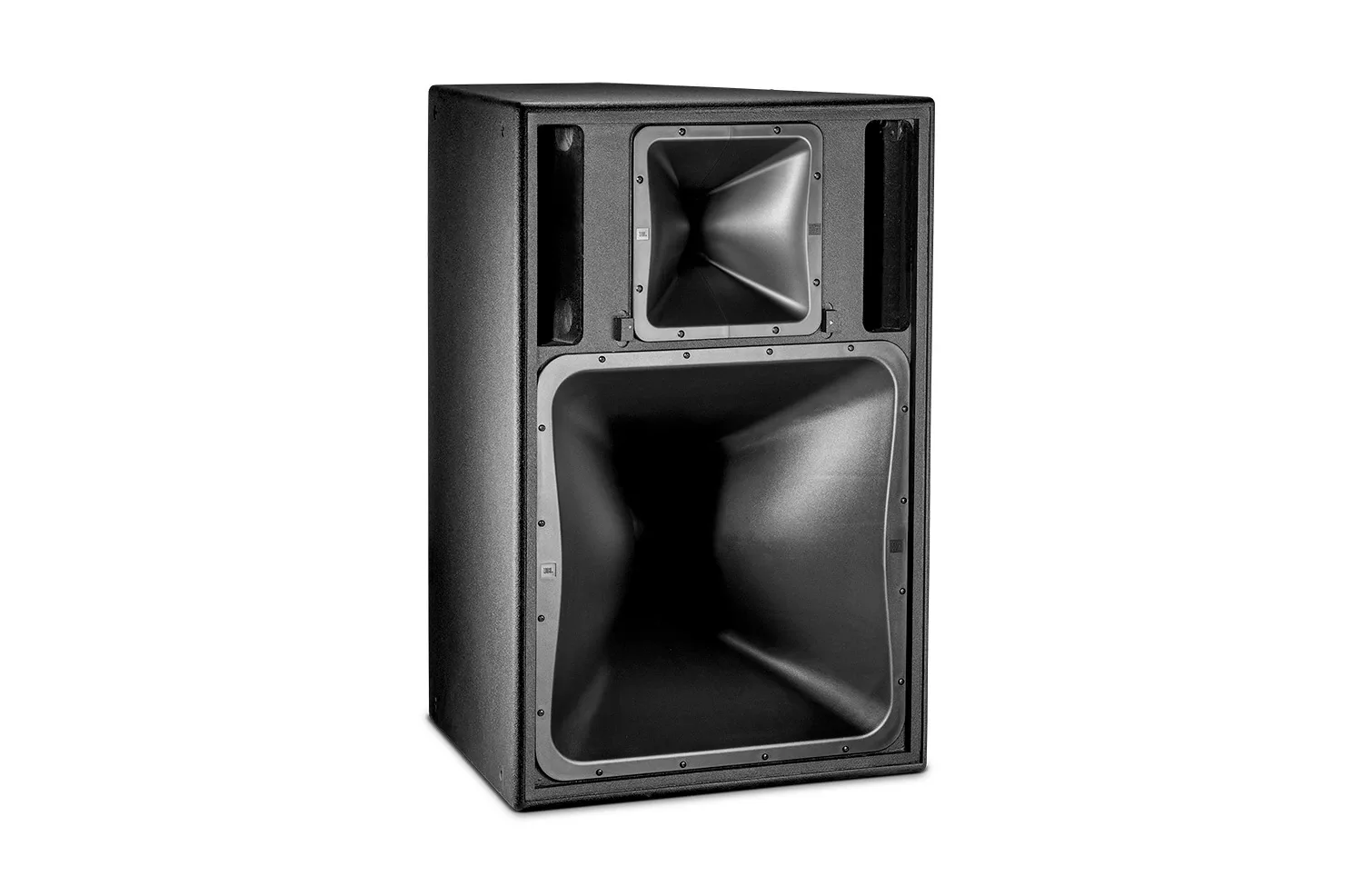

| Model | PD6322/43 |
|---|
| Frequency Range (-10dB) | 41 Hz to 17 kHz |
|---|
| Frequency Response (±3 dB) | 49 Hz to 15 kHz |
|---|
| Coverage Pattern | /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50° |
|---|
| Crossover Modes | Tri-amp / Bi-amp (passive mid-high) switchable |
|---|
| Passive Crossover | 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 1.5 kHz |
|---|
| Transducer Power Rating (AES) | LF: 1600 W (6400 W peak), 2 hrs. 1200 W (4800 W peak), 100 hrs MF: 350 W (1400 W peak), 100 hrs HF: 75 W (300 W peak), 2 hrs |
|---|
| System Power Rating | LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs |
|---|
| Maximum SPL (1m) | Tri-amp mode: LF: 128 dB-SPL cont avg (134 dB peak) MF: 137 dB-SPL cont avg (143 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 136 dB-SPL cont avg (142 dB peak) |
|---|
| System Sensitivity (1w @ 1m) | Passive Mode: 111 dB-SPL (mid/high section only) |
|---|
| LF Driver | 2 x 2206H 300 mm (12 in) driver with 100 mm (4 in) voice coil |
|---|
| MF Driver | CMCD-82H cone midrange compression driver with integral 200 mm (8 in) diameter Differential Drive dual 75 mm (3 in) voice coil driver |
|---|
| HF Driver | 2432H, 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil |
|---|
| Enclosure | Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood. |
|---|
| Suspension Attachment | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
|---|
| Finish | Black DuraFlex finish. White (-WH) available upon request. |
|---|
